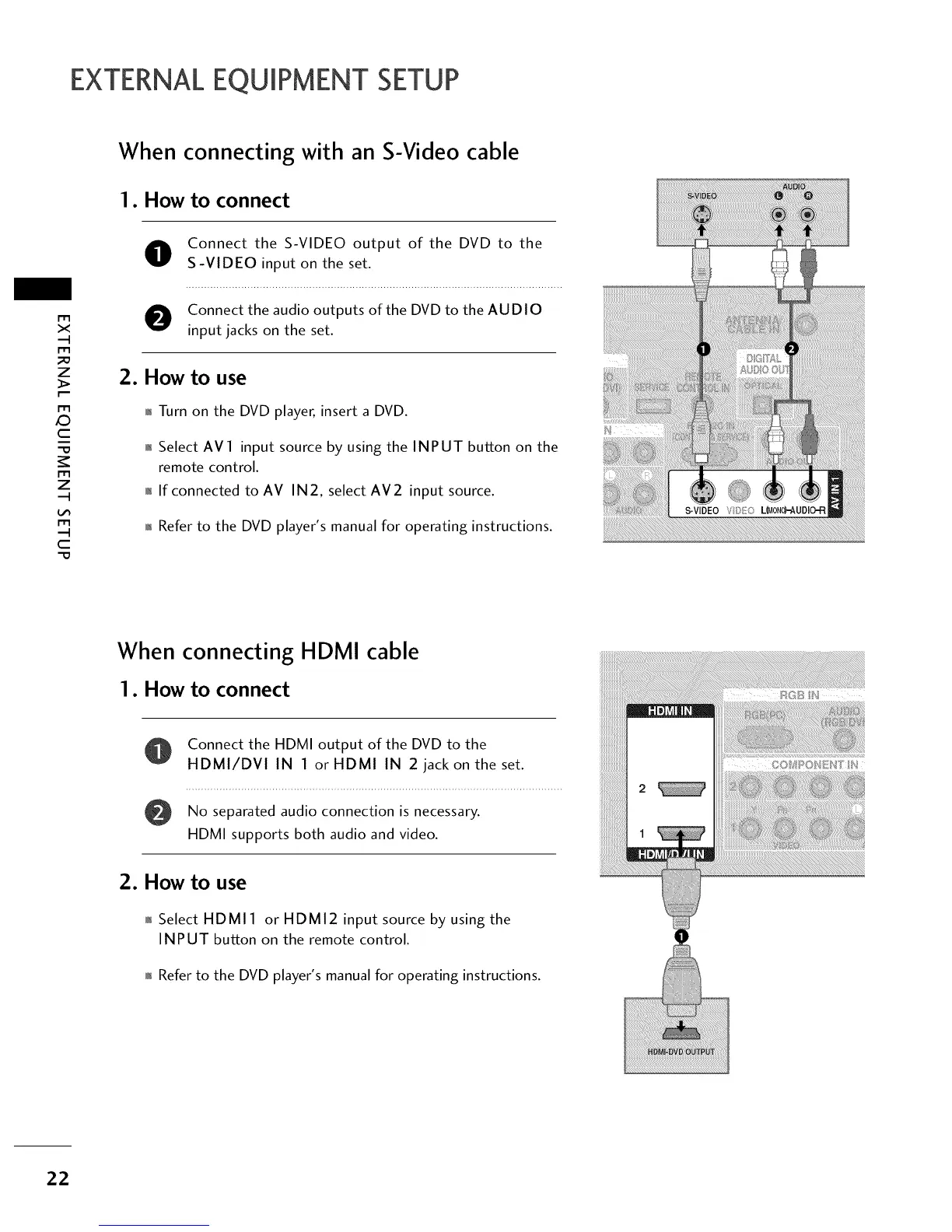

EXTERNALEQUIPMENT SETUP
When connecting with
1. How to connect
an S-Video cable
x
_o
z
_>
XD
c
"O
z
r-r1
c
"O
O onnect the S-VIDEO output of the DVD to the
S-VIDEO input on the set.
O onnect the audio outputs of the DVD to the AUDIO
input jacks on the set.
2. How to use
01_Turn on the DVD player, insert a DVD.
01_Select AV1 input source by using the INPUT button on the
remote control.
01_If connected to AV IN2, select AV2 input source.
01_Refer to the DVD player's manual for operating instructions.
When connecting HDMI cable
1. How to connect
@
Connect the HDMI output of the DVD to the
HDMI/DVI IN 1 or HDMI IN 2 jack on the set.
No separated audio connection is necessary.
HDMI supports both audio and video.
2. How to use
01_Select HDMI1 or HDMI2 input source by using the
INPUT button on the remote control.
01_Refer to the DVD player's manual for operating instructions.
22
