EXTERNALEQUIPMENT SETUP
m
x
m
_o
z
m
XD
c
m
z
m
c
-0

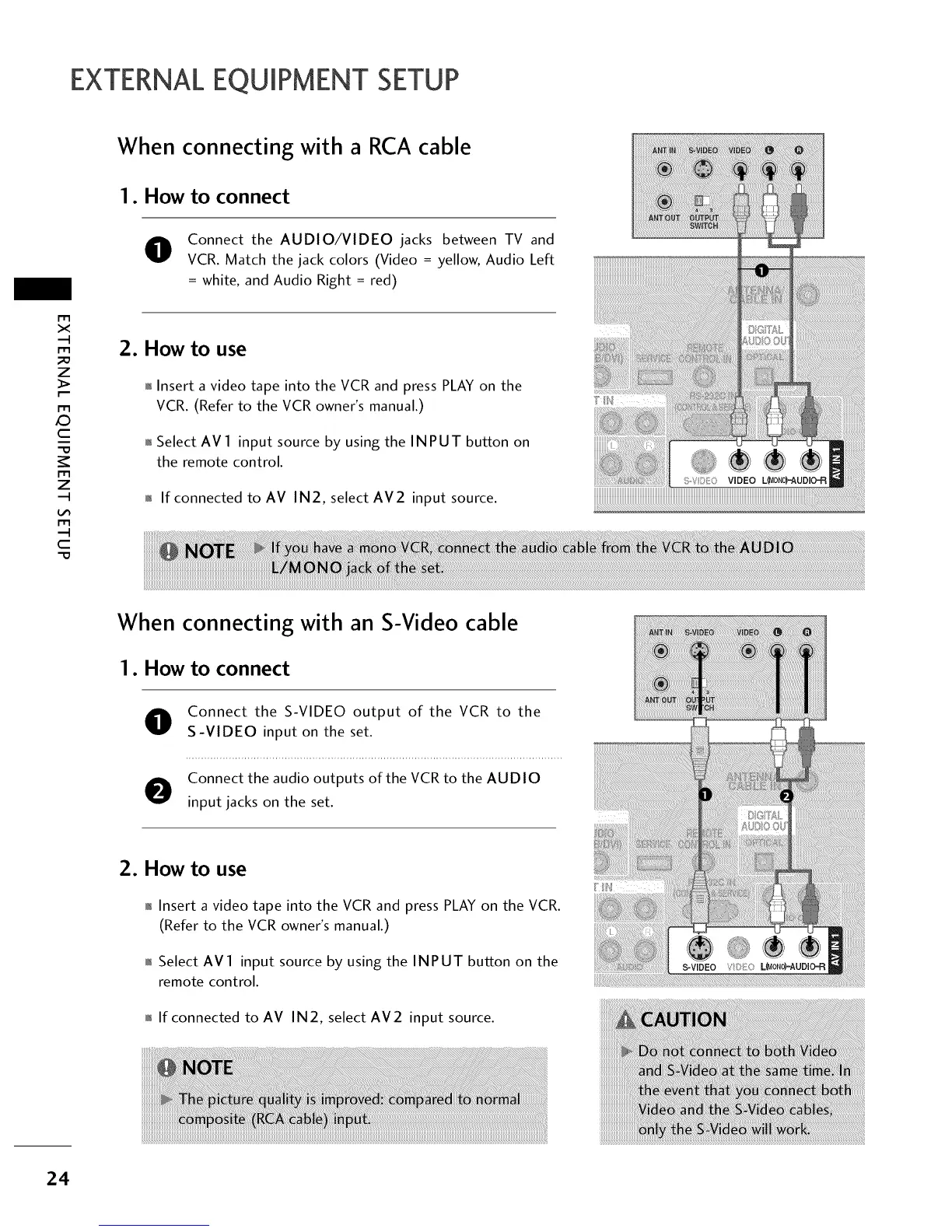

When connecting with a RCA cable
1. How to connect
O Connect the AUDIO/VIDEO jacks between TV and
VCR. Match the jack colors (Video = yellow, Audio Left
= white, and Audio Right = red)
2. How to use
01_Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner's manual.)
01_Select AV 1 input source by using the INPUT button on
the remote control.
01_If connected to AV IN2, select AV2 input source.
When connecting with an S-Video cable
1. How to connect
Connect the S-VIDEO output of the VCR to the
S-VIDEO input on the set.
Connect the audio outputs of the VCR to the AUDIO
input jacks on the set.
2. How to use
01_Insert a video tape into the VCR and press PLAY on the VCR.
(Refer to the VCR owner's manual.)
01_Select AV1 input source by using the INPUT button on the
remote control.
01_If connected to AM IN2, select AM2 input source.
