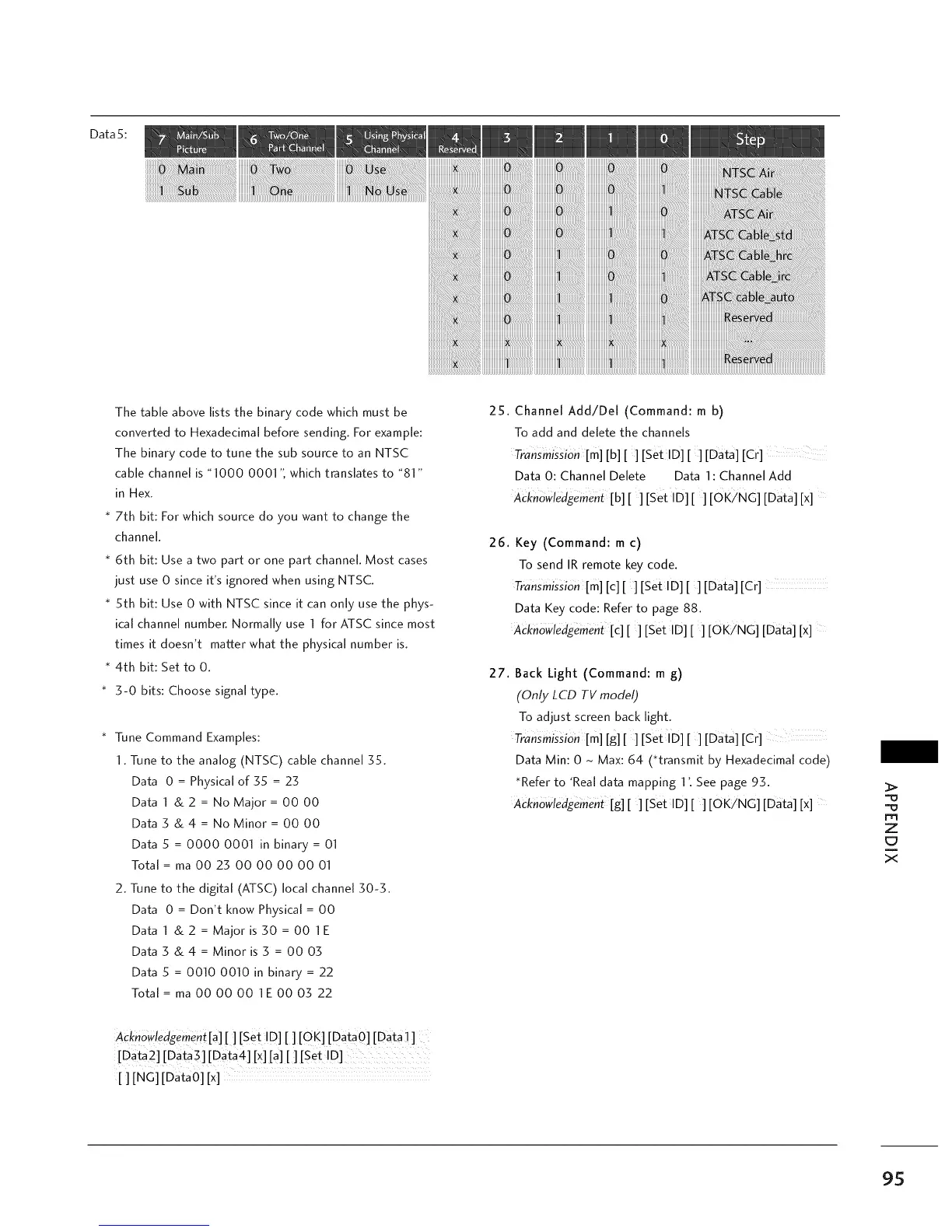

Data 5:
The table above lists the binary code which must be
converted to Hexadecimal before sending. For example:
The binary code to tune the sub source to an NTSC
cable channel is "1000 0001 ", which translates to "81"
in Hex.
* 7th bit: For which source do you want to change the
channel.
* 6th bit: Use a two part or one part channel. Most cases
just use 0 since it's ignored when using NTSC.
* 5th bit: Use 0 with NTSC since it can only use the phys-
ical channel number. Normally use 1 for ATSC since most
times it doesn't matter what the physical number is.
* 4th bit: Set to 0.
* 3-0 bits: Choose signal type.
* Tune Command Examples:
1. Tune to the analog (NTSC) cable channel 35.
Data 0= Physical of 35 = 25
Data 1 & 2 = No Major = 00 00
Data 3 & 4 = No Minor = 00 00
Data 5 = 0000 0001 in binary = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital (ATSC) local channel 30-3.
Data 0 = Don't know Physical = 00
Data 1 &2 = Major is 30 = 00 1E
Data 3 &4 = Minor is3 = 00 03
Data 5 = 0010 0010 in binary = 22
Total = ma 00 00 00 1E 00 03 22
Acknow!edgemeni [a][ ][set ID][] [O K] [DataO] [Data]]
[Data2] [Data3] [Data4] ix] [a] [] [Set ID] ................
[ ] [NG] [DataO] ix]
25. Channel Add/Del (Command: m b)
To add and delete the channels
Transmission [m] [b][] [Set ID] [ ] [Data] [Cr]
Data 0: Channel Delete Data I: Channel Add
Acknowledgemen_ [b][ ][Set ID][ ][OK/NG] [Data] ix]
26. Key (Command: m c)
To send IR remote key code.
Transmission [m] [c][] [Set ID] [] [Data] [Cr]
Data Key code: Refer to page 88.
AcknowledgemenL [c][ ][Set ID][ ][OK/NG] [Data] [x]
27. Back Light (Command: m g)
(Only LCD TV model)
To adjust screen back light.
Transmission [m] [g] [ ] [Set ID] [ ] [Data] [Cr]
Data Min: 0 - Max: 64 (*transmit by Hexadecimal code)
*Refer to 'Real data mapping 1'. See page 93.
Acknowledgemen_ [g] [ ] [Set ID] [ ][OK/NG] [Data] ix]
rtl
Z
X
95
