LG 42PJ350C Training Manual

119
August 2010 42PJ350 Plasma

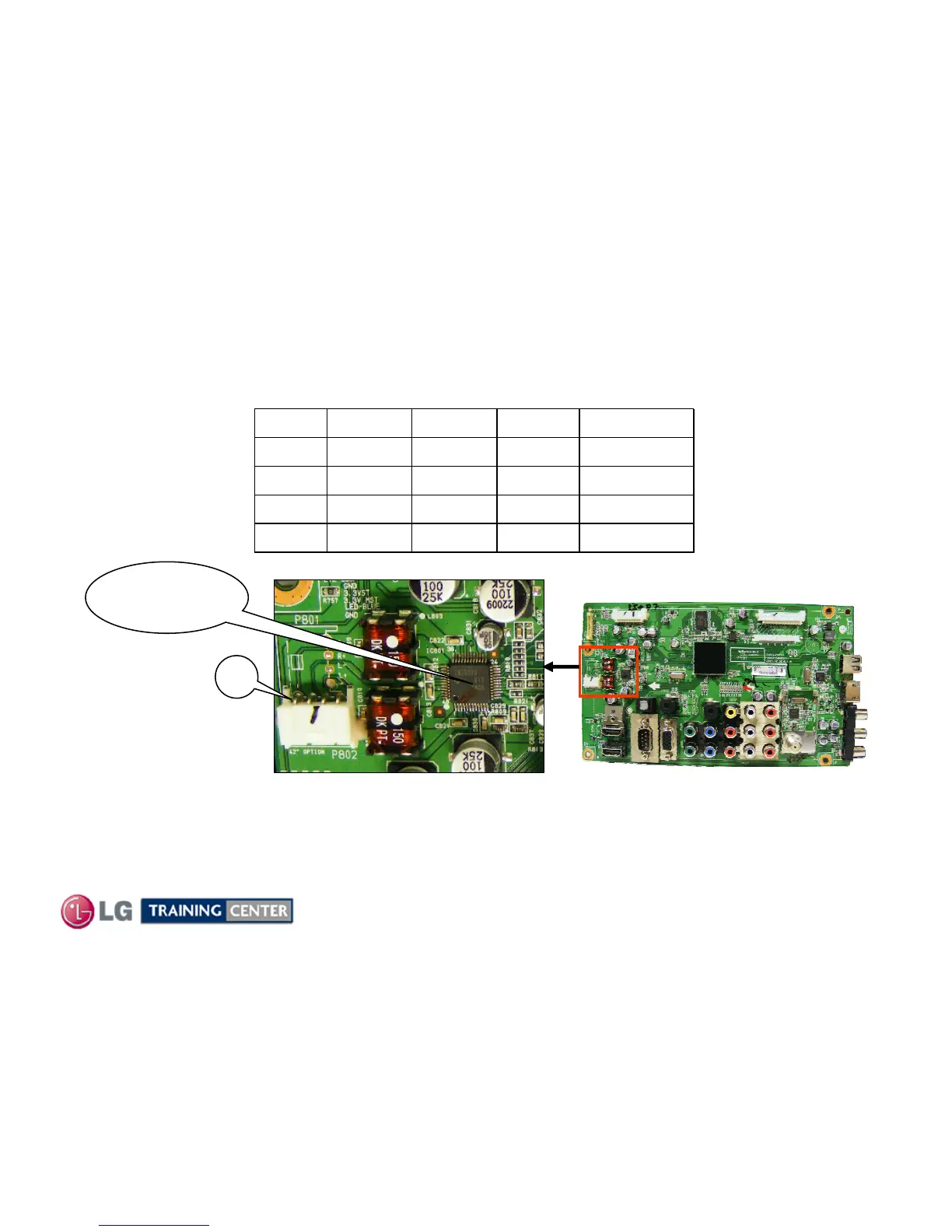

Voltage and Diode Mode Measurements for the Main Board Speaker Plug
Main Board Speaker Plug P802 Voltage and Diode Check
Main Board Speaker Plug P802 Voltage and Diode Check
P802
Speaker
Connector
Diode Mode Check with the Board Disconnected. DVM in the Diode mode.
L+
L-
R+
R-
Label
Open8.39V0V4
Open8.39V0V3
Open8.39V0V2
Open8.39V0V1
Diode ModeRunSBYPin
Main Board Location
P802 Connector "Main" to "Speakers"
Right (-)
Right (+)
Left (-)
Left (+)
1
1
IC801
IC801
Audio Amp
Audio Amp
