LG 42PJ350C Training Manual

86
August 2010 42PJ350 Plasma
Locking on to the Y
Locking on to the Y
-
-
Drive or Z
Drive or Z
-
-
Drive Waveform Tip
Drive Waveform Tip

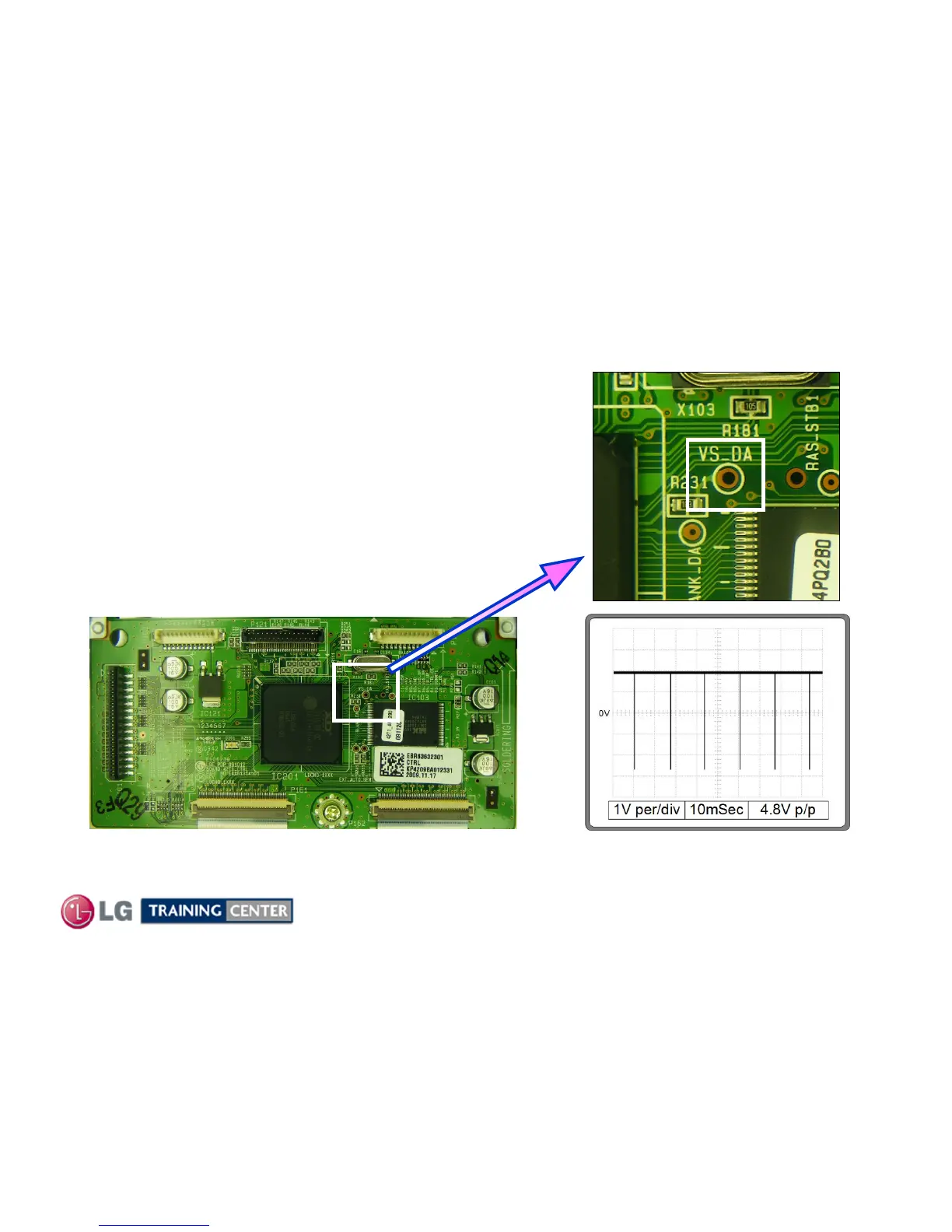

Note, this TP (VS_DA) can be used as an
External Trigger for scope when locking onto
the Y-Drive (Scan) or the Z-Drive signal.
This signal can also be used
to help lock the scope when observing
the LVDS video signals.
