Preliminary Information 42PQ30

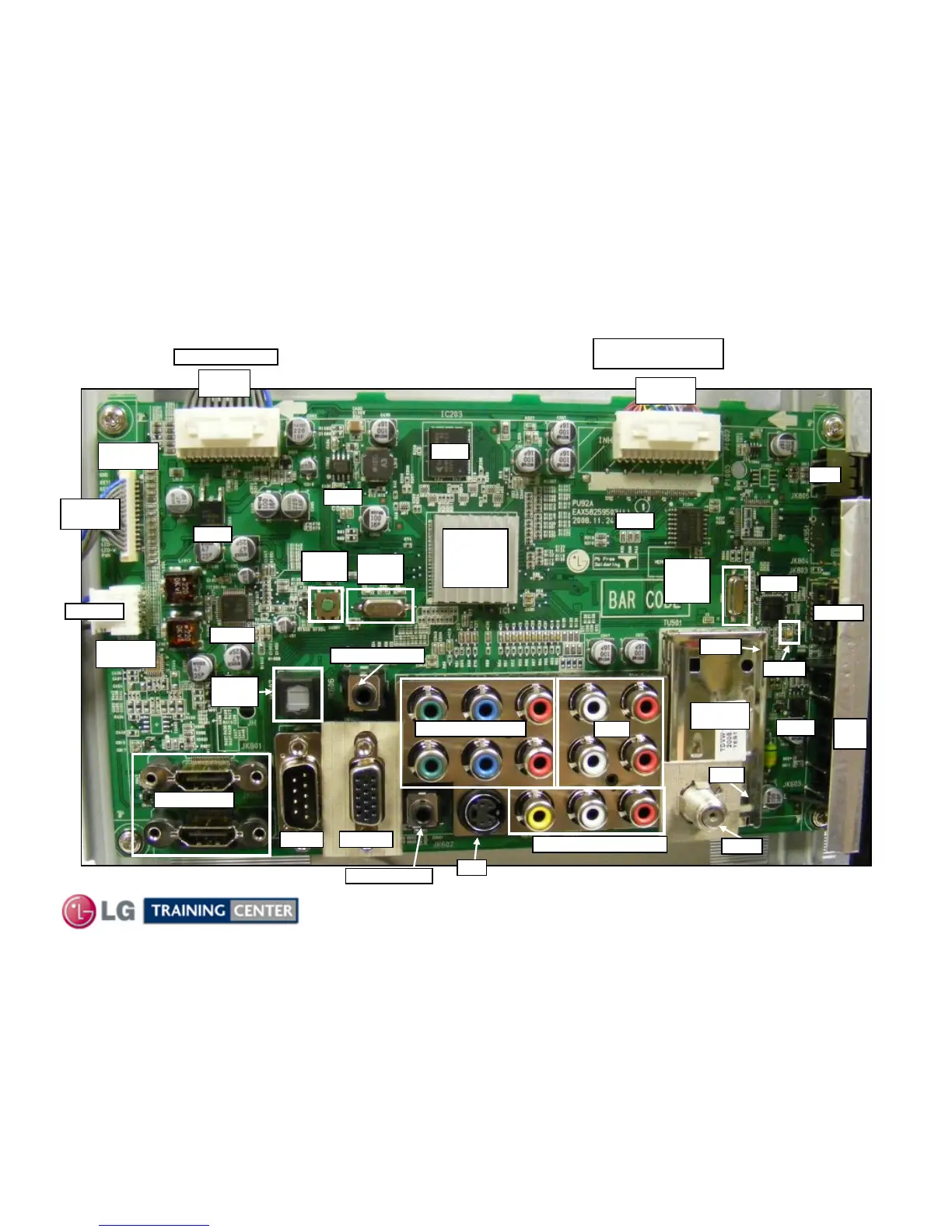

Main Board Layout and Identification
Main Board Layout and Identification
Tuner
IC1
Micro /
Video
Processor
Component inputs
LVDS (Video)
To Control Board
RGB/PC
P301
P1001
P1005
AV
In 3
To Power Supply
HDMI inputs
RS232
SPK Out
To Front
Controls
Tuner
X501
25 Mhz
X1
12 Mhz
Audio
Audio RGB/DVI
Reset
SW100
USB
HDMI 3
Wired Remote
A/V Composite inputs
P1002
Pin 1
Pin 19
IC503
IC302
IC203
IC204
IC1001
IC805
IC504
RF IN
S-In
Optical
Audio
LD501
