Preliminary Information 42PQ30
MAIN Board

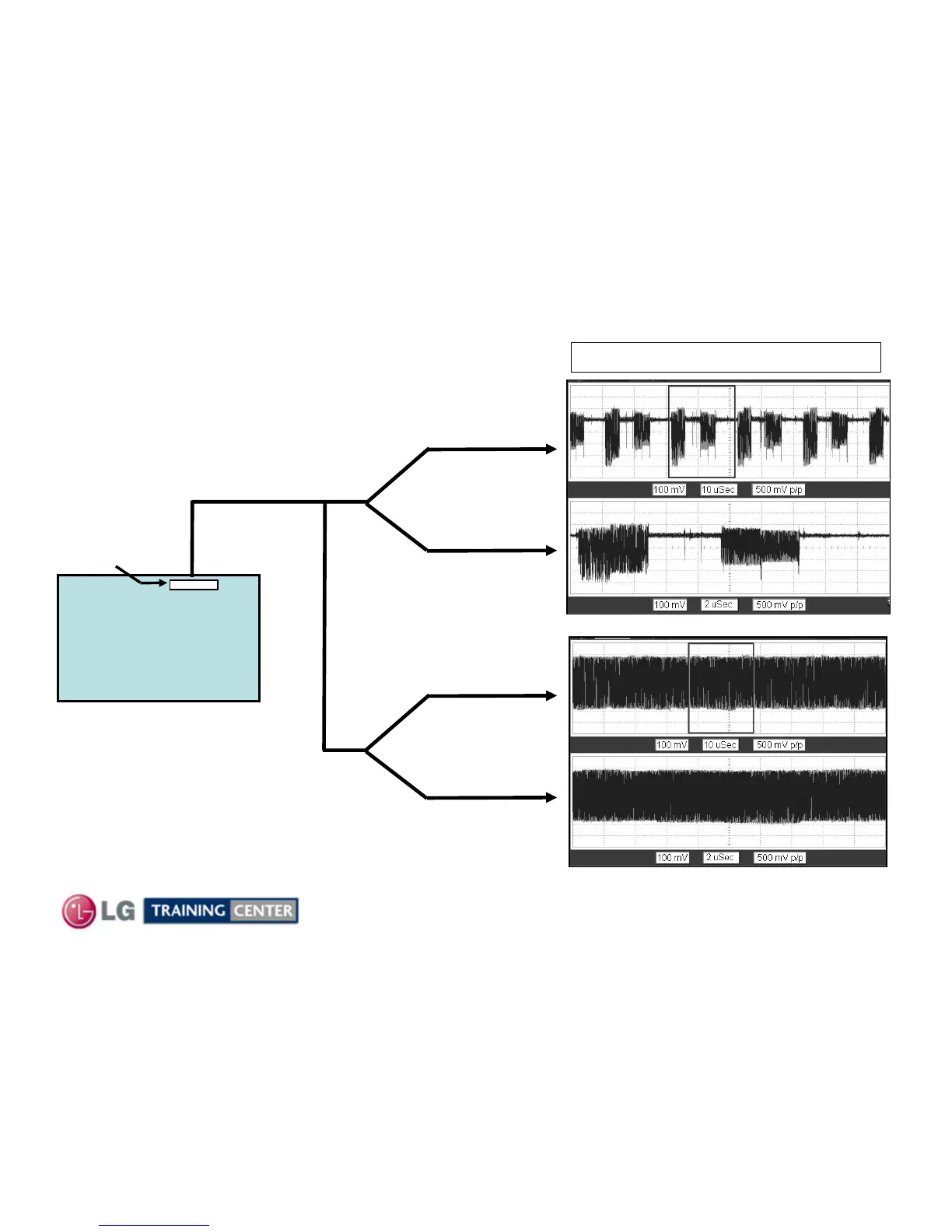

Main Board P1002 LVDS Video Signal Check
Main Board P1002 LVDS Video Signal Check
P1002 Location
Pin 11
10uSec per/Div
Pin 18
10uSec per/Div
USING GRAY SCALE SIGNAL INPUT
700mVp/p
Pin 1
Pin 11
2uSec per/Div
Pin 18
2uSec per/Div
