Standard Repair Process Detail Technical Manual
Power Board voltage measuring method
A. Video error_No video/ Audio
A5
Established
date
Revised
date
Error
symptom
Content

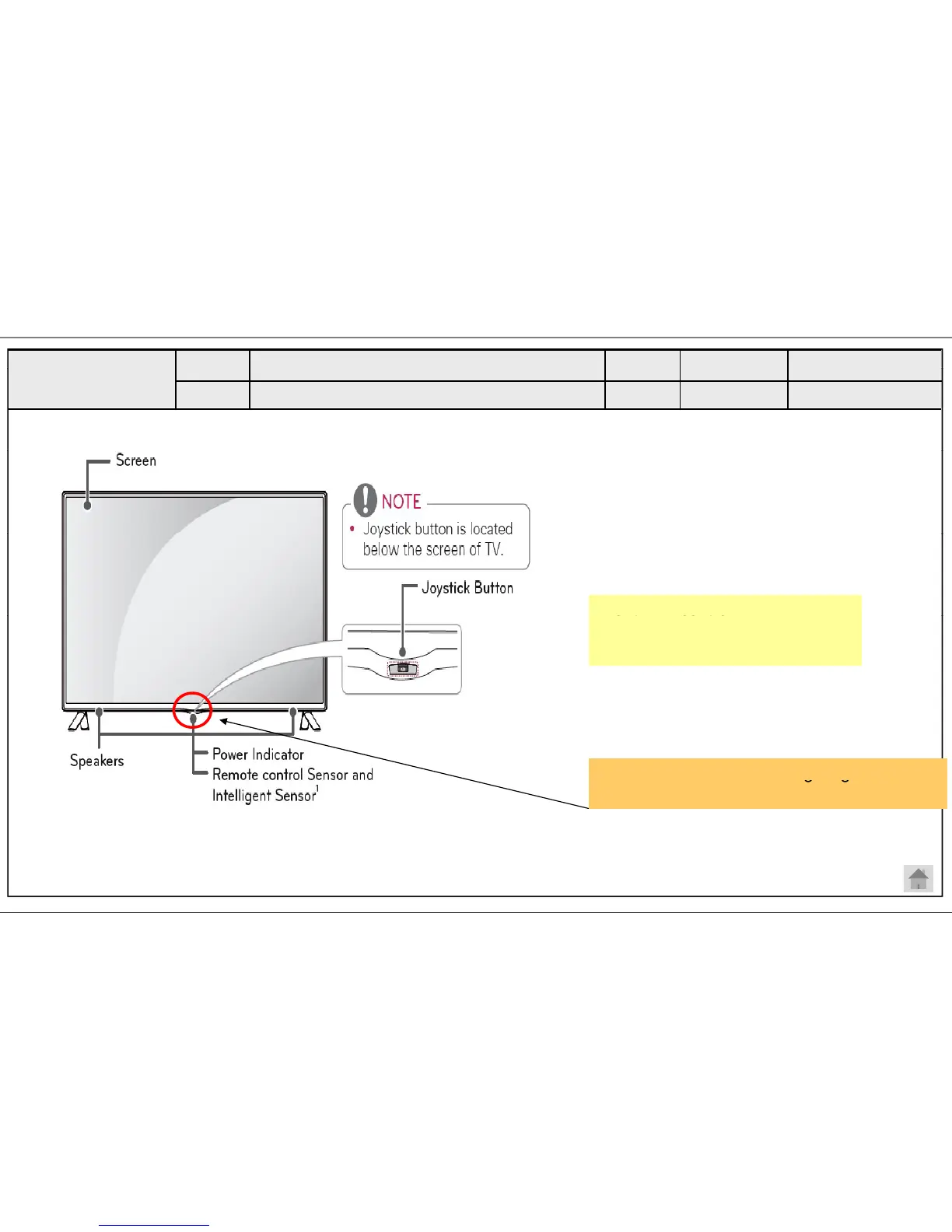

LCD TV
Check the DC 24V, 12V, 3.5V.
18 Pin (Power Board ↔ Main Board)
1
Power on
2
DRV-ON
3
3.5V
4
P-DIM1
5
3.5V
6
3.5V
7
GND
8
P-DIM2
9
24V
10
24V
11 GND 12 GND
13 12V 14 12V
15 12V 16
N.C
17 GND 18 GND
2013. 12 .06
