LG 47LB5800 - Adjustment Instruction; Application; Final Assembly Adjustment

- 9 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

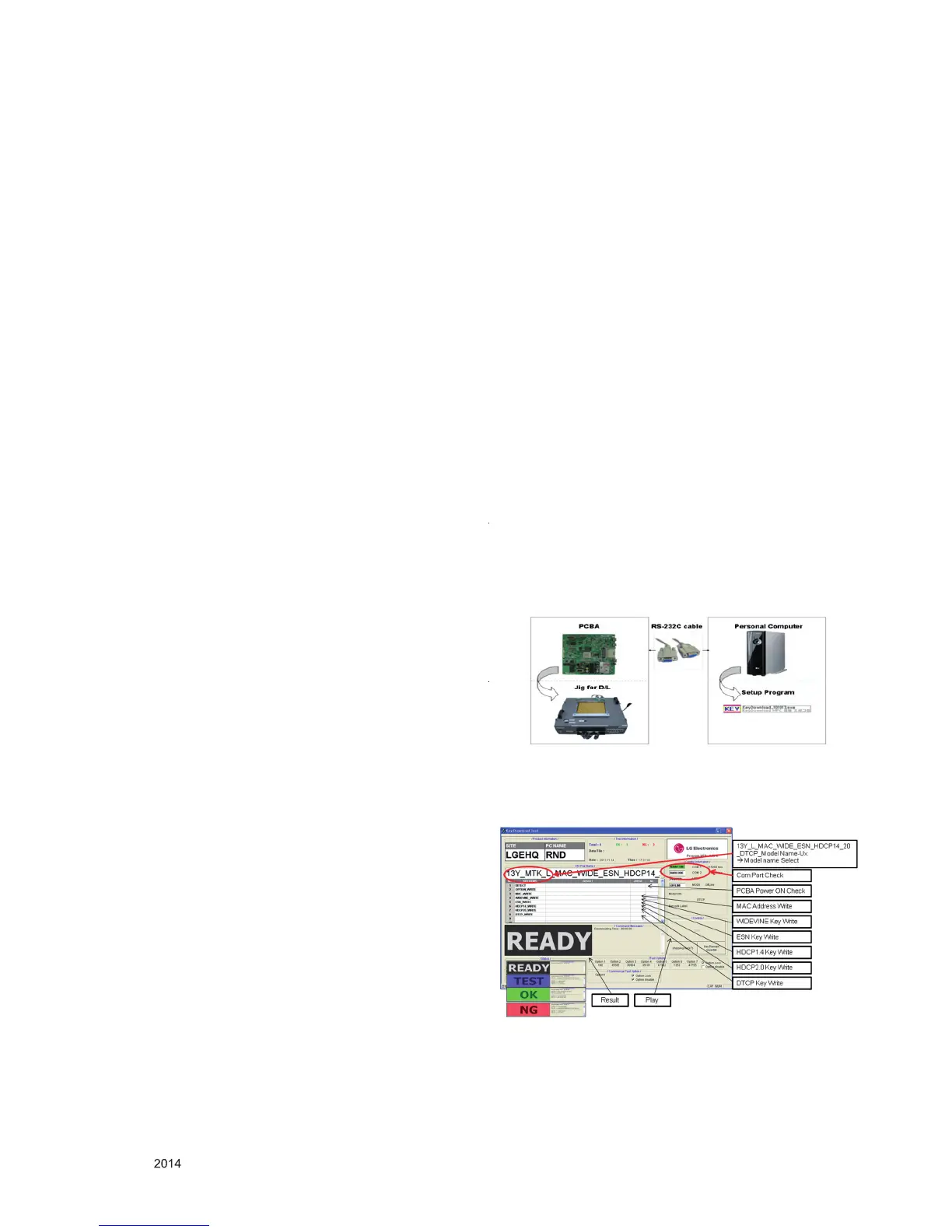

3.2.4. HDCP 1.4/2.0 Inspection
- Confirm Key input Data at the “IN START” MENU Mode.
3.2.5. ESN Inspection
- Confirm Key input Data at the “IN START” MENU Mode.
3.2.6. WIDEVINE Key Inspection
▪ WIDEVINE Key Inspection
- Confirm Key input Data at the “IN START” MENU Mode
3.3. LAN PORT INSPECTION(PING TEST)
Connect SET → LAN port == PC → LAN Port
3.3.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2
3.3.2. LAN PORT inspection(PING TEST)
(1) Play the LAN Port Test Program.
(2) Connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message.
(4) Remove LAN cable.
3.4. ADC Adjust
=> No need at Assembly line because of OPT type
* OTP mode
Automatic ADC Calibration. (Internal ADC Calibration) On the
manufacture line, OTP is used for ADC Calibration
automatically.
* External mode
Manual ADC Calibration. When OTP mode is failed, ADC
calibration should be “OK” by using External mode.
- if you want re-adjust for ADC.
■ Enter Service Mode by pushing “ADJ” key,
■ Enter External ADC mode by pushing “►” key at “9. ADC
Calibration”
SET PC
EZ ADJUST
0. Tool Option1
1. Tool Option2
2. Tool Option3
3. Tool Option4
4. Tool Option5
5. Tool Option6
6. Tool Option7
7. Country Group
8. Area Option
9.ADC Calibration ►
10. White Balance
11. 10 Point WB
12. 20 Point WB
13. Test Pattern
14. Sub B/C
15. Ext. Input Adjust
ADC Calibration
ADC Comp 480i
ADC Type ◄ ►
OK
Start
OTP
Reset
