Daisy Chain Monitors
Use this function to share the RGB video signal with other monitors without having to use a separate signal
splitter box.

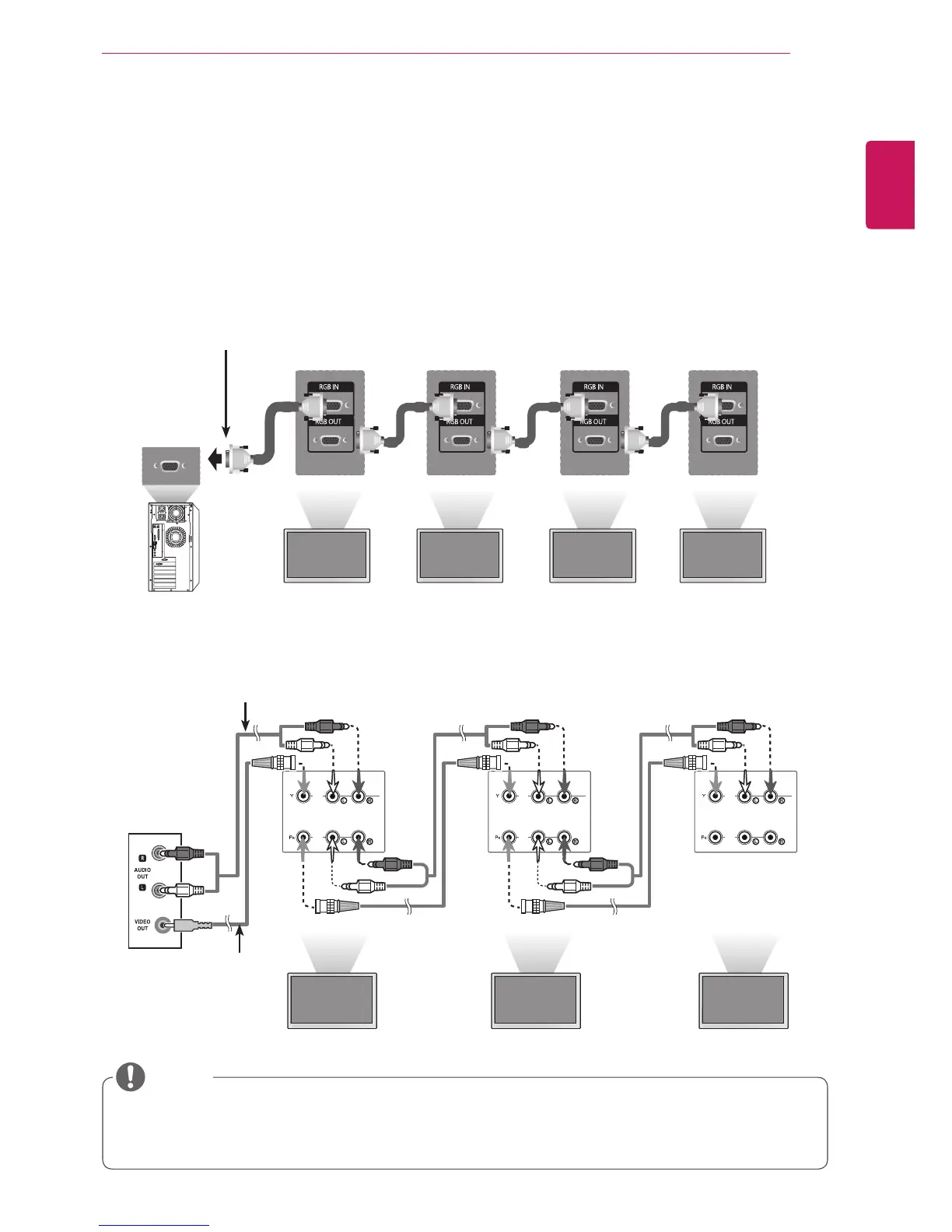

• To use different products connected to each other Connect one end of the signal input cable (15-pin
D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN
connector of other products
AV(CVBS) Mode
RGB Mode
15-pin D-Sub Signal Cable
(Max 3m)
Audio Cable
(Not included)
Product 1
Product 1
Product 2
Product 2
Product 3
Product 3
Product 4
BNC Cable
(Not included)
y
When multi-connecting in/out cascade format, no loss cables are recommended.
y
We recommend that you should use cable distributor.
