STANDARD WALL-MOUNTED
$FRXVWLF'DWD
6RXQG3UHVVXUH/HYHOV
• Measurements are taken 3.3 ft away from the front of the unit.
• Sound pressure levels are measured in dB(A) with a tolerance of ±3.
• Sound pressure levels are tested in an anechoic chamber under ISO Standard 3745.
Operating Conditions:
• Power source: 220V/60 Hz
• Sound level will vary depending on a range of factors including the construction
(acoustic absorption coefficient) of a particular room in which the unit was installed.

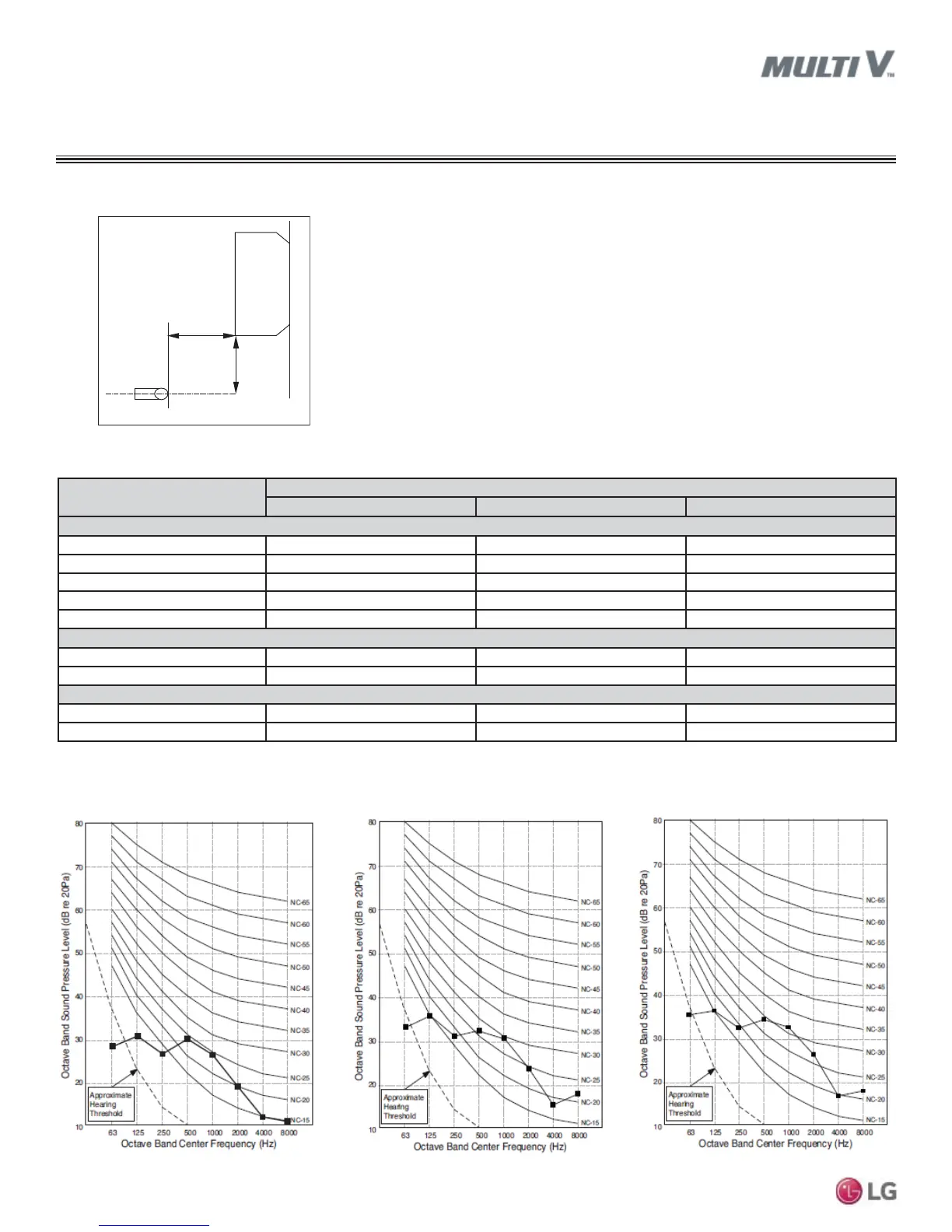

Figure 34: Sound Pressure Measurement Location.
Model
Sound Pressure Levels dB(A)
High Fan Speed Medium Fan Speed Low Fan Speed
6%)UDPHV
ARNU053SBL4 30.0 29.0 28.0
ARNU073SBL4 32.0 30.0 28.0
ARNU093SBL4 34.0 31.0 30.0
ARNU123SBL4 40.0 34.0 31.0
ARNU153SBL4 42.0 40.0 34.0
6&)UDPHV
ARNU183SCL4 40.0 35.0 31.0
ARNU243SCL4 45.0 40.0 35.0
69)UDPHV
ARNU303SVA4 49.0 44.0 42.0
ARNU363SVA4 52.0 47.0 43.0
Table 29: Standard Wall-Mounted Sound Pressure Levels.
Figure 35: ARNU053SBL4, ARNU073SBL4, and ARNU093SBL4 Sound Pressure Level Diagrams.
ARNU053SBL4 ARNU073SBL4 ARNU093SBL4
3.3 ft.
3.3 ft.
Microphone
