Refrigerant Piping System Installation for Heat Pump Operation
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

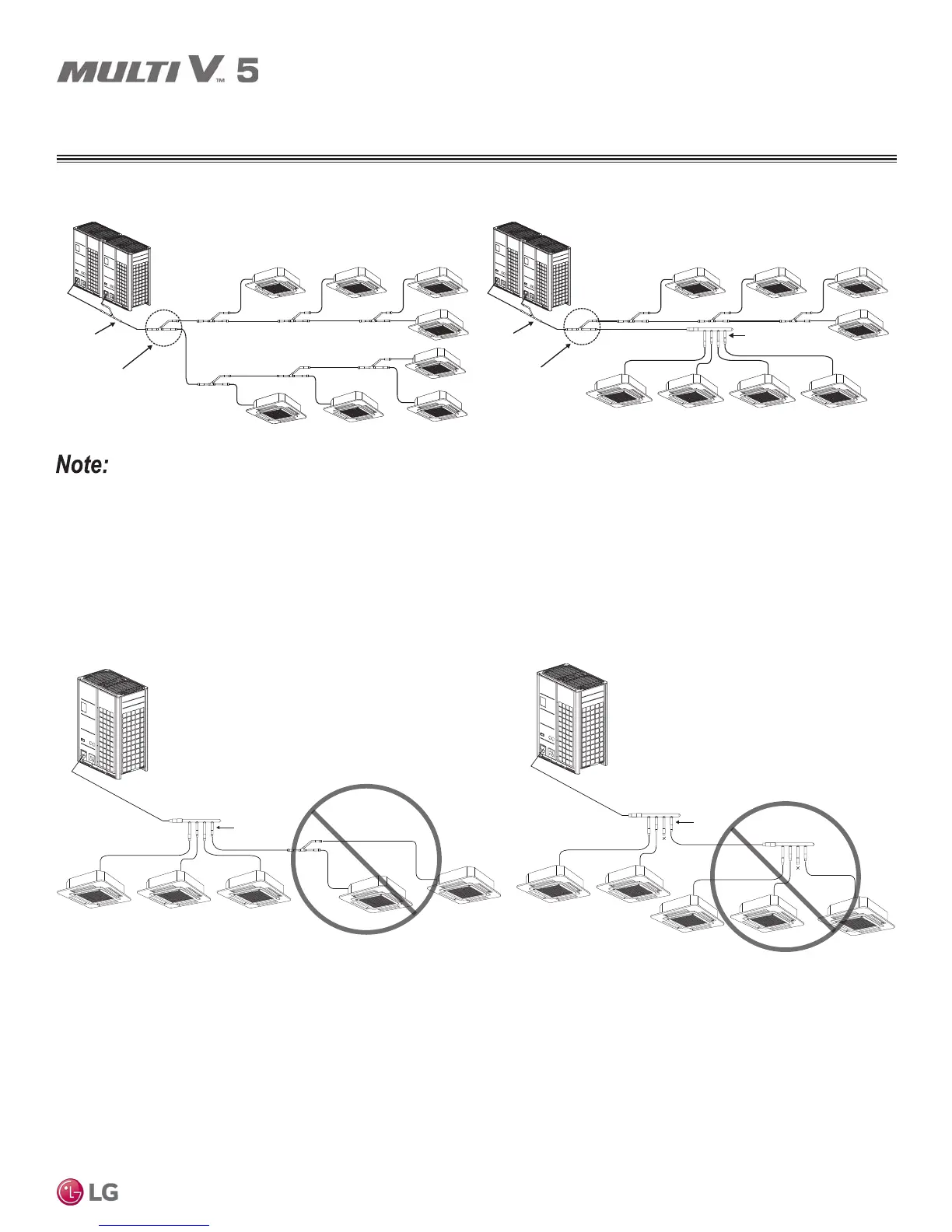

Incorrect Layouts
A second branch cannot be made after a header.
INSTALLING FOR HEAT PUMP
OPERATION
Sample Layouts
Header
Slave
Master
First Indoor Unit
Y-Branch
Outdoor Unit
Y-Branch
Slave
Master
Outdoor Unit
Y-Branch
First Indoor Unit
Y-Branch
Header
Outdoor Unit
Header
Outdoor Unit
Images are for illustrative purposes only and are not accurate representations. For specic details on piping limitations and other refrigerant system
rules, review the information in this entire piping section, see the Multi V 5 Engineering Manual, and follow the LATS diagram.
