46 2008 Product Data

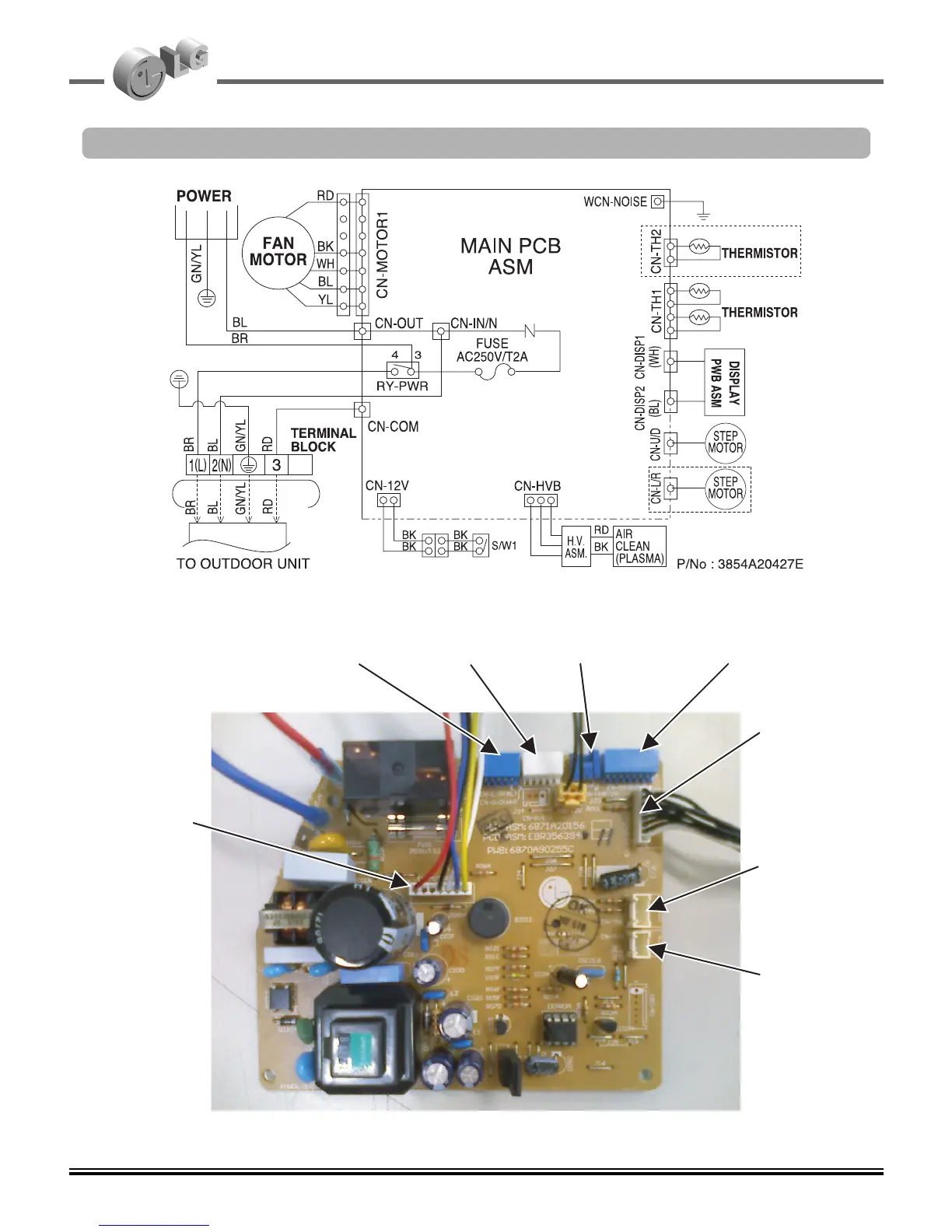

6. Wiring diagrams Indoor Unit
Models: AS-W1865DH2
CN_TH1
CN_TH2
CN_HVB(BL) CN_DISP2(BL)CN_U/D(WH)CN_L/R(BL)
CN_DISP1(WH)
CN_MOTOR1
