LG AS-W096E1G0 - Air Flow & Temperature Distribution; General Wall Mounted Airflow Patterns; ART COOL Airflow Patterns

2008 Product Data 79

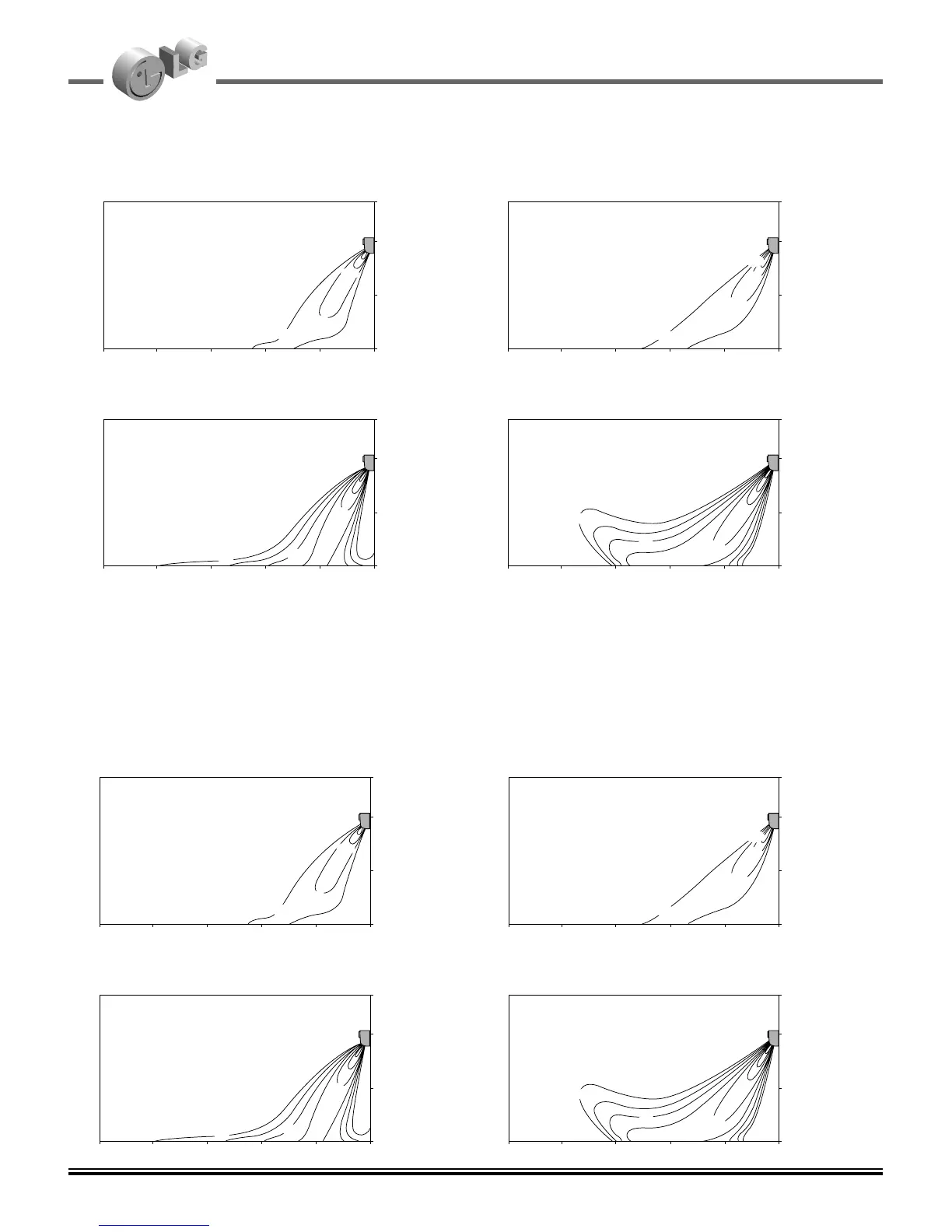

11. Air flow and temperature distributions(reference data)
General Wall Mouted 9kBtu/h
Air velocity [m/s]
2.7m
2m
1m
0m
0m
1m2m3m4m5m
Temperature [˚C]
2.7m
2m
1m
0m
0m
1m2m3m4m5m
0.75
1.0
0.5
25
24
23
Air velocity [m/s]
2.7m
2m
1m
0m
0m
1m2m3m4m5m
Temperature [˚C]
2.7m
2m
1m
0m
0m
1m2m3m4m5m
0.75
1.0
1.2
0.5
28
29
30
Cooling
Discharge angle:45°
Heating
Discharge angle:50°
ART COOL Deluxe 9kBtu/h
Air velocity [m/s]
2.7m
2m
1m
0m
0m
1m2m3m4m5m
Temperature [˚C]
2.7m
2m
1m
0m
0m
1m2m3m4m5m
0.75
1.0
0.5
25
24
23
Air velocity [m/s]
2.7m
2m
1m
0m
0m
1m2m3m4m5m
Temperature [˚C]
2.7m
2m
1m
0m
0m
1m2m3m4m5m
0.75
1.0
1.2
0.5
28
29
30
Cooling
Discharge angle:45°
Heating
Discharge angle:50°
