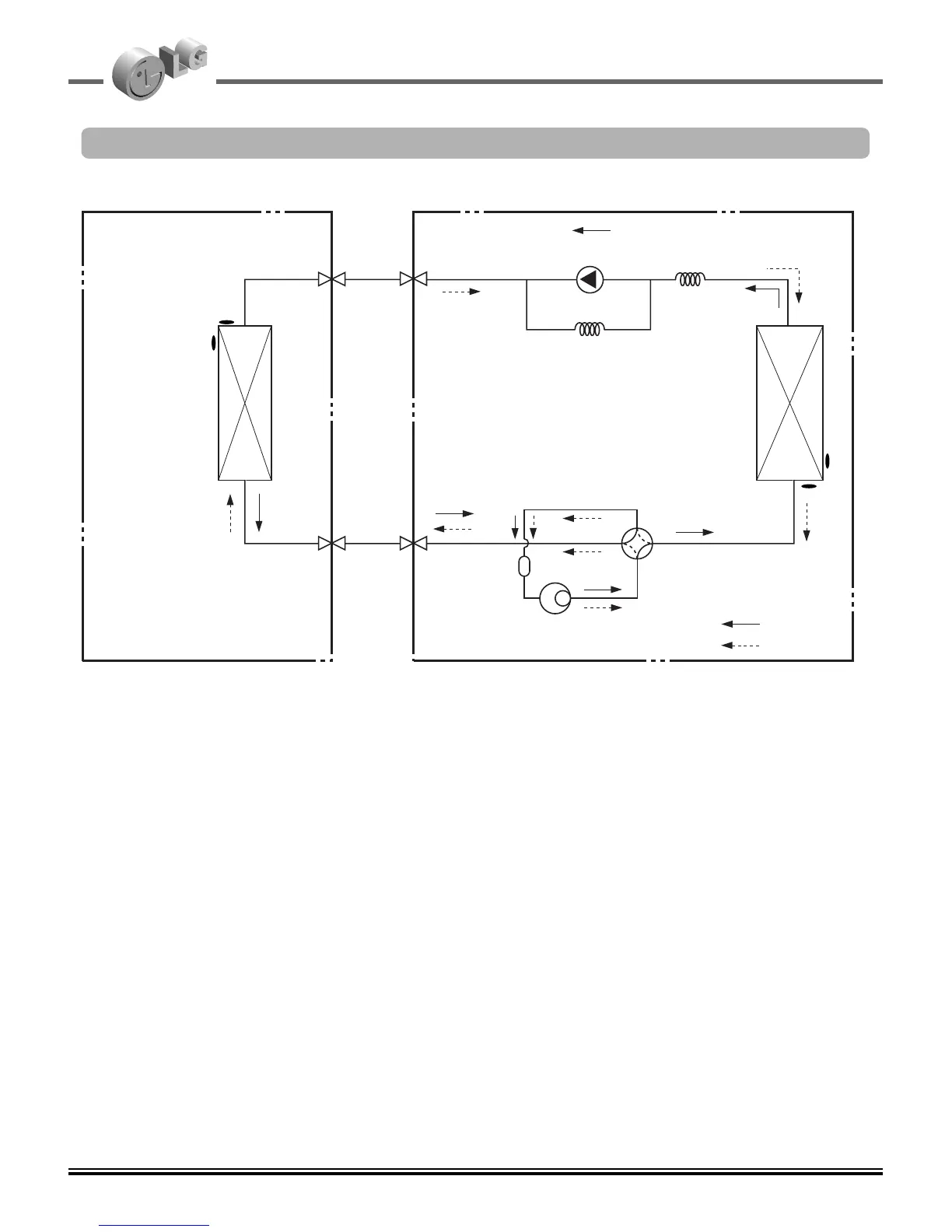

7. Refrigerant cycle diagram
Model No :
AS-W096U*H1, AS-W126U*H1, AS-W1865GG1, AS-W1863*H3, AS-W2463*H3
Indoor Unit Outdoor Unit
Heat
Exchanger
(Evaporator)
Heat
Exchanger
(Condenser)
Compressor
Accumulator
Gas Side
3-Way Valve
3-Way Valve
Liquid Side
Cooling
Heating
Reversing Valve
CHECK VALVE
CAPILLARY TUBE
Th1
Th2
Th3
Th4
N.B. : -
Th1 = Thermistor foor sansing indoor air temperature.
Th2 = Thermistor for sensing evaporating temperature.
Th3 = Thermistor foor sansing outdoor air temperature.
Th4 = Thermistor foor sansing evaporating temperature.
