2008 Product Data 49

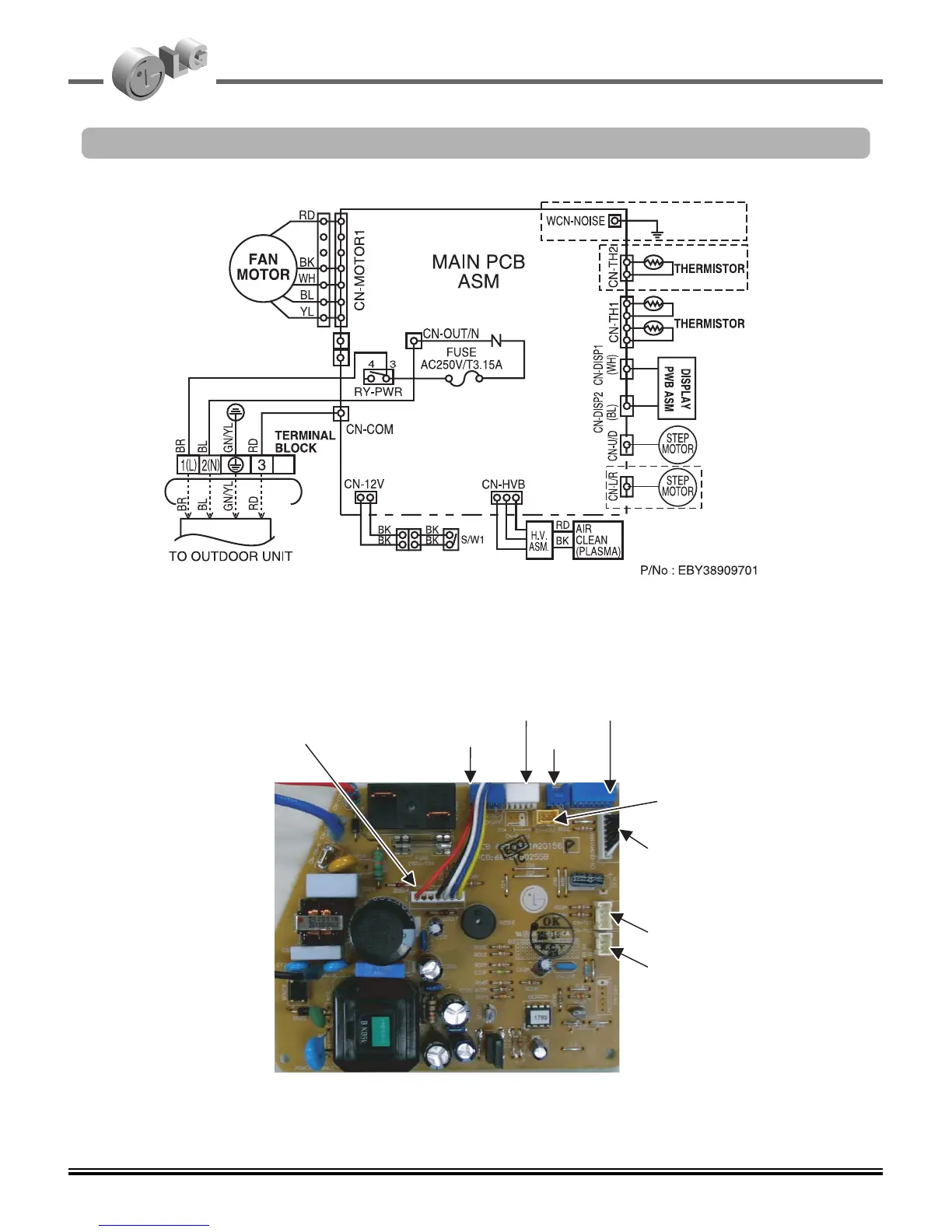

6. Wiring diagrams Indoor Unit
Models:AS-W306DGM0,AS-W366DGM0
CN-MOTOR1
CN-L/R(BL)
CN-TH1
CN-DISP1(WH)
CN-DISP2(BL)
CN-HVB
CN-U/D(WH)
CN-12V
CN-TH2
