2008 Product Data 77

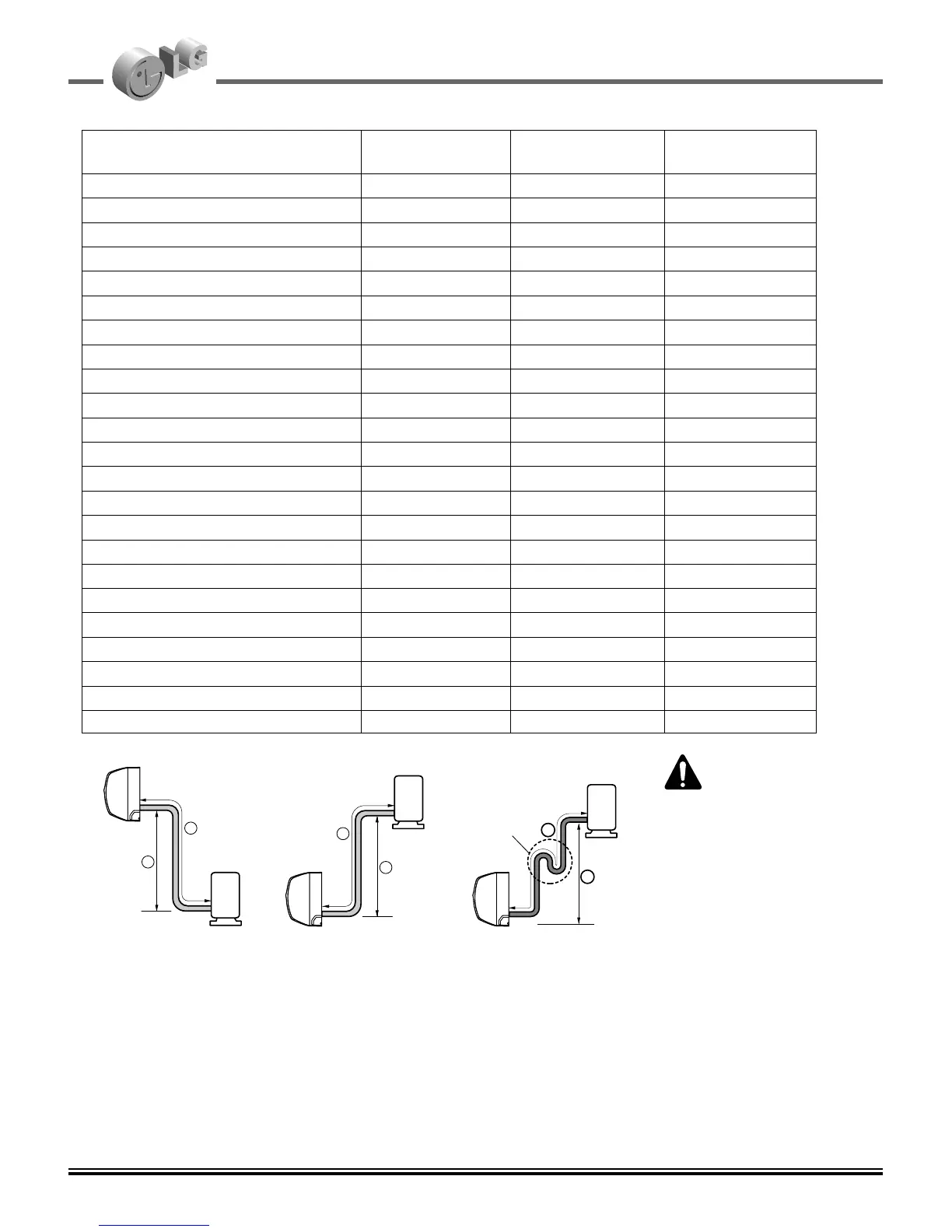

9. Capacity coefficient factor
Notes
❈ Equivalent pipe length = actual pipe length + number of band x 0.3
❈ Additional Refrigerant Charge
Example: For Model No. AS-W126ADR0 having 15m pipe length, additional refrigerant to be charged is
(15-7) x 20 = 160g
* Refer to the specification for the maximum pipe length of each model.
* 18k S5/S8 Chassis total piping length is 15m.
AS-W096ADR0 15 7 20(0.22)
AS-W0964GG1 15 7 20(0.22)
AS-W096E*H2 15 7 20(0.22)
AS-W096E1G0 15 7 20(0.22)
AS-W096F*G2 15 7 20(0.22)
AS-W096F1G2 15 7 20(0.22)
AS-W096U*H1 15 7 20(0.22)
AS-W126ADR0 15 7 20(0.22)
AS-W1264GG1 15 7 20(0.22)
AS-W126E*H2 15 7 20(0.22)
AS-W126E1G0 15 7 20(0.22)
AS-W126F*G2 15 7 20(0.22)
AS-W126F1G2 15 7 20(0.22)
AS-W126U*H1 15 7 20(0.22)
AS-W1863*H3 15 7 20(0.22)
AS-W1865DH2 15 7 20(0.22)
AS-W1865GG1 15 7 20(0.22)
AS-W1868*H1 15 7 20(0.22)
AS-W2463*H3 30 15 30(0.32)
AS-W2465DH2 30 15 30(0.32)
AS-W2468*H1 30 15 30(0.32)
AS-W306DGM0 50 30 30(0.32)
AS-W366DGM0 50 30 35(0.37)
Model No.
Max. Pipe
Length(m)
Max. Elevation
(m)
Additional
Refrigerant[g/m(oz/ft)]
CAUTION:
•
Capacity is based on
standard length and
maximum allowance
length is on the basis
of reliability.
• Oil trap should be
installed every 5~7
meters.
To Next Page
