13. Remote controller
Cooling Operation
Auto Operation or Auto Changeover
Healthy Dehumidification Operation
Heating Operation
Air Circulation
Signal transmitter
•
Cooling Model( ), Heat Pump Model( )
Operation Mode
1
4
18
7
16
9
13
8
5
17
2
10
14
8
12
11
15
3
6

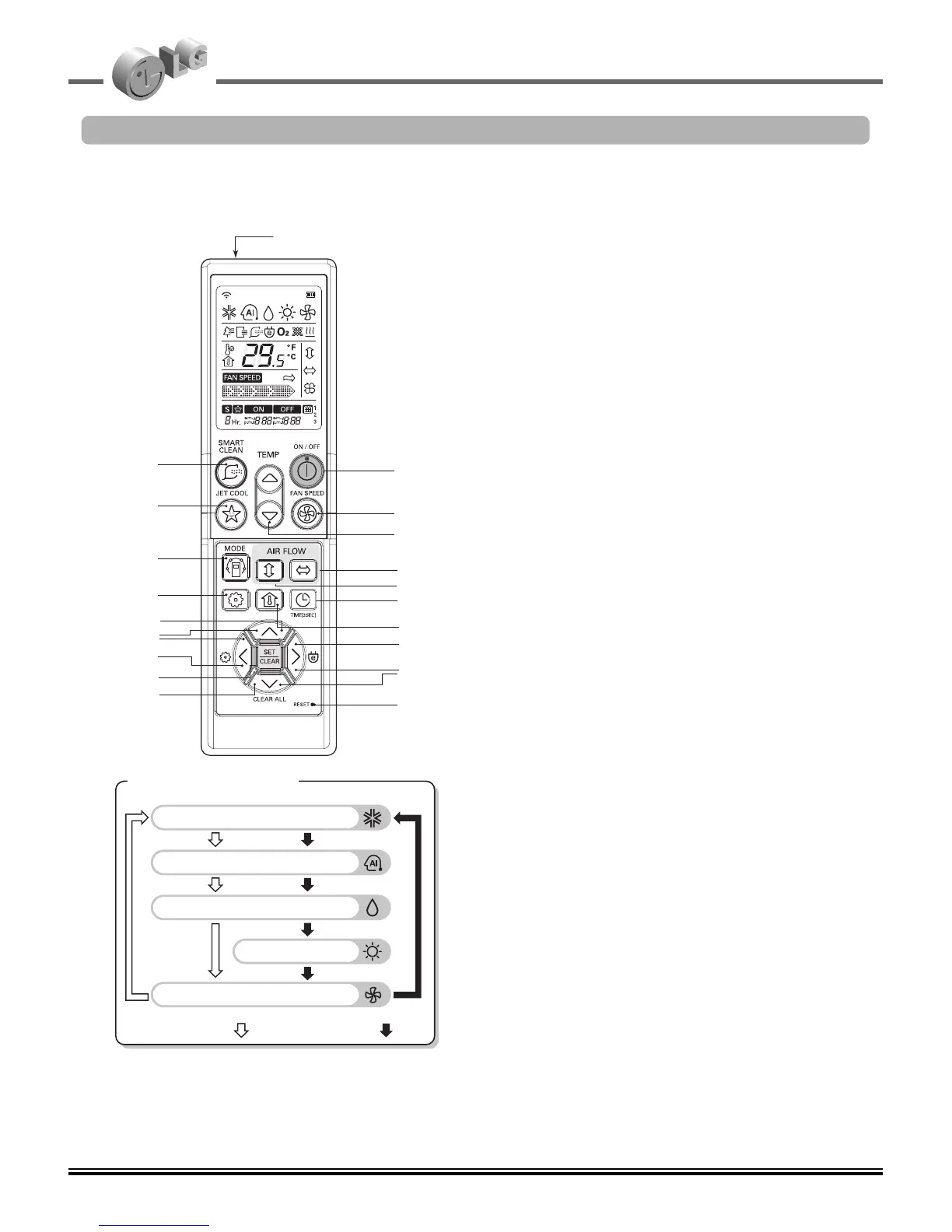

The controls will look like the following.
1. ON/OFF BUTTON
Used to turn off/on the unit.
2. OPERATION MODE SELECTION BUTTON
Used to select the operation mode.
3. ROOM TEMPERATURE SETTING BUTTONS
Used to select the room temperature.
4. INDOOR FAN SPEED SELECTOR BUTTON
Used to select fan speed in four steps low, medium,
high and CHAOS.
5. JET COOL BUTTON
Used to start or stop the speed cooling.
(It operates fan in super high speed in cooling mode)
6. CHAOS SWING BUTTON
Used to stop or start louver movement and set the
desired up/down airflow direction.
7. TIMER AND TIME SETTING BUTTON
Used to set the time of starting / stopping and
sleeping operation
8. TIME SETTING BUTTONS
Used to adjust the time.
9. TIMER SET / CLEAR BUTTON
Used to set and to cancel the timer operation.
13. FUNCTION SETTING BUTTON
Used to set auto clean and smart clean mode
regularly.
14. SMART CLEAN BUTTON
Used to start or stop the smart clean function.
15. CLEAR ALL BUTTON
Used to cancel all timer setting.
16. ENERGY SAVING COOLING BUTTON
Used to save Energy.
17. LED LUMINOSITY BUTTON
Used to adjust bruch and display LED luminosity.
18. HORIZONTAL AIRFLOW DIRECTION CONTROL
BUTTON
Used to set the desired horizontal airflow direction.
10. SLEEP MODE AUTO BUTTON
Used to set sleep mode auto operation.
11. ROOM TEMPERATURE CHECKING BUTTON
Used to check the room temperature.
12. RESET BUTTON
Used prior to resetting time.
Models: AS-W096ADR0/AS-W126ADR0
