FUNCTIONAL SPECIFICATIONS AC Smart BACnet

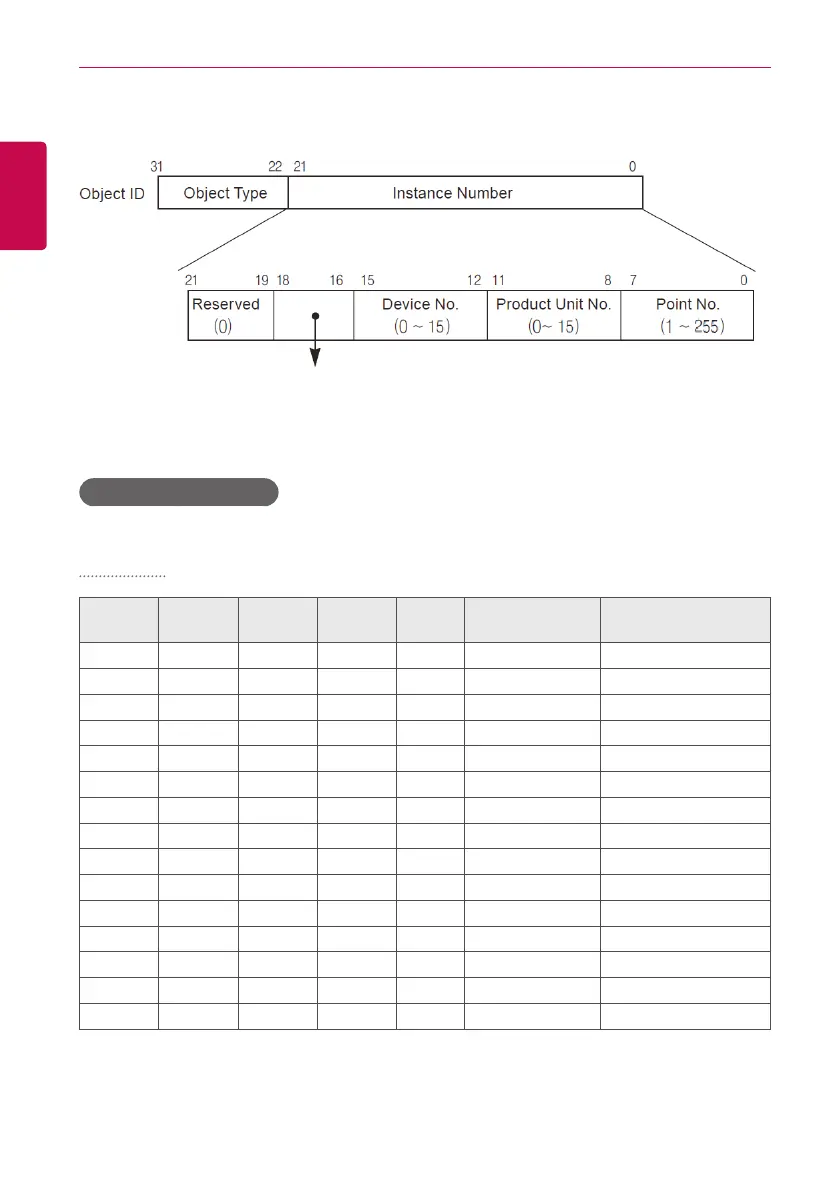

Local Definition of Object ID - The instance number is a pair, this consists of the indoor unit No. and
item.
Product Type(Indoor:0, Vent:1, AHU:2, ODU:3, AWHP:4, GENERAL:5)
**Device : Group of Product units(16EA)
Example of Point Table
The point table below is passed to BMS, and BMS registers the object.
Case Indoor
Address
Object
Type
Device
No.
Product
No.
Point Instance No. Name
0 4 0 0 1 0×00001(1)
ON/OFF : setting
0 3 0 0 2 0×00002(2)
ON/OFF : status
1 4 0 1 1 0×00101(257)
ON/OFF : setting
1 3 0 1 2 0×00102(258)
ON/OFF : status
15 4 0 15 1 0×00F01(38 41)
ON/OFF : setting
15 3 0 15 2 0×00F02(3842)
ON/OFF : status
16 4 1 0 1 0×01001(4097)
ON/OFF : setting
16 3 1 0 2 0×01002(4098)
ON/OFF : status
17 4 1 1 1 0×01101(4353)
ON/OFF : setting
17 3 1 1 2 0×01102(4354)
ON/OFF : status
31 4 1 15 1 0×01F01(7937)
ON/OFF : setting
31 3 1 15 2 0×01F02(7938)
ON/OFF : status
32 4 2 0 1 0×02001(8193)
ON/OFF : setting
32 3 2 0 2 0×02002(8194)
ON/OFF : status
33 4 2 1 1 0×02101(8449)
ON/OFF : setting
