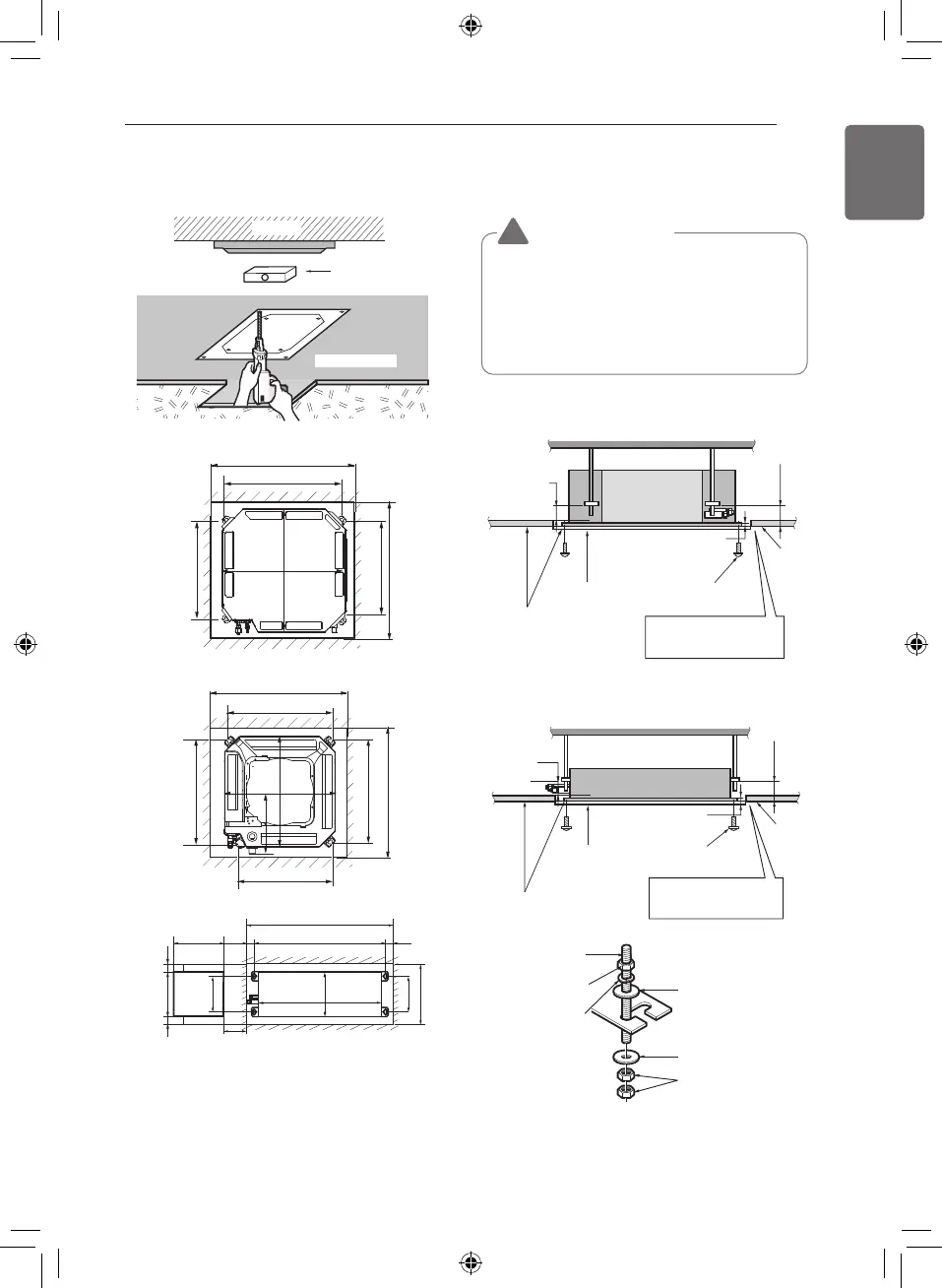

Set screw of
paper model (4 pieces)
Paper model
for installation
Ceiling
board
150 mm
Ceiling board
Ceiling
Keep the
length of the
bolt from
the bracket
to 40 mm
Open the ceiling board
along the outer edge of the
paper model
Air Conditioner body
Keep the length of 15~18 mm
between the air conditioner
bottom surface and the ceiling
surface
Adjust the
same height
Keep the
length of the
bolt from
the bracket
to 40 mm
Ceiling
board
Set screw of
paper model (4 pieces)
Paper model
for installation
70 mm
Adjust the same height
Ceiling board
Ceiling
Open the ceiling board
along the outer edge of the
paper model
Air conditioner body
Keep the length of 20~22 mm
between the air conditioner bottom
surface and the ceiling surface
4Way
1Way
* The feature can be changed according to
type of model.
- Select and mark the position for fixing bolts
and piping hole.
- Decide the position for fixing bolts slightly
tilted to the drain direction after considering
the direction of drain hose.
- Drill the hole for anchor bolt on the wall.
• This air-conditioner uses a drain pump.
• Install the unit horizontally using a level
gauge.
• During the installation, care should be
taken not to damage electric wires.
CAUTION
!
