INSTALLATION PLACES
ENGLISH

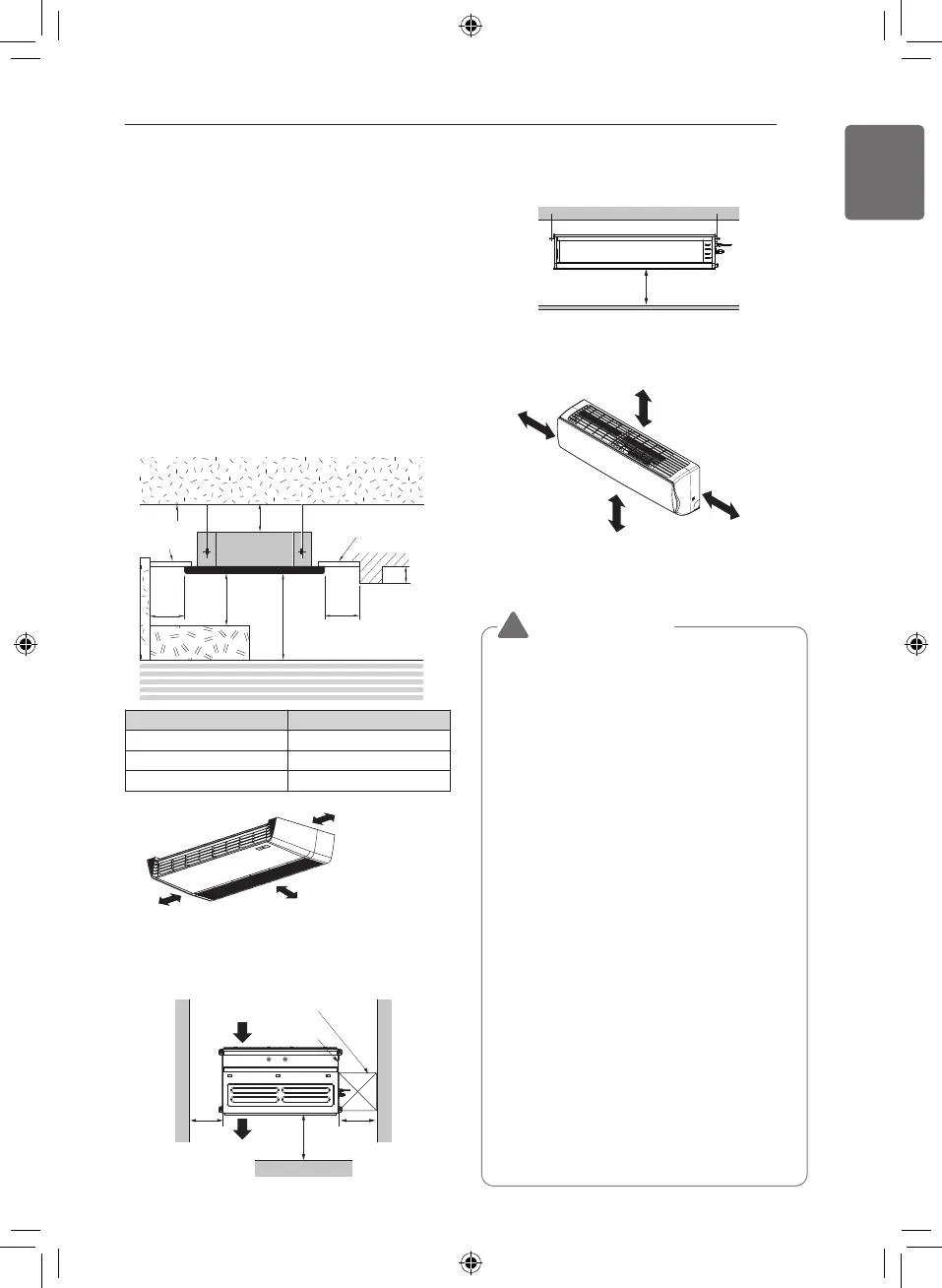

INSTALLATION PLACES
• Suitable dimension "H" is necessary to get a
slope to drain as shown in the figure.
* The feature can be changed according to
type of model.
Top view
Side view
Be very careful while carrying the product.
• Do not have only one person carry product if
it is more than 20 kg.
• PP bands are used to pack some products.
Do not use them as a mean for
transportation because they are dangerous.
• Do not touch heat exchanger fins with your
bare hands. Otherwise you may get a cut in
your hands.
• Tear plastic packaging bag and scrap it so
that children cannot play with it. Otherwise
plastic packaging bag may suffocate children
to death.
• When carrying in Unit, be sure to support it
at four points. Carrying in and lifting with 3-
point support may make Outdoor Unit
unstable, resulting in a fall.
• Use 2 belts of at least 8 m long.
• Place extra cloth or boards in the locations
where the casing comes in contact with the
sling to prevent damage.
• Hoist the unit making sure it is being lifted at
its center of gravity.
CAUTION
- There should not be any heat source or steam
near the unit.
- There should not be any obstacles to prevent the
air circulation.
- A place where air circulation in the room will be
good.
- A place where drainage can be easily obtained.
- A place where noise prevention is taken into
consideration.
- Do not install the unit near the door way.
- Ensure the spaces indicated by arrows from the
wall, ceiling, or other obstacles.
- The indoor unit must keep the maintenance space.
!
