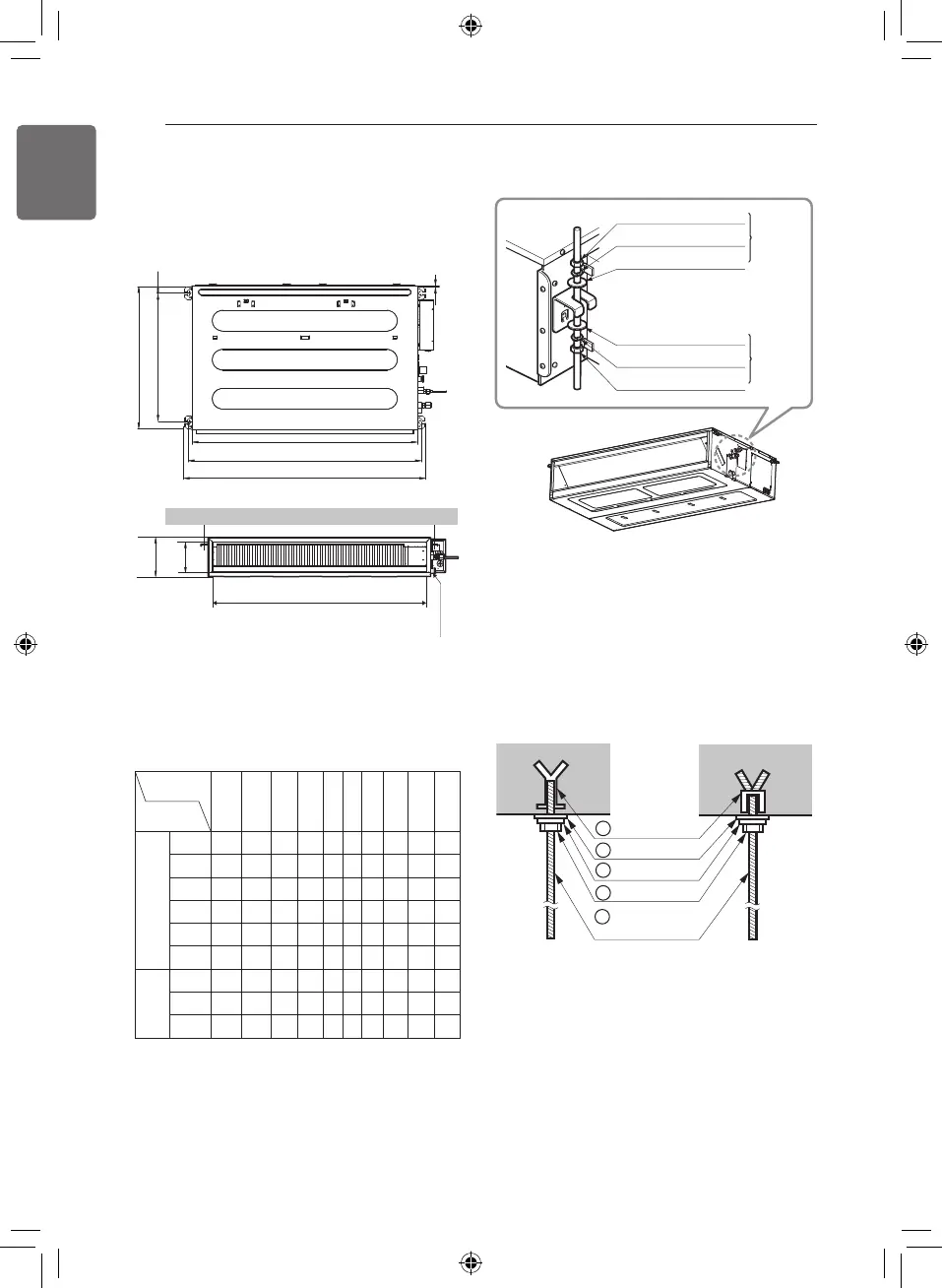

THE INDOOR UNIT INSTALLATION
ENGLISH
C
E
G
D
F
I
A
J
B
H
Drainage hole
Dimension
Chassis
A B C D E F G H I J
Low
Static
L1 733 772 628 700 36 190 20 660 155 700
L2 933 972 628 700 36 190 20 860 155 900
L3 1133 1172 628 700 36 190 20 1060 155 1100
L4 733 772 338 460 36 190 20 660 148 700
L5 933 972 338 460 36 190 20 860 148 900
L6 1133 1172 338 460 36 190 20 1060 148 1100
Mid
Static
M1 933.4 971.6 619.2 700 30 270 15.2 858 201.4 900
M2 1 283.4 1 321.6 619.2 689.6 30 270 15.2 1 208 201.4 1 250
M3 1 283.4 1 321.6 619.2 689.6 30 360 15.2 1 208 291.4 1 250
(Unit: mm)
M10 Nut
M10 SP. washer
M10 washer
X 4
X 4
(Local
supply)
X 4
M10 Nut
M10 SP. washer
M10 washer
X 4
X 4
(Local
supply)
X 4
1 Set anchor
Old building New building
2 Plate washer
3 Spring washer
4 Nut
5 Suspension
bolts
• Local supply
① Set anchor
② Plate washer - M10
③ Spring washer - M10
④ Nut - W3/8 or M10
⑤ Suspension bolt - W3/8 or M10
* The feature can be changed according to
type of model.
Position of suspension Bolt
- Apply a joint-canvas between the unit and
duct to absorb unnecessary vibration.
- Apply a filter Accessory at air return hole.
Position of console Bolt
- Insert the set anchor and washer onto the
suspension bolts for locking the suspension
bolts on the ceiling.
- Mount the suspension bolts to the set
anchor firmly.
- Secure the installation plates onto the
suspension bolts (adjust level roughly) using
nuts, washers and spring washers.
