Connecting 13
Connecting
2

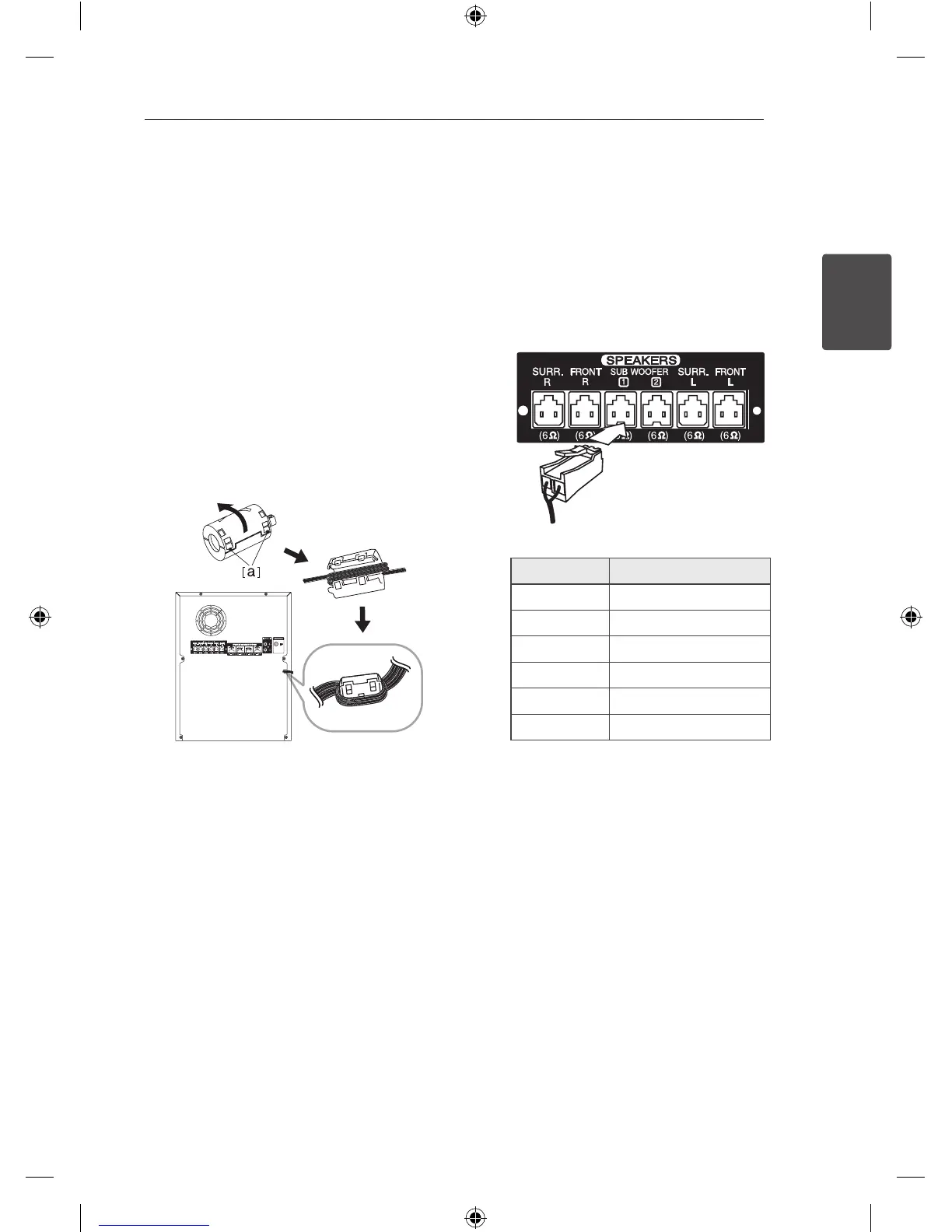

How to Affix the
Ferrite Core
Ferrite core may not be provided depending on
each nation’s regulations.
Affix the Ferrite Core for
power cord
You must ax a ferrite core in order to reduce or
eliminate electrical interference.
1. Pull the stopper [a] of the ferrite core to open.
2. Wind the power cord around the ferrite core
twice.
3. Close the ferrite core until it clicks.
Connecting to
speakers
Connect the speaker cable plugs to the SPEAKERS
connector. Make sure to connect the speaker’s plug
to the corresponding speaker connector when
connecting the plug.
Color Speaker
Grey SURR.R
Red FRONT R
Orange SUB WOOFER 1
Orange SUB WOOFER 2
Blue SURR.L
White FRONT L
