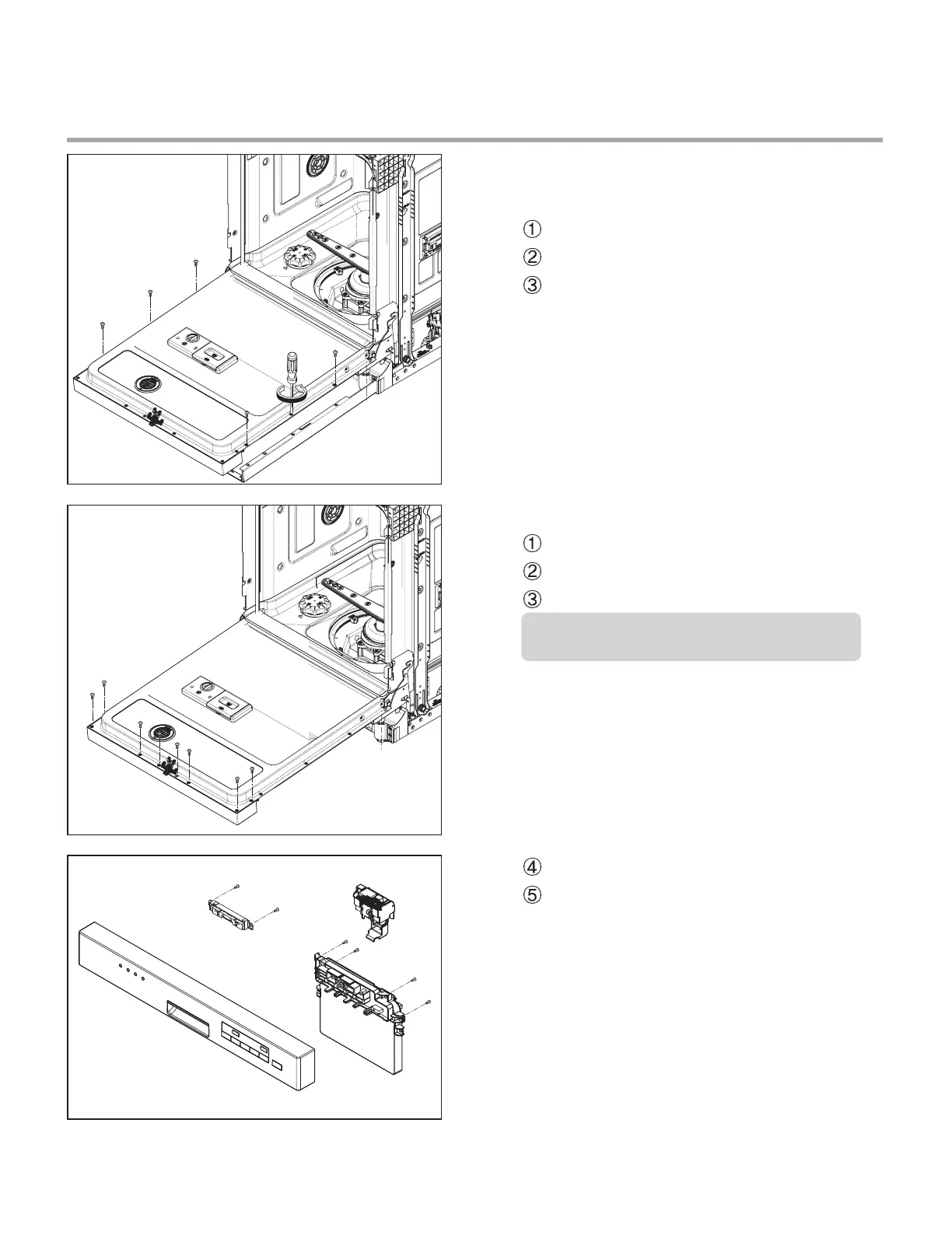

4. Door Assembly
1) Front Cover
Open the door
.
Remove 6 screws(stainless).
Close the door slowly and remove front
cover downwards.
2) Control Panel Assembly
Open the door
.
Remove 8 screws(stainless).
Remove wire connection.
Be sure the wiring should not be
changed in reassembling.
Remove 4 screws for Main Controller
.
Remove 2 screws for Process Indicator
PCB.
14
16
Table of Contents
Table of Contents
3
Caution
4
Specifications
5
Parts Name
6
Features & Technical Explanation
7
Wiring Diagram
12
Program Chart(Schematic Diagram)
13
How to Disassemble
14
Trouble Shooting Methods
26
Trouble Shooting According to Displayed Error Message
26
Trouble Diagnoses and Repair by Symptom
28
Installation Instruction
32
Exploded View
36
