8. PCB LAYOUT

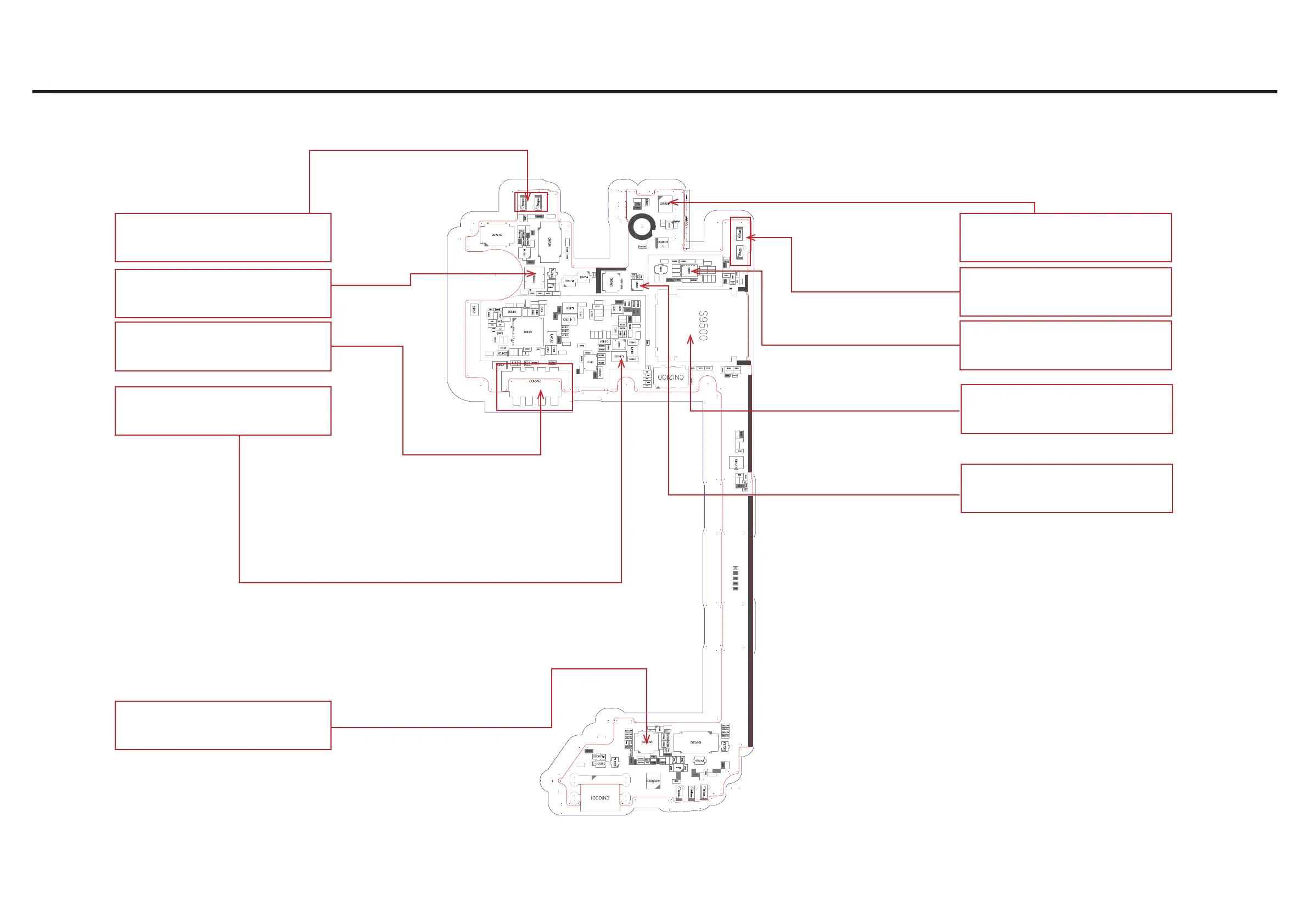

LG-D858_Main_EAX65632401_1.0_BOT-2
D:\expedition\L80V\EAX66073001_1_0_LGD337_MAIN_140618_1715\PCB\Board1.pcb - Page 1 of 1 pages.



































 






 

 
 














   










 




 






 


 
 

 










 

Model name : C-Clip(ANT1502,ANT1503)
Function : GPS antenna connection
- No GPS
Model name : BM10NB(0.8)-10DS (CN9900)
Function : SIM2 FPCB connector
-no SIM2 detect
Model name : KQ03L3-4R (CN9100)
Function : Battery connector
-no power, no booting
Model name : LM3639 (U4400)
Function : DC-DC convertor
- no LCD
Model name : GB042-10S-H10-E3000(CN7200)
Function : Touch B to B Connector
- no touch
Model name : SPW4430HR5H (MIC69021)
Function : Microphone
- no MIC.(Voice)
Model name : C-Clip (ANT5100,ANT5101)
Function : BT/WiFi antenna connection
- No BT/WiFi
Model name : TPA2058D3 (U6200)
Function : Audio sub system IC
-no audio
Model name : 3.2.16.0016 (S9500)
Function : Combo socket
- no SIM detect, no SD card
Model name : K2HHTR (U8300)
Function : Acceleration sensor
- no acceleration sensor
