3-74
2) Audio related Signal

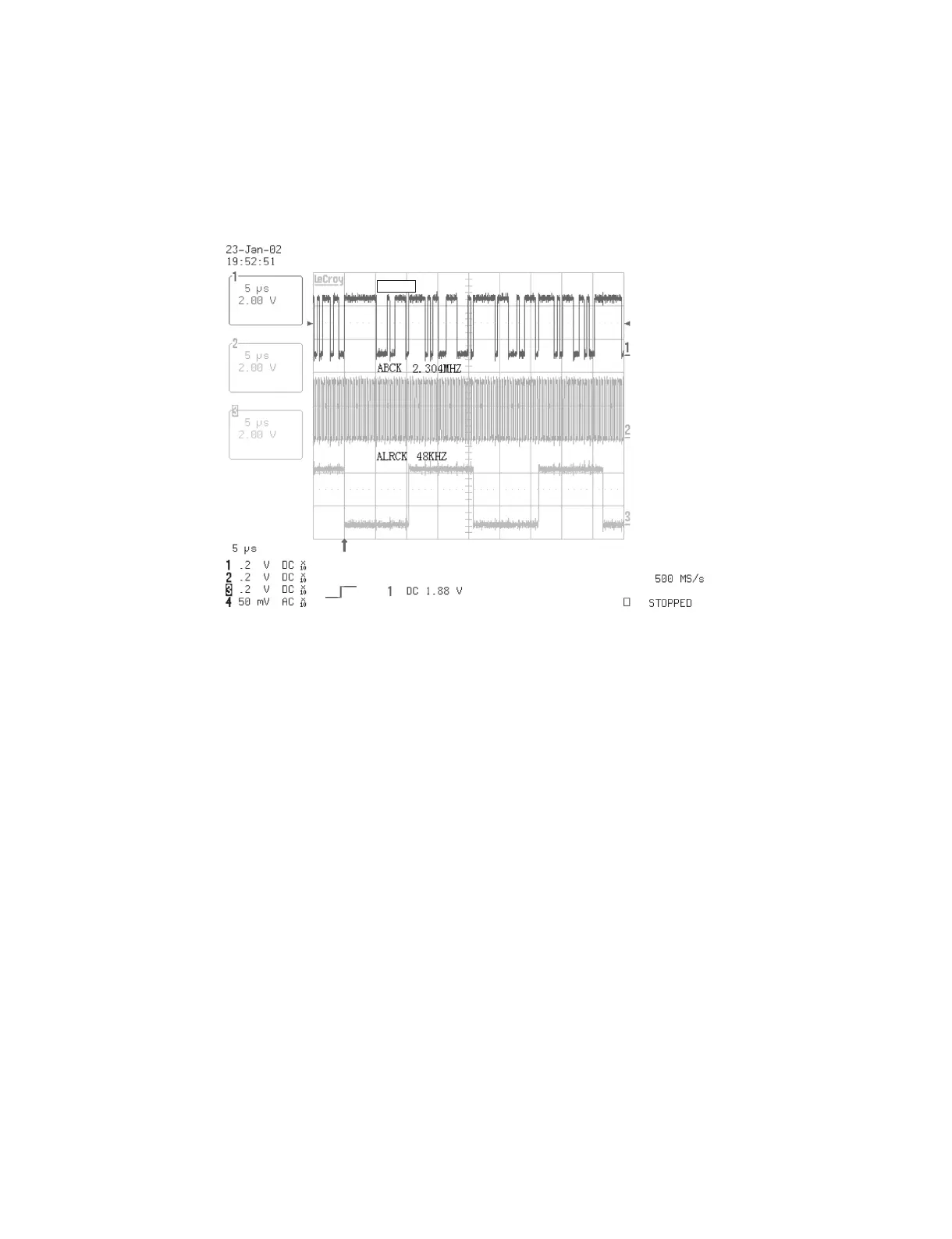

ASDAT3(IC501 PIN 157)
ABCK(IC501 PIN 148)
ALRCK(IC501 PIN 149)
ASDATA3
FIG 14-2
