36

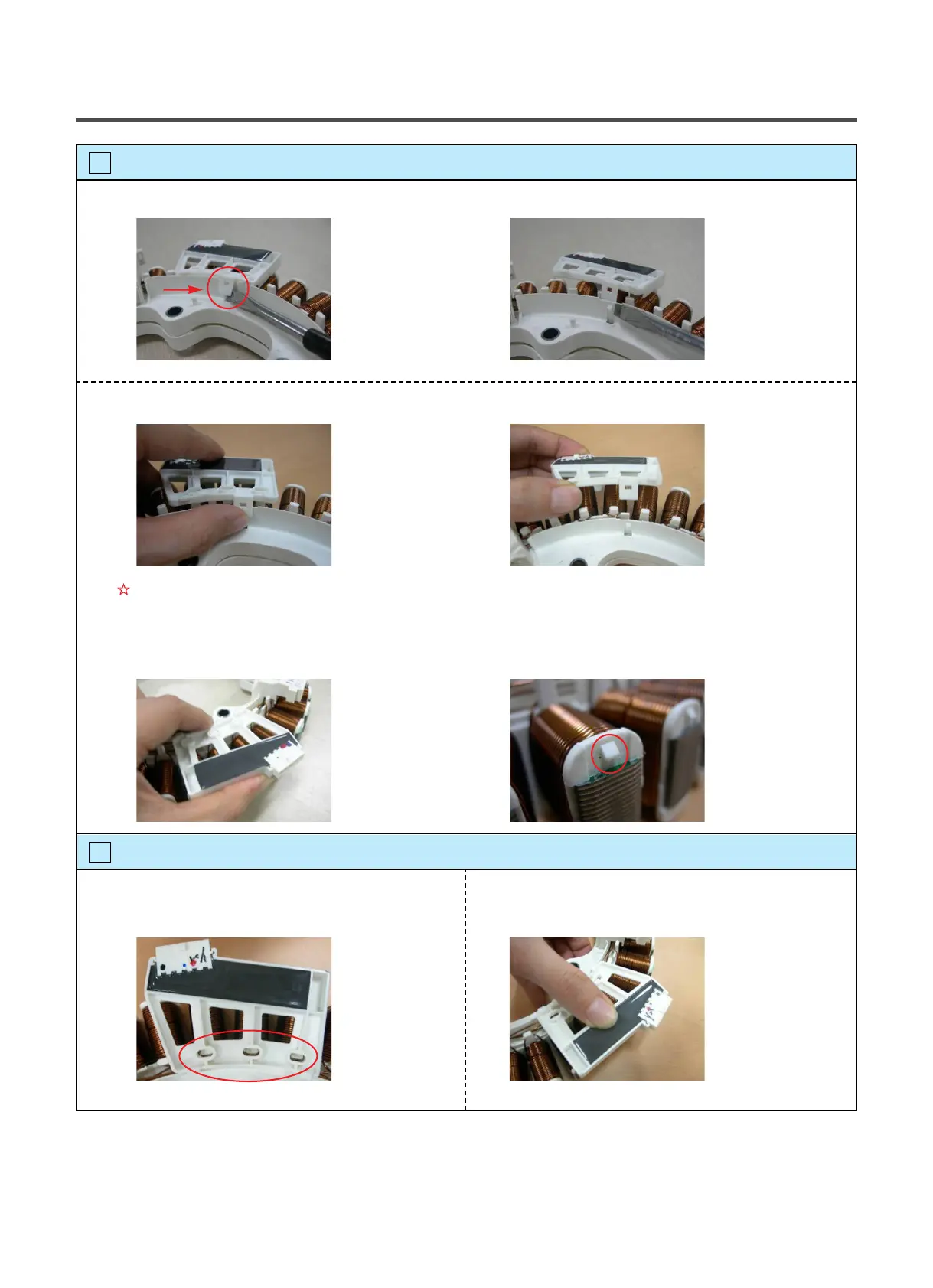

Disassemble the Hall Sensor
1) Disassemble the hook of Hall Sensor by (-) driver.
2) Pull up Hall Sensor slowly as shown in picture.
1)
Adjust the hole of Hall Sensor to
the hooks of stator as shown in red circle.
2) Push down the Hall sensor,
and assemble to the hook for securely.
Caution
If you disassemble by force,not following the directions,
the hooks of stator(red circled) might break.
Hence need change of stator assembly.
So disassemble cautiously.
1
Assemble the Hall Sensor
2
[Note]
Hall Sensor Part No.
• 24” / 25” : 6501KW2001A • 27” : 6501KW2002A
To Next Page
