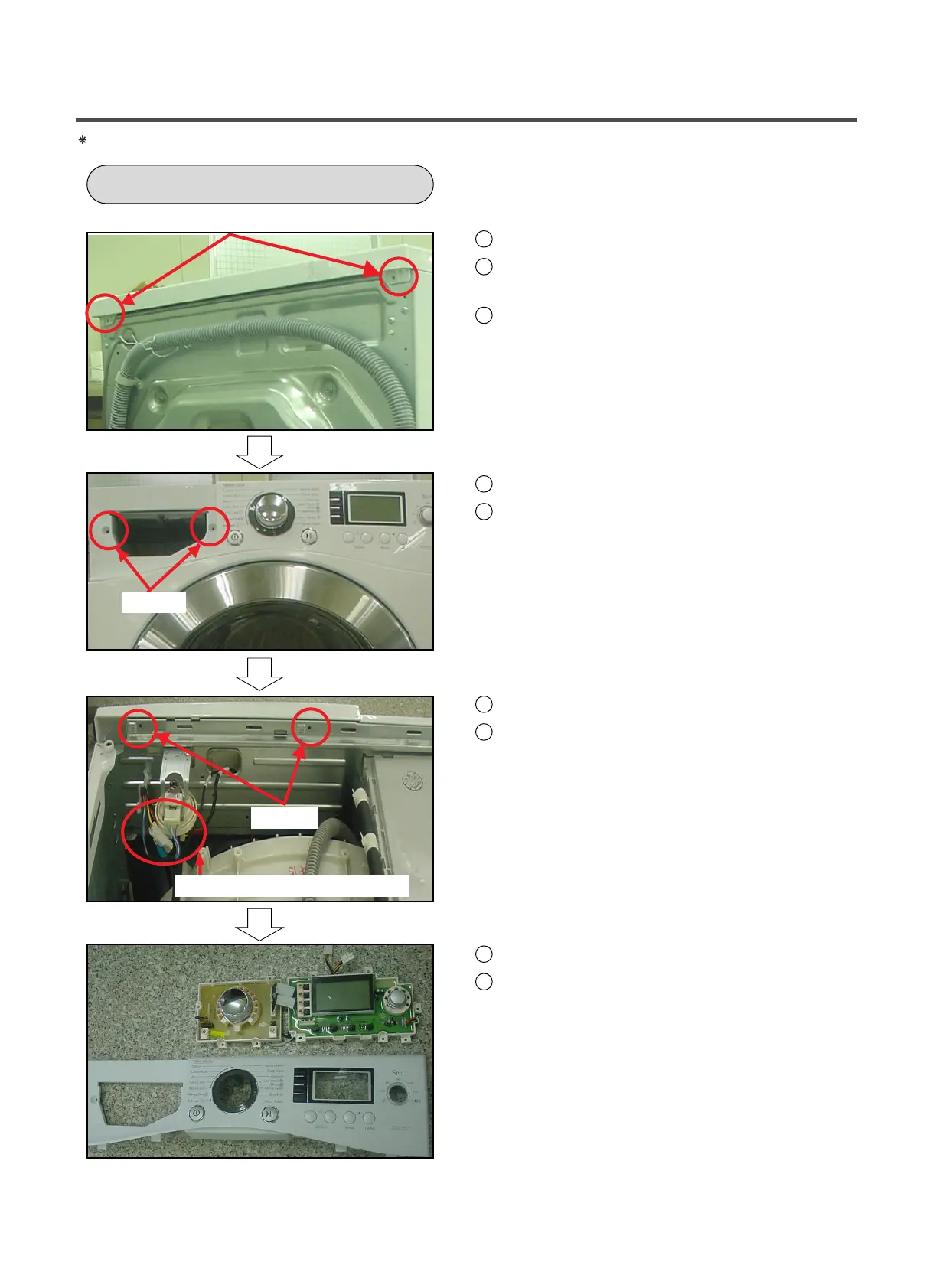

10. DISASSEMBLY INSTRUCTIONS
Remove the power cord from the outlet before disassembling or repairing the unit.
1
Unscrew the screws on the top plate.
3
The cover(Inner) is disassembled.
2
The plate assembly(Top) is pulled back and
then upward in direction of arrow.
1
Pull out the drawer and unscrew 2 screws.
2
Lift the side of the Control Panel Assembly and
pull it out
1
Unscrew two screws.
2
Push out PANEL ASSEMBLY, CONTROL after
Push the hook below.
1
The PWB assembly(Display) is disconnected.
2
When 7 screws are unscrewed on the PWB
insulator and the PWB assembly(Display) is
disassembled from the PWB insulator.
CONTROL PANEL
Screws
Screws
Screws
Disassembly 3 connectors.
