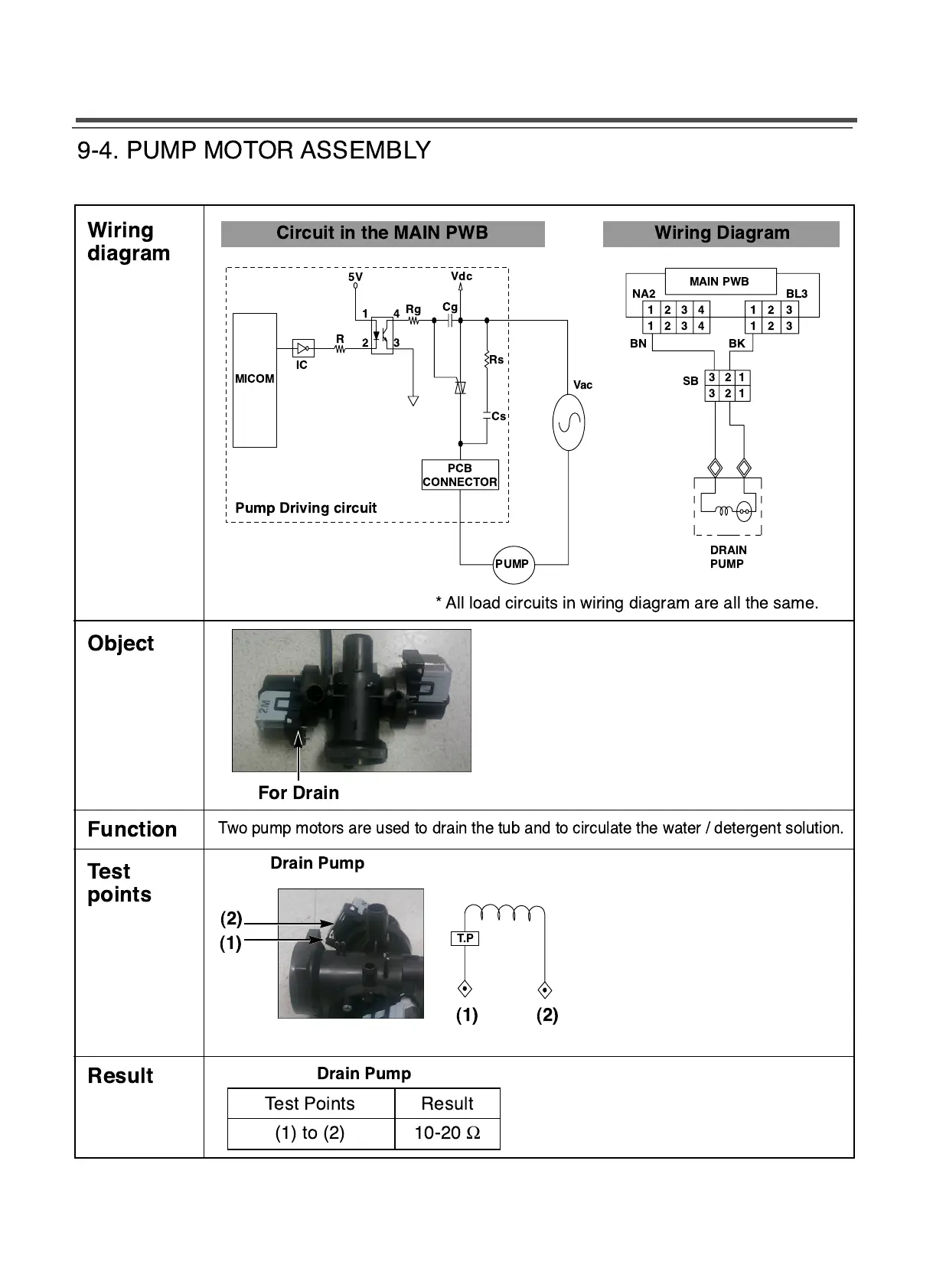

9-4. PUMP MOTOR ASSEMBLY


      















!
" # 
 

! !
!
!
!
!
$!
%
&


'(
)*

"*
+
* All load circuits in wiring diagram are all the same.
Two pump motors are used to drain the tub and to circulate the water / detergent solution.
 "
 "
Test Points Result
(1) to (2) 10-20 Ω
,
)* 
-.
-.
-. -.
