LG F1443KD Series - Part Inspection; Filter Assembly(Line Filter)

42

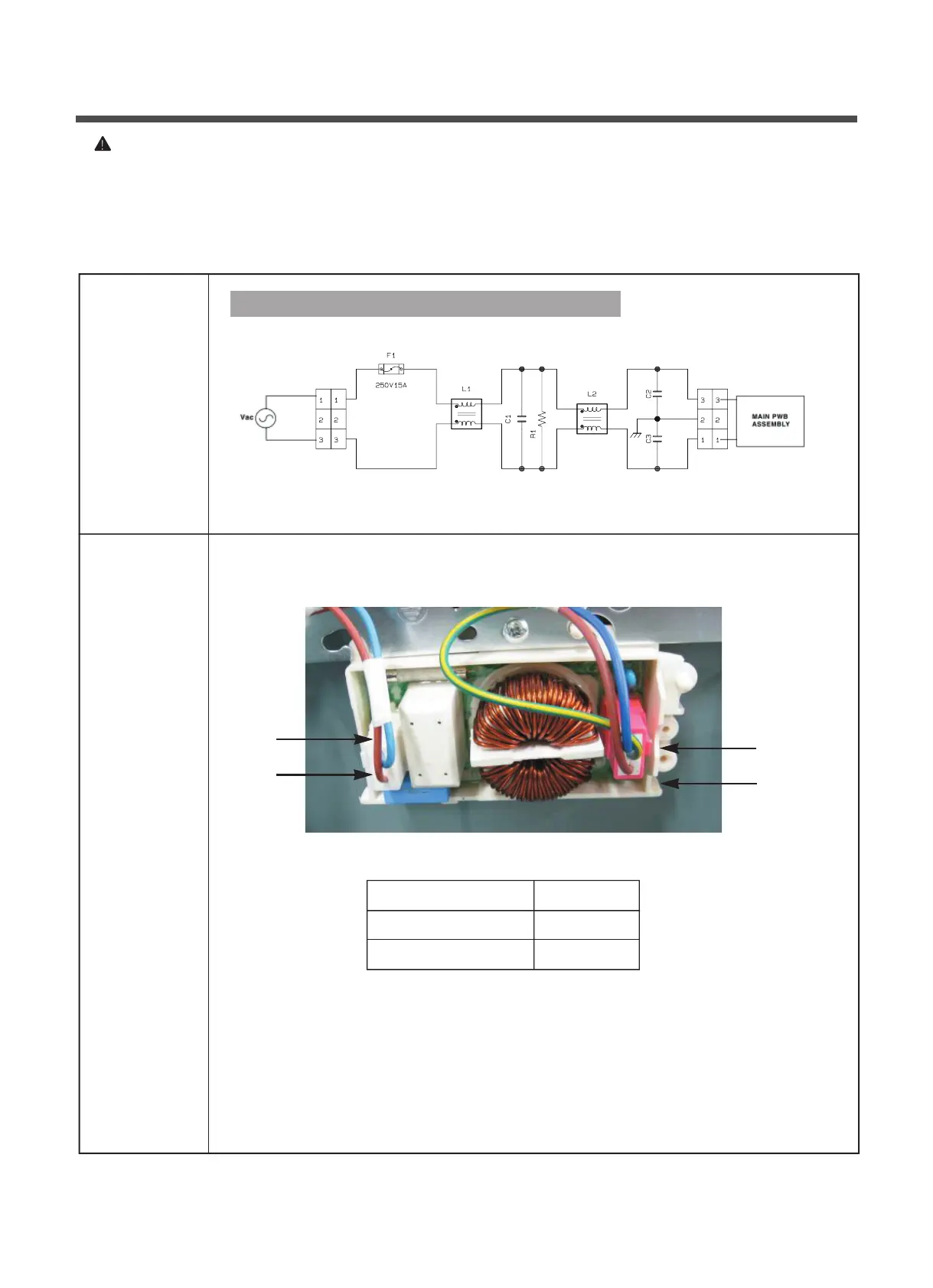

9-1. FILTER ASSEMBLY (LINE FILTER)
When Resistance (Ohm) checking the Component, be sure to turn the power off,
and do voltage discharge sufficiently.
Wiring
diagram
Circuit in the MAIN PWB / Wiring Diagram
Test
points
and
Result
Test Points Result
WH (1) to RD (3)
WH (3) to RD (1)
0 Ω
0 Ω
WARNING
(1)
(3)
(1)
(3)
RD
WH
9. Part inspection
