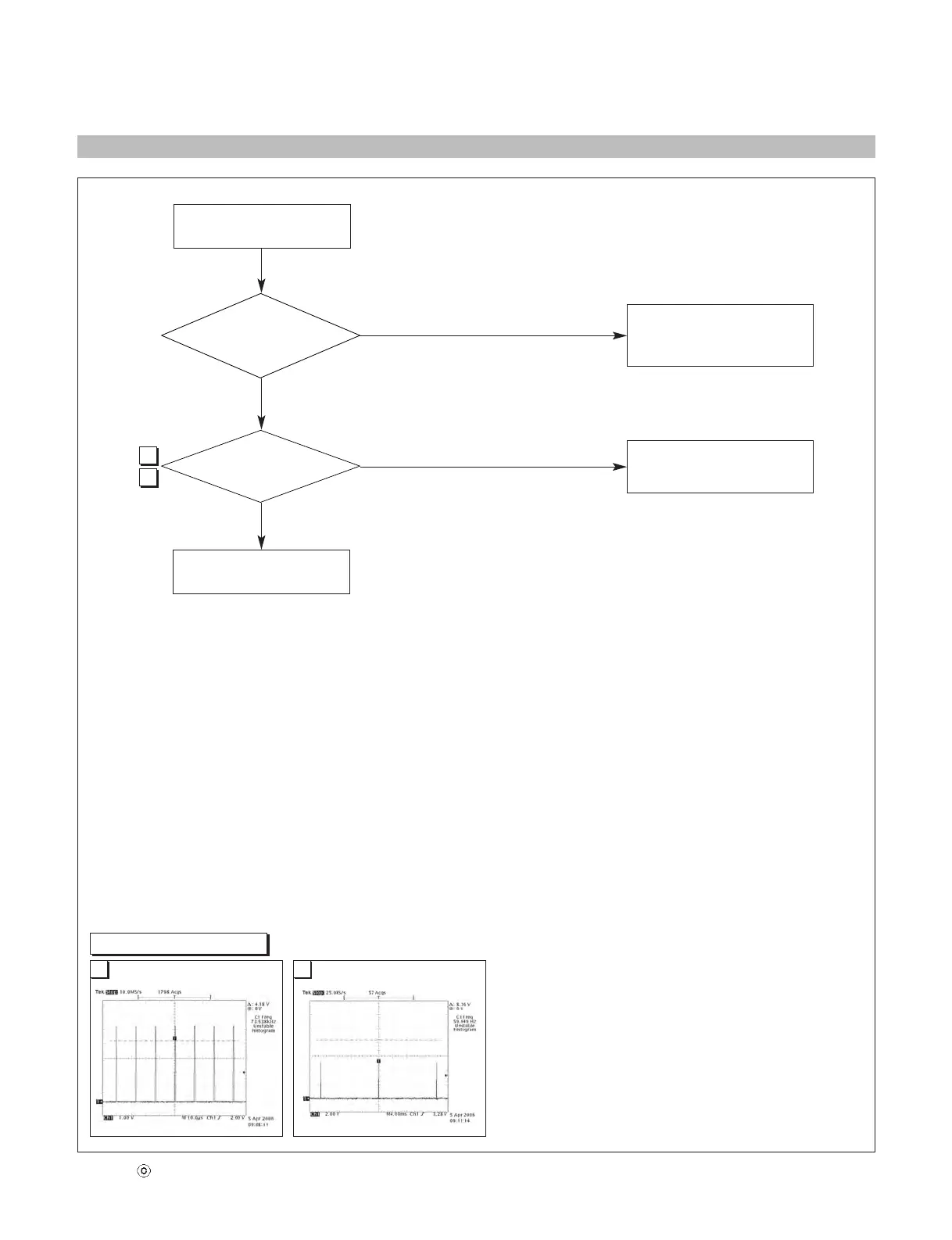

4. TROUBLE IN DPM
TROUBLE IN DPM
TROUBLE IN IC500
CHECK PC
PC IS GOING
INTO DPM MODE
NO
CHECK H/V SYNC LINE
NO
YES
CHECK R620 AND
R621, SYNC
APPEARED?
CHECK
IC500 PIN21,22
SYNC PULSE
YES
1
H-SYNC
2
V-SYNC
Waveforms
1
2
- 19 -
Copyright 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
