LG Flatron M1717A Service Manual

SERVICE OSD
- 14 -
Service Menu
Auto ADC
[00 0 0 0000]
Audio Setup
Option 1
Option 2
Option 3
ETC
Full Reset
200X. 0X. 0X
PAL - XX
LOC Ver X. XX. XX
Sedna Ver X. XX. XX. XX
Option 4
■ Description of operation
- [00 0 0 0000] : Country Option Code
- Option 1 ~ 4 : Detail Country Option 1 ~ 4(Refer Adjust spec sheet)
- Auto ADC : Adjust ADC in PC or AV by SVC Remote Control
- Audio Setup : Only Engineering. Don't setting
- ETC : ETC Setting
- Full Reset : Factory Reset
- 200X. 0X. 0X : Firmware update date
- PAL-XX : 17 or 19 inchi
- LOC Ver : Video & Audio Decoder Firmware Version
- Sedna Ver : Scaler Firmware Version
■ How to enter SVC Menu
1. Push "IN-Start" Key in SVC remote controller.
2. Push "Menu" Key in remote controller over 5 seconds the while pushing "Menu" key of Local button.
(If SVC OSD appear, remove the finger on "Menu" Key in remote controller first of all)

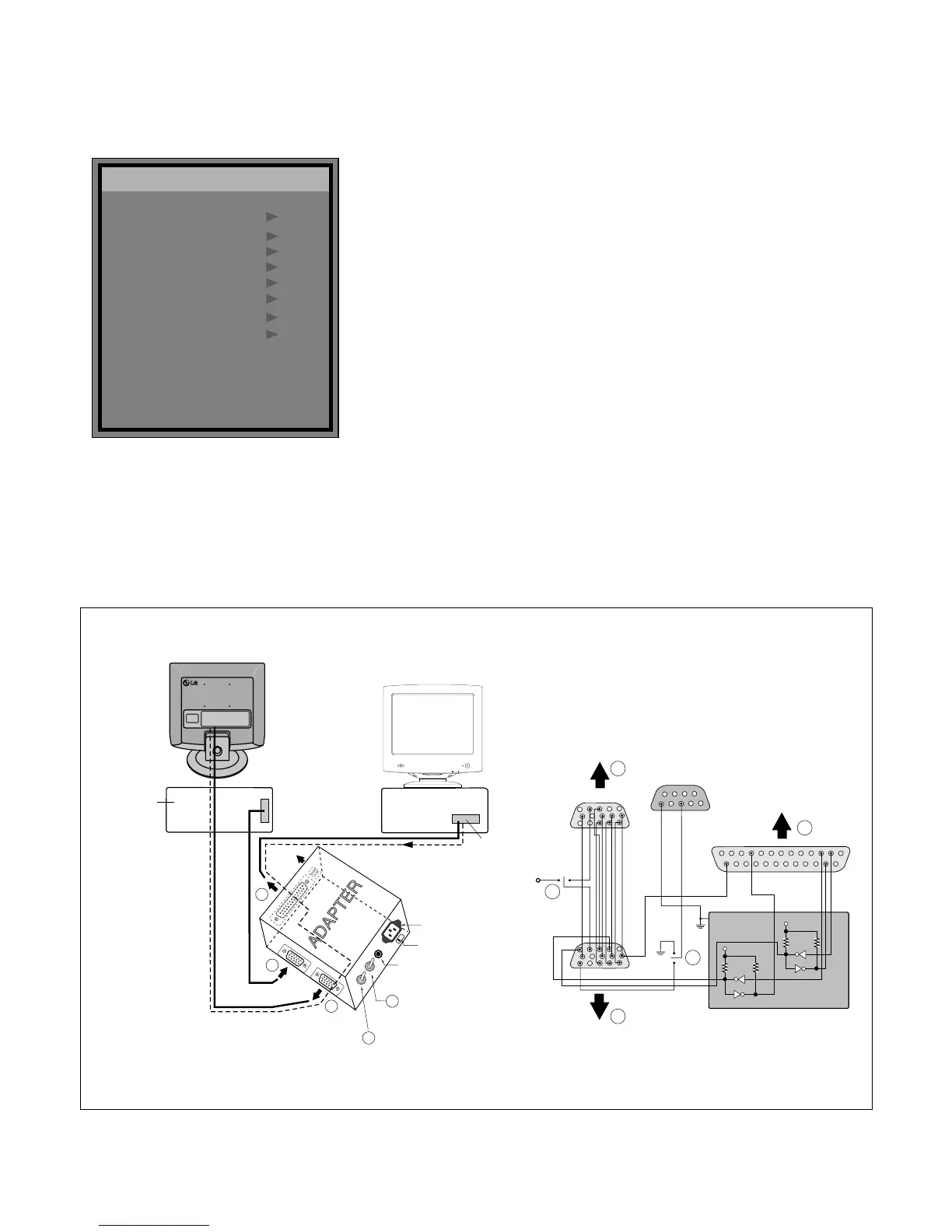

Figure 1. Cable Connection
220
IBM
Compatible PC
PARALLEL PORT
Power inlet (required)
Power LED
ST Switch
Power Select Switch
(110V/220V)
Control Line
Not used
RS232C
PARALLEL
V-SYNC
POWER
ST
VGS
MONITOR
E
E
V-Sync On/Off Switch
(Switch must be ON.)
F
F
A
A
B
B
C
C
15
10
5
5
69
1
1
1
14
13
25
6
5V
5V
5V
4.7K
4.7K
4.7K
74LS06
74LS06
OFF ON
OFF
ON
11
Video Signal
Generator
