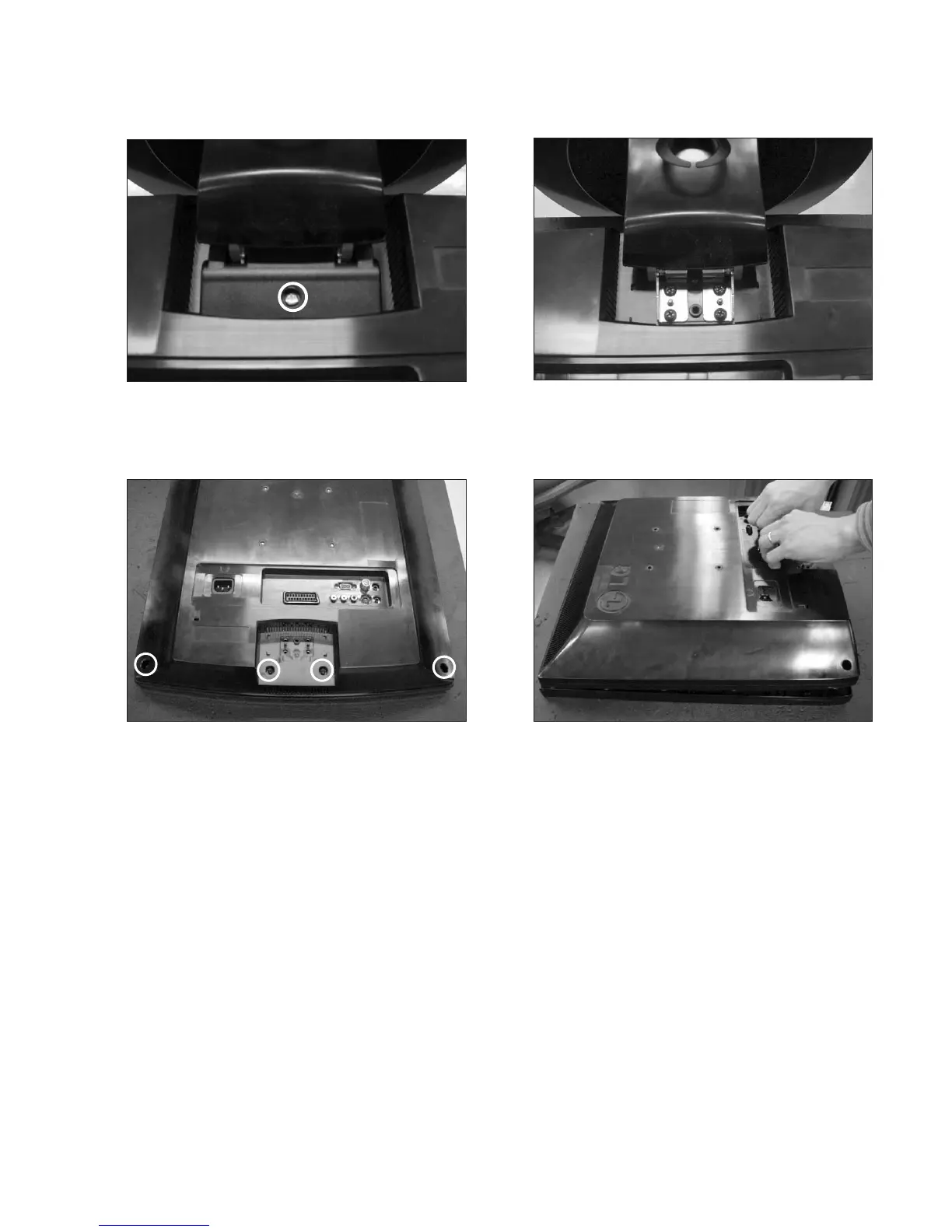

DISASSEMBLY
- 8 -
1. Remove the screws.
2. Disassembly Hinge Cover.
1. Let the all latches are separated
2. Disassemble back cover.
Remove the screws.
Remove the screws.
# 1
# 4
# 2
# 3
