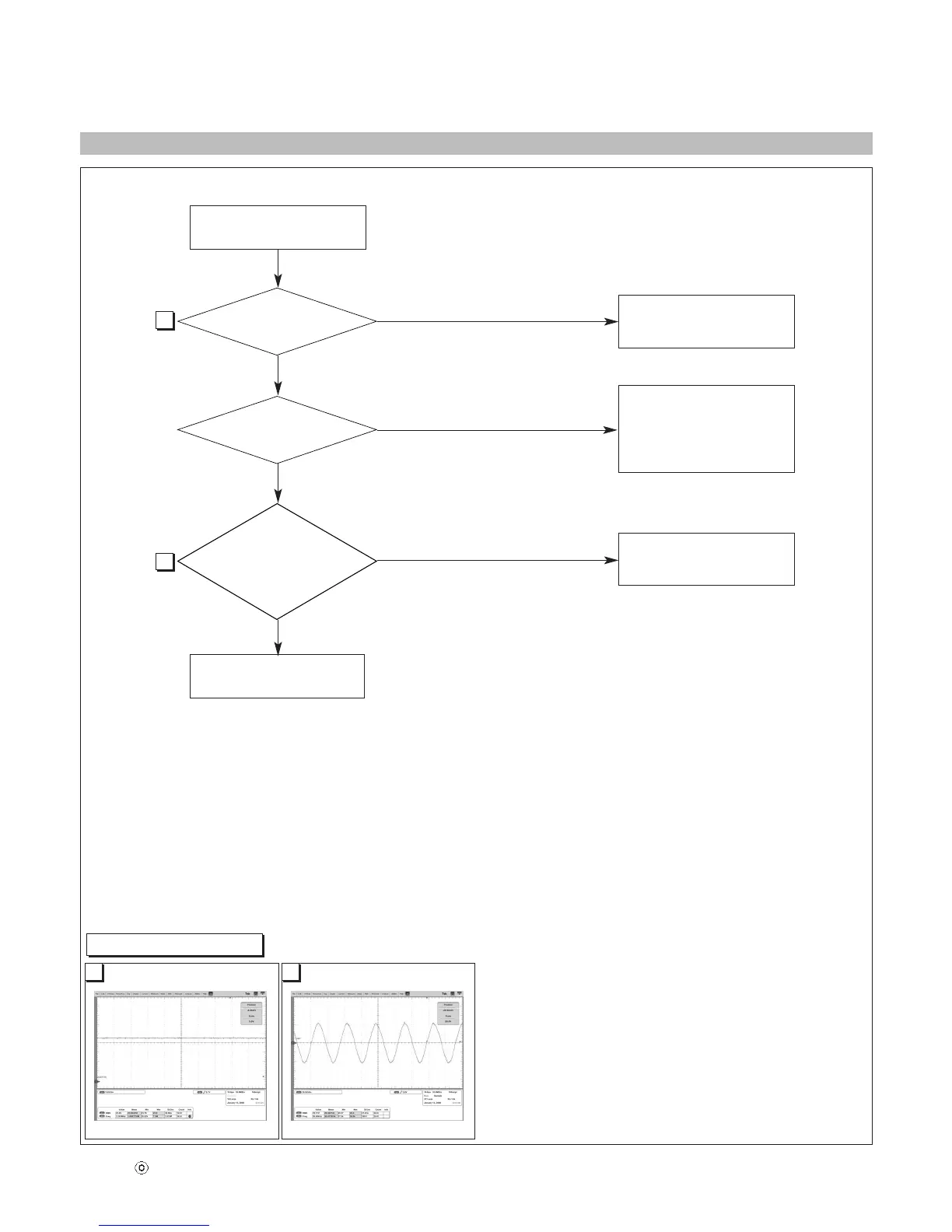

2. NO RASTER (OSD IS NOT DISPLAYED)-Inverter
NO RASTER
(OSD IS NOT DISPLAYED)
NO
NO
NO
REPLACE LCD MODULE
CHECK POWER
BOARD(LIPS)
CHECK Damaged in Main
Board or Check the open or
Short point in Main to
Power,Power to Inverter
Cable
Main or POWER
BOARD(LIPS)
CHECK Power to
Inverter Cable #1
24V
CHECK Inverter B'c
#12(BL_ON) High
CHECK
THE LAMP WIRE or
Broken Lamp
in THE LCD
MODULE.
YES
YES
YES
1
2
Waveforms
1
Inverter 24V
2
Inverter Lamp Voltage
