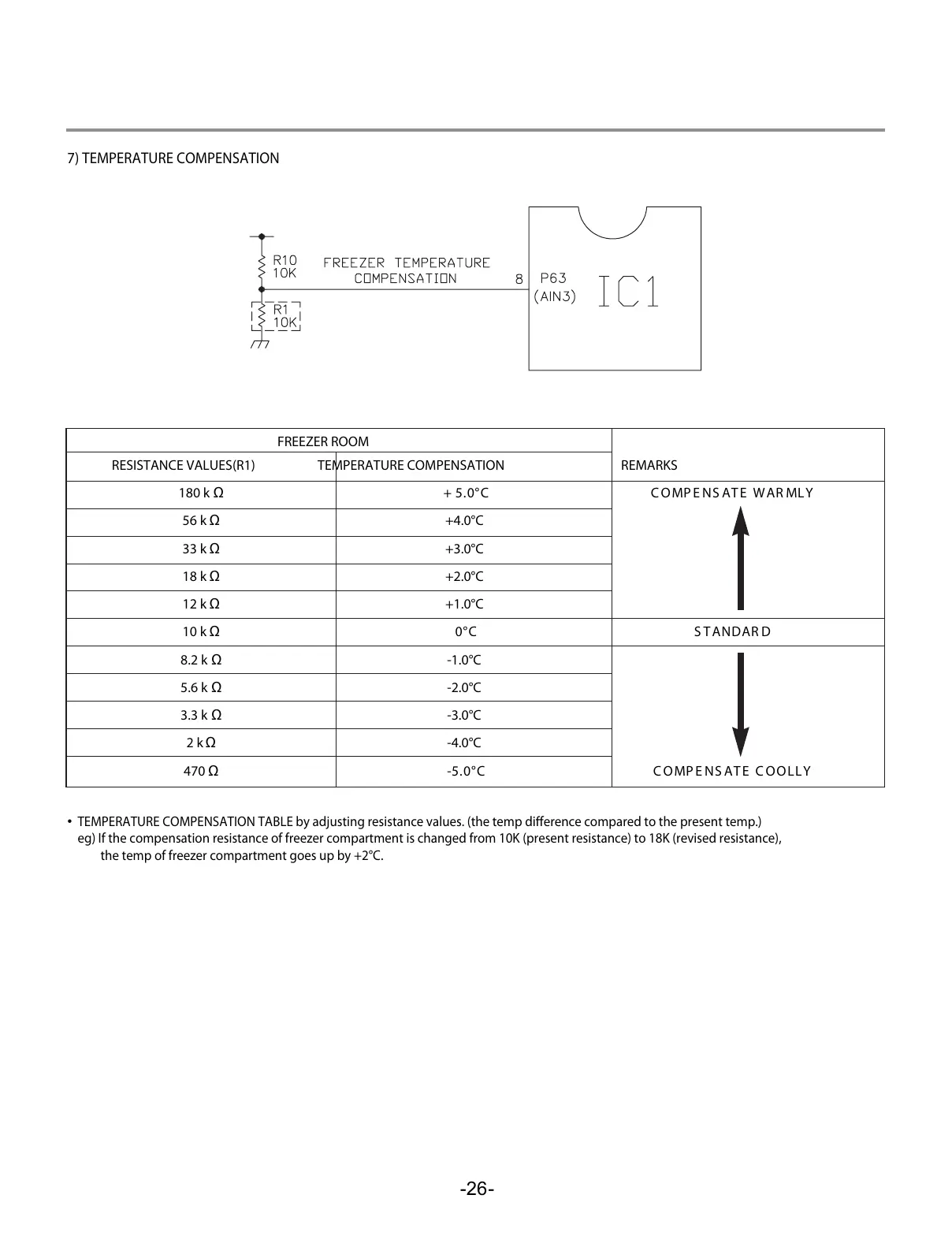

7) TEMPERATURE COMPENSATION
• TEMPERATURE COMPENSATION TABLE by adjusting resistance values. (the temp dierence compared to the present temp.)
eg) If the compensation resistance of freezer compartment is changed from 10K (present resistance) to 18K (revised resistance),
the temp of freezer compartment goes up by +2°C.
FREEZER ROOM
RESISTANCE VALUES(R1) TEMPERATURE COMPENSATION REMARKS
180 k Ω YLMRAW ETASNEPMOC C°0.5 +
56 k Ω +4.0°C
33 k Ω +3.0°C
18 k Ω +2.0°C
12 k Ω +1.0°C
10 k Ω DRADNATS C°0
8.2 k Ω -1.0°C
5.6 k Ω -2.0°C
3.3 k Ω -3.0°C
2 k Ω -4.0°C
470 Ω YLLOOC ETASNEPMOC C°0.5-
