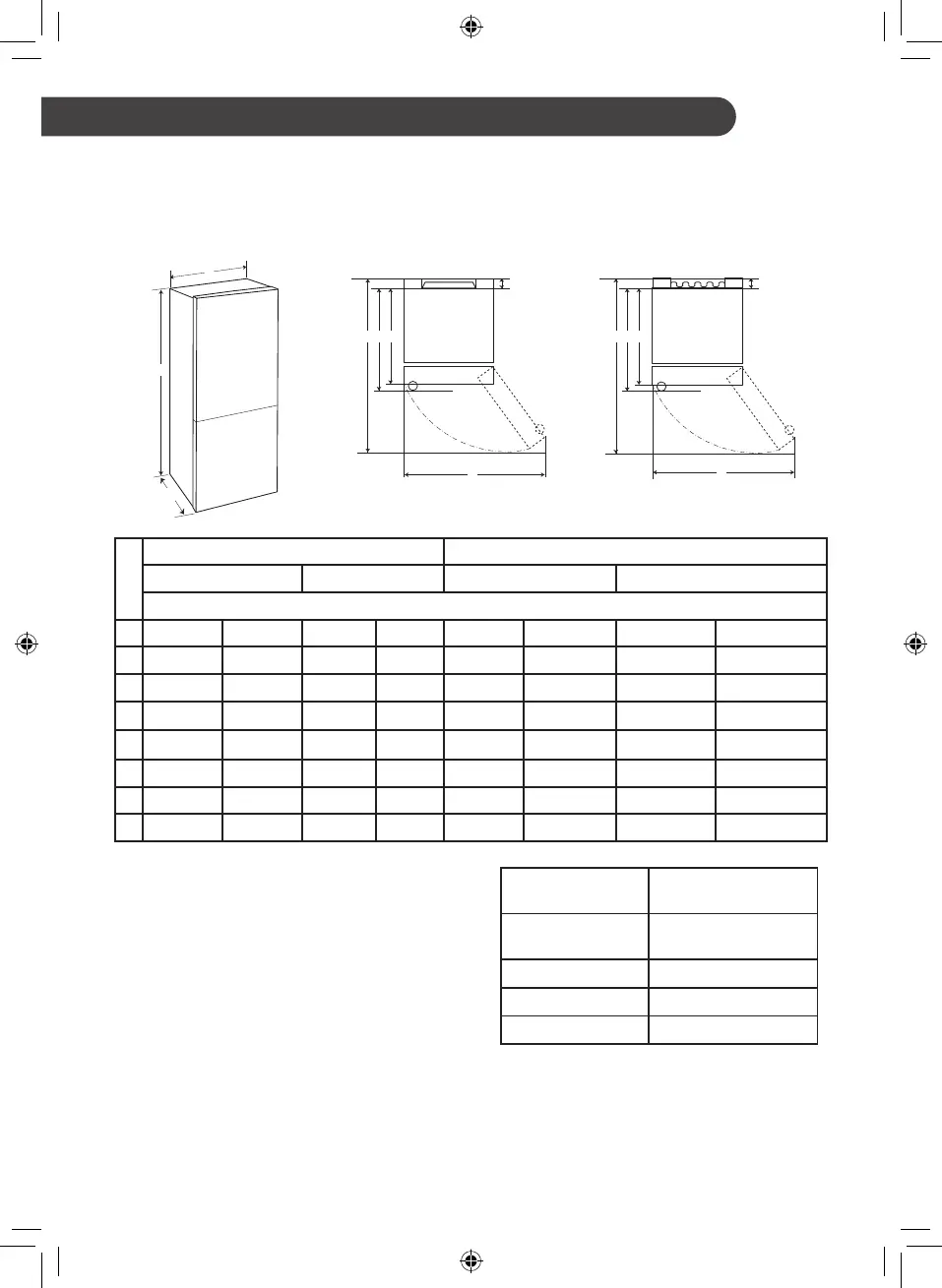

Dimensions and Clearances
• Too small of a distance from adjacent items may result in the degradation of freezing capability and increased
electricity costs. Allow over 50 mm of clearance from each adjacent wall when installing the appliance.
A
C
B
EFG
D
H
EFG
D
H
Type A Type B
Pocket Handle Bar Handle Pocket Handle Bar Handle
Size [mm]
A
595 595 595 595 595 595 595 595
B 1860 2030 1860 2030 1860 2030 1860 2030
C 676 676 731 731 682 682 737 737
D 9 9 9 9 15 15 15 15
E 667 667 667 667 667 667 667 667
F - - 722 722 - - 722 722
G 1124 1124 1124 1124 1130 1130 1130 1130
H 995 995 995 995 995 995 995 995
INSTALLATION
Ambient Temperature
• The appliance is designed to operate within a limited
range of ambient temperatures, depending on the
climate zone.
• The internal temperature could be affected by the
location of the appliance, the ambient temperature,
the frequency of door opening and so on.
• The climate class can be found on the rating label.
Climate Class
Ambient Temperature
Range ºC
SN (Extended
Temperate)
+10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38
T (Tropical) +16 - +43 / +10 - +43*
*Australia, India, Kenya
NOTE
• The appliances rated from SN to T are intended to be used at an ambient temperature between 10 ºC and 43 ºC.
