LG GF-V708MBSL - Refitting the Door

19
EN
NOTE
Collet
Tube
Insert Line
• Gently insert the tube until only one of the
tube’s lines is visible.
(Correct)
(Incorrect)
• Pull on the tube to make sure that it is tightly
fastened.
[The Right Fridge Door]
1
Remove the top hinge cover screw (1). Lift
the hook (not visible), located at the bottom
of the front side of the cover (2), with a
flat-head screwdriver.
2
Detach the wire harness (1).
3
Rotate the hinge lever (1) clockwise. Lift the
top hinge (2) free of the hinge lever latch.
Hinge Lever Latch
CAUTION
• When lifting the hinge free of the hinge lever
latch, be careful that the door does not fall
forward.
4
Lift the door from the middle hinge pin and
remove the door.
CAUTION
• Place the door on a non-scratching surface
with the inner side facing up.

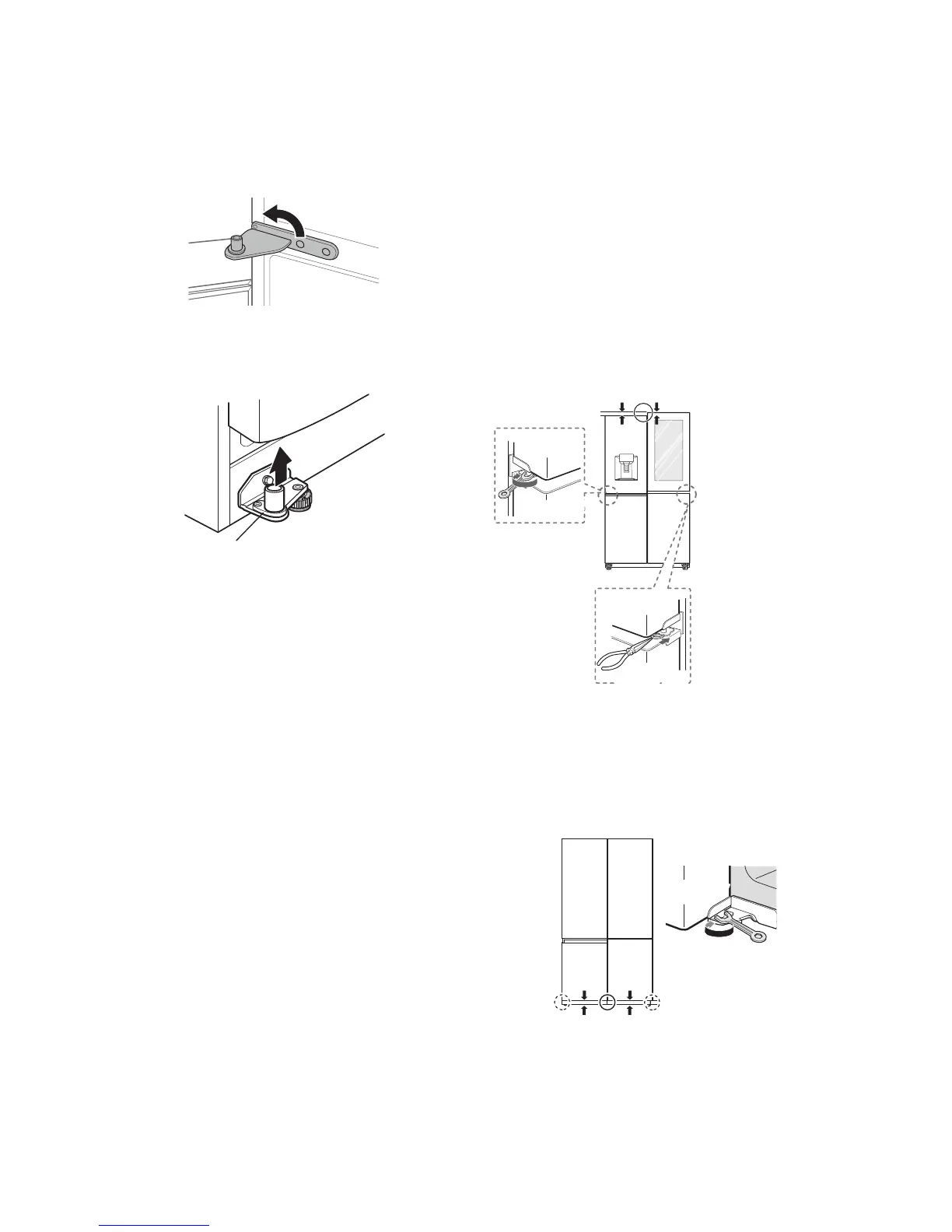

[The Freezer Doors]
1
Remove the two hinge bolts.
EN
2
Twist the hinge to raise the pivoting end so
that the door can be lifted off. Lift the door
off the lower hinge pin and remove it.
3
Remove the door by lifting it off the lower
hinge pin.
Lower Hinge
Refitting the Door
Mount them in the reverse sequence of removal
after the appliance is passed through the
access door.
Adjusting the Height of the
Door
[Fridge Door Height]
Open the fridge door and use the spanner
type1 to rotate the door hinge bolt as shown.
Height difference
Fridge door
Fridge door
Freezer door
Freezer door
[Freezer Door Height]
[Method1]
Open the freezer door and use the spanner
type1 to rotate the door hinge bolt as shown.
Height difference
Freezer door
