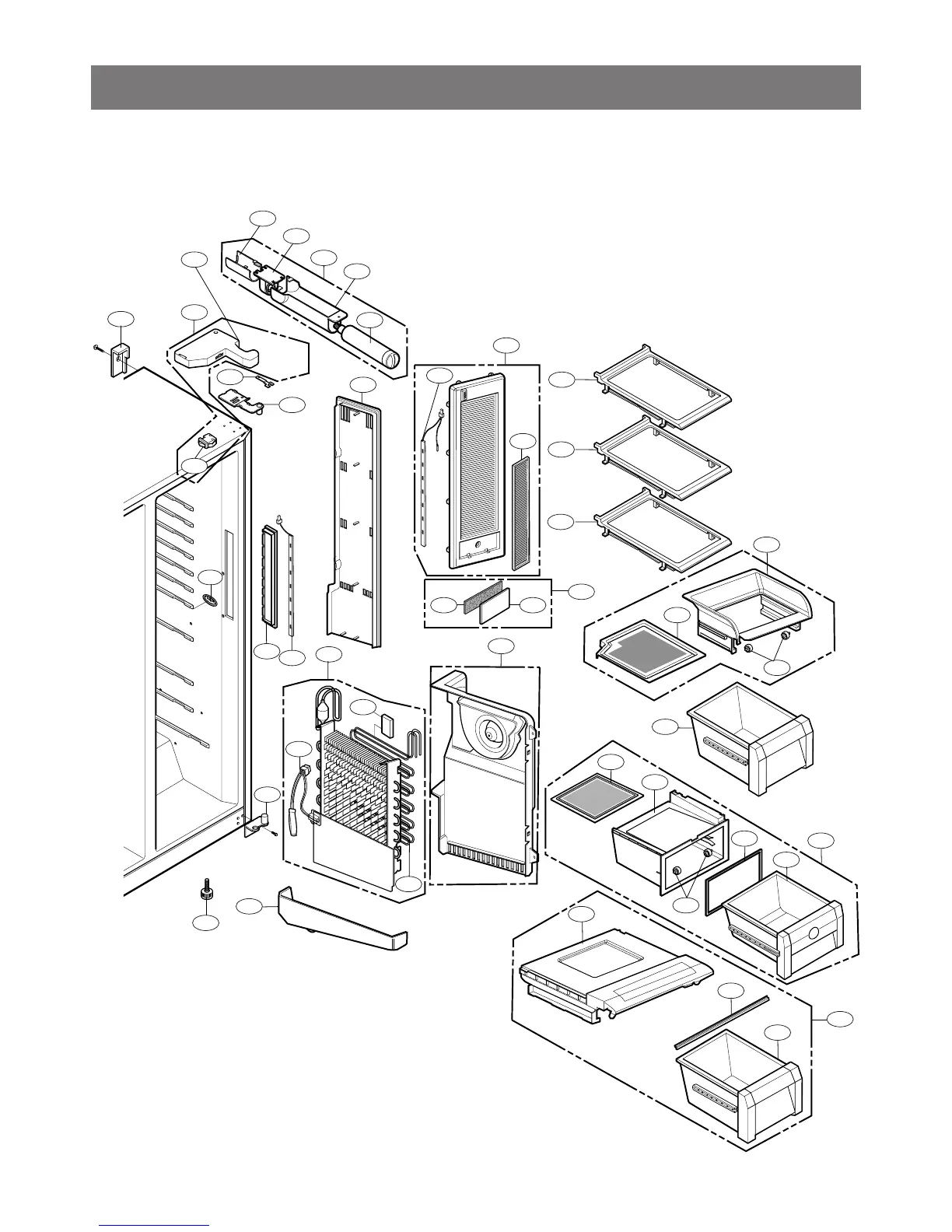

EXPLODED VIEW
REFRIGERA
T
OR COMP
ARTMENT : GR-P247C / GR-L247C
624D
624B
624E
624C
624A
270D
270B
101B
271C
135E
135F
302C
316B
400A
272B
408A
504A
164D
163F
167A
165B
165C
163G
163A
163
I
165A
164D
163H
166A
140A
150A
140A
135K
154E
154D
140A
154C
168A
312B
103A
402A
152A
271B
135H
135C
135G
