12

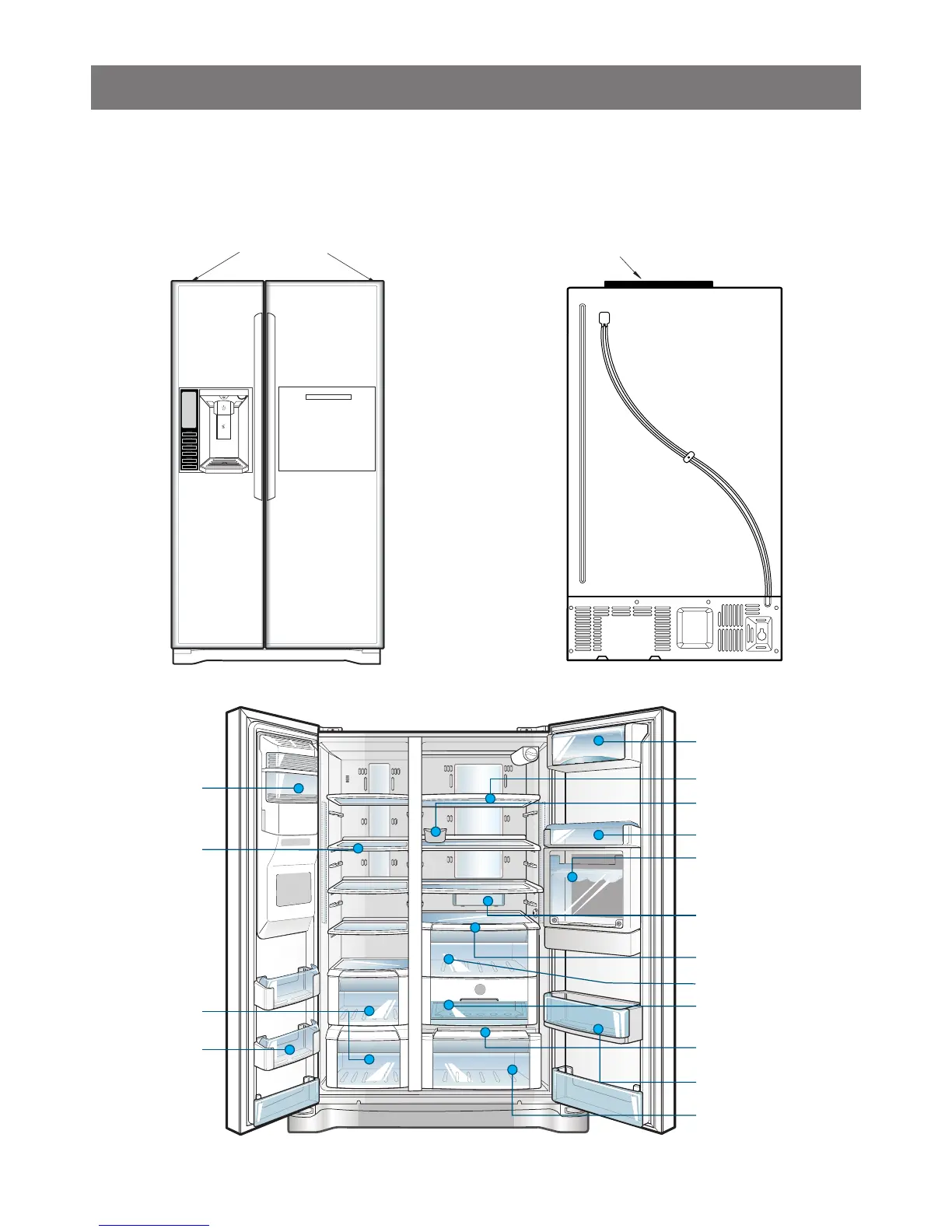

Appearance Size of Refrigerator and Name of Every Part
Appearance Size of Refrigerator and Name of Every Part
2.
Major Name
MODEL : GR-P247C
Cover Hinge
Cover PWB
Door Ice-maker
Oil Product Corner
R-Room Shelf
Mobile Egg Vessel
R-Room Basket
R-Room Home Bar
Fresh Vegetable Room Cover
Fresh Vegetable Room
Vacuum Shielding Type
of Vegetable Room
Fresh Vegetable Room Cover
R-Room Basket
Fresh Vegetable Room
Nano Hardwood Charcoal
Deodorization
F-Room Shelf
F-Room Drawer
F-Room Basket
