48
Is it displayed under picture?
Reconnect

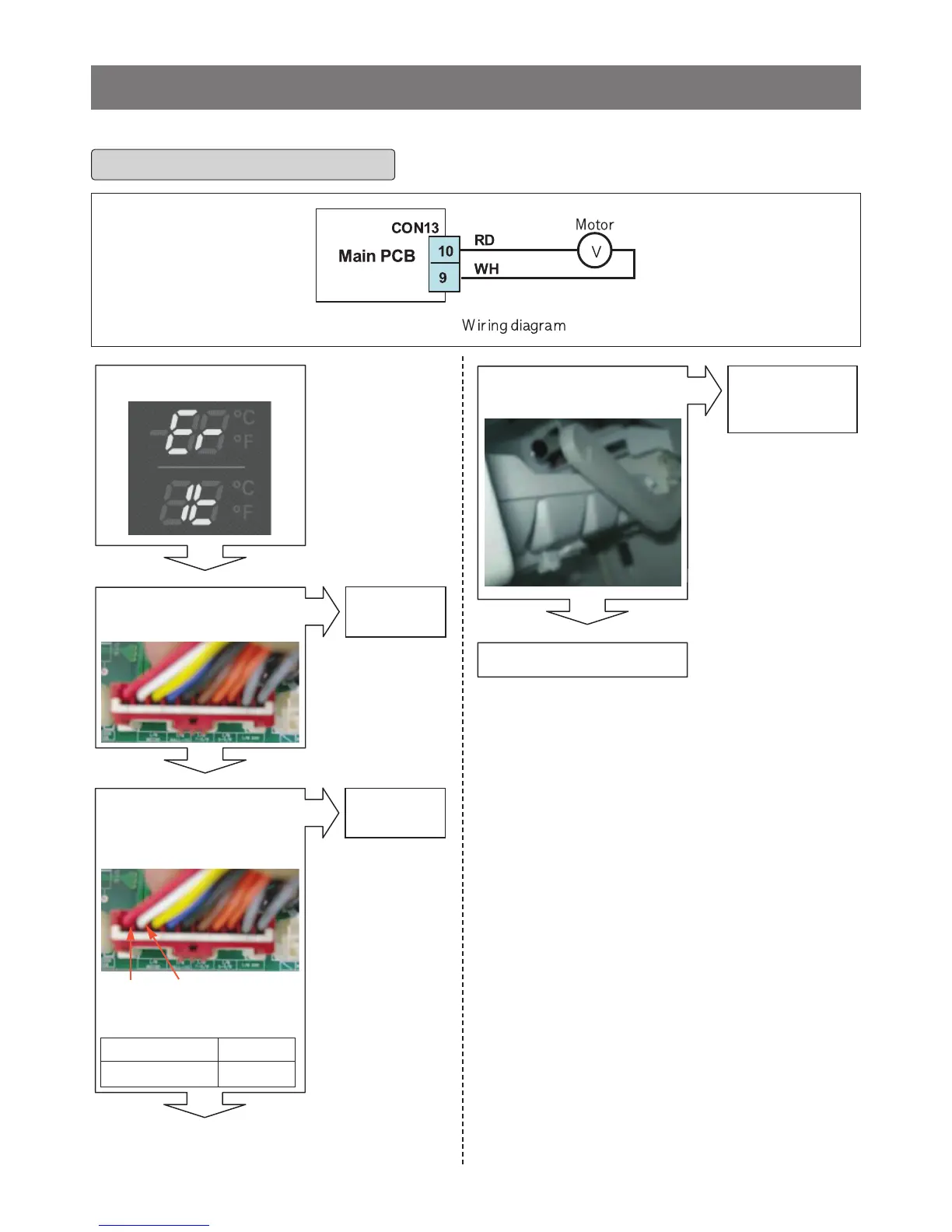

Inspection Ice Maker
module part in freezer room.
Replace
ICE Maker Unit
Yes
No
Yes
Is the connection loose?
(CON13)
Yes
Replace the
Main PCB
Is the voltage between
pins 9 and pin 10 of
CON13 5V ~ 12V?
NO
Ex plain to the customer!
Pin9 To Pin10
Test Point
5 - 12 V
Result
Motor Receiver Vol tages
No
Yes
Ice Maker KIT Error
Pin10
Pin9
47
49
