Appearance Size of Refrigerator and Name of Every Part
1. Appearance Size of Refrigerator
Chapter 4 Appearance Size of Refrigerator and Name of Every Part
ltem
Width
Depth
Height
Minimum air
circulation
space
Model
Model
Width(A)
When opening door by 90
°
(including handle) (B)
Case (including back handle) (C)
After disassembling door (including hinge, L) (D)
Including door (not including handle) (E)
Including handle (F)
When opening door by 90
°
(G)
Cabinet (H)
Including cover PWB (J)
Including door (K)
Top part
Side
Rear part
GR-P247C / GR-L247C
910
1126
615
638
715
788
1156.5
1750
1784
1785
300↑
20↑
50↑
(Unit : mm)

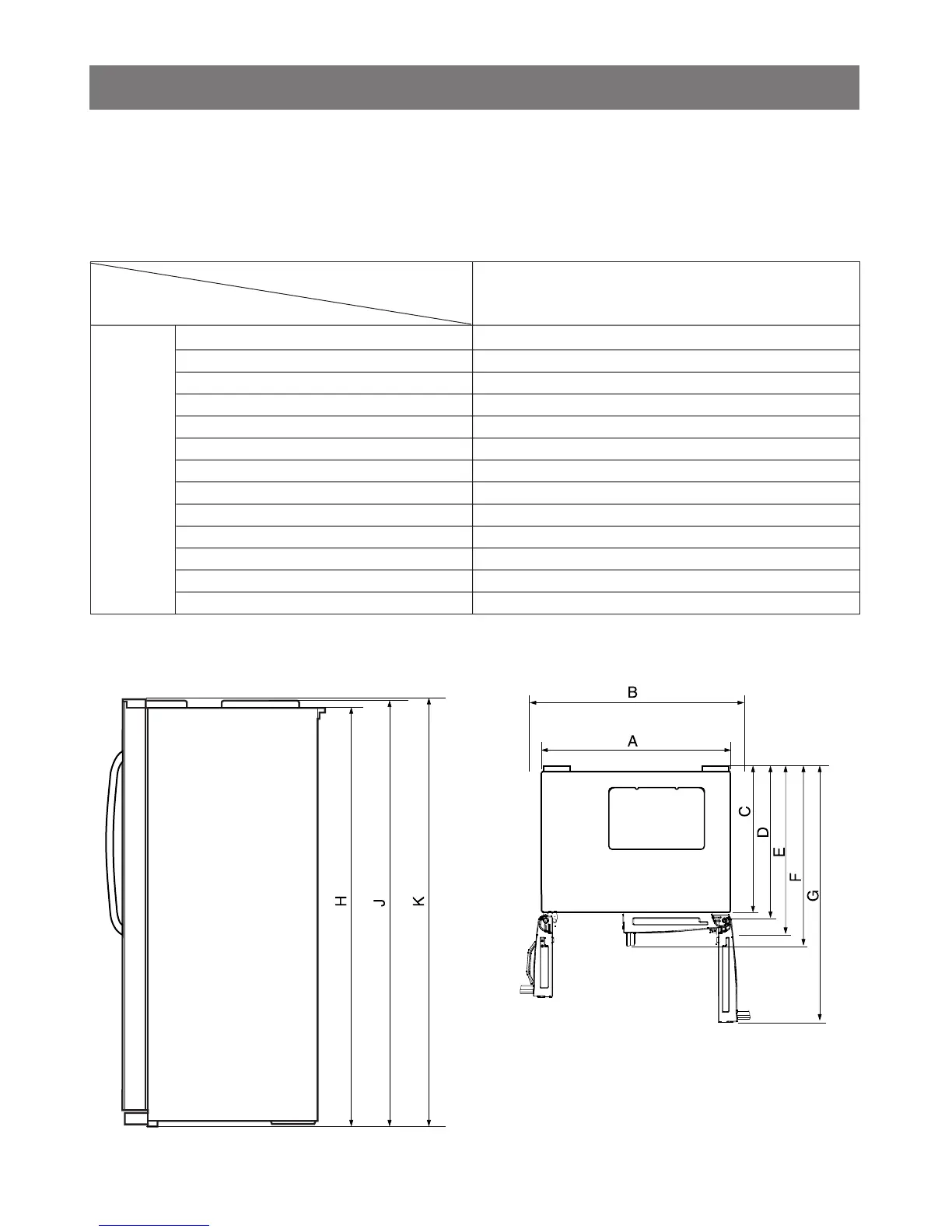

Front View
Plane View
To Next Page
