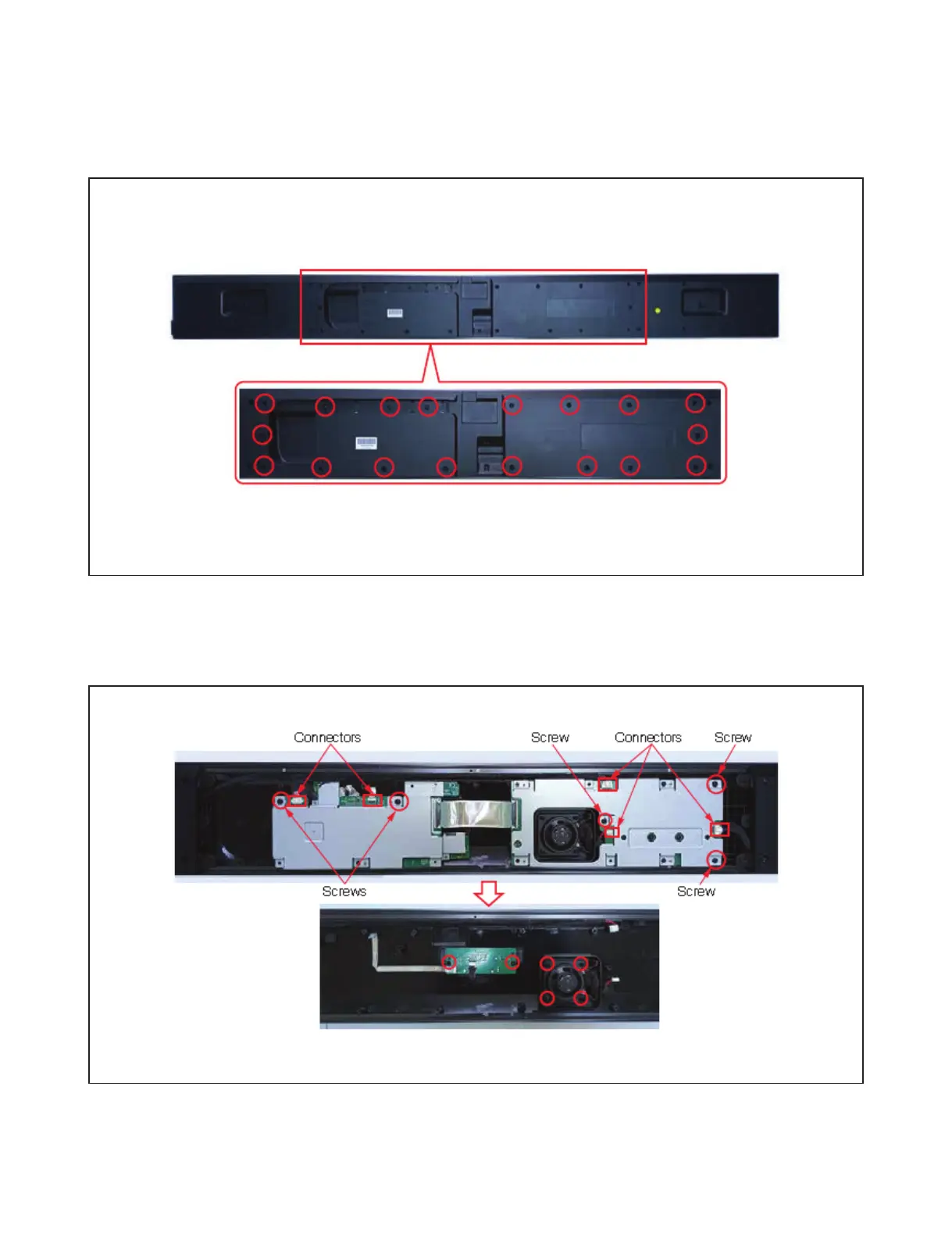

HOW TO DISASSEMBLE THE MAIN UNIT
1) Remove the 18 screws. (1SZZR-0097X)
2) Pull out the Rear Panel Assembly.
1) Remove the 2 screws. (1SZZR-0098A)
2) Disconnect the 2 Hanes cable.
1) Remove the 2 screws. (1SZZR-0098A)
2) Disconnect the FFC cable.
3) Remove the Front PCB
1) Remove the 3 screws. (1SZZR-0098A)
2)disconnect the 3 SPK cable.
1) Remove the 4 screws. (1SZZR-0098H)
2) Disconnect the SPK cable and Pull out the SPK.
