Connecting12
Connecting
2
Connections to Your
TV
Make one of the following connections, depending
on the capabilities of your existing equipment.
y
Depending on your TV and other
equipment you wish to connect, there are
various ways you could connect the player.
Use only one of the connections described
in this manual.
y
Please refer to the manuals of your TV,
Stereo System or other devices as necessary
to make the best connections.
,
Note
y
Make sure the unit is connected directly
to the TV. Tune the TV to the correct video
input channel
y
Do not connect your player via your VCR.
The image could be distorted by the copy
protection system.
>
Caution

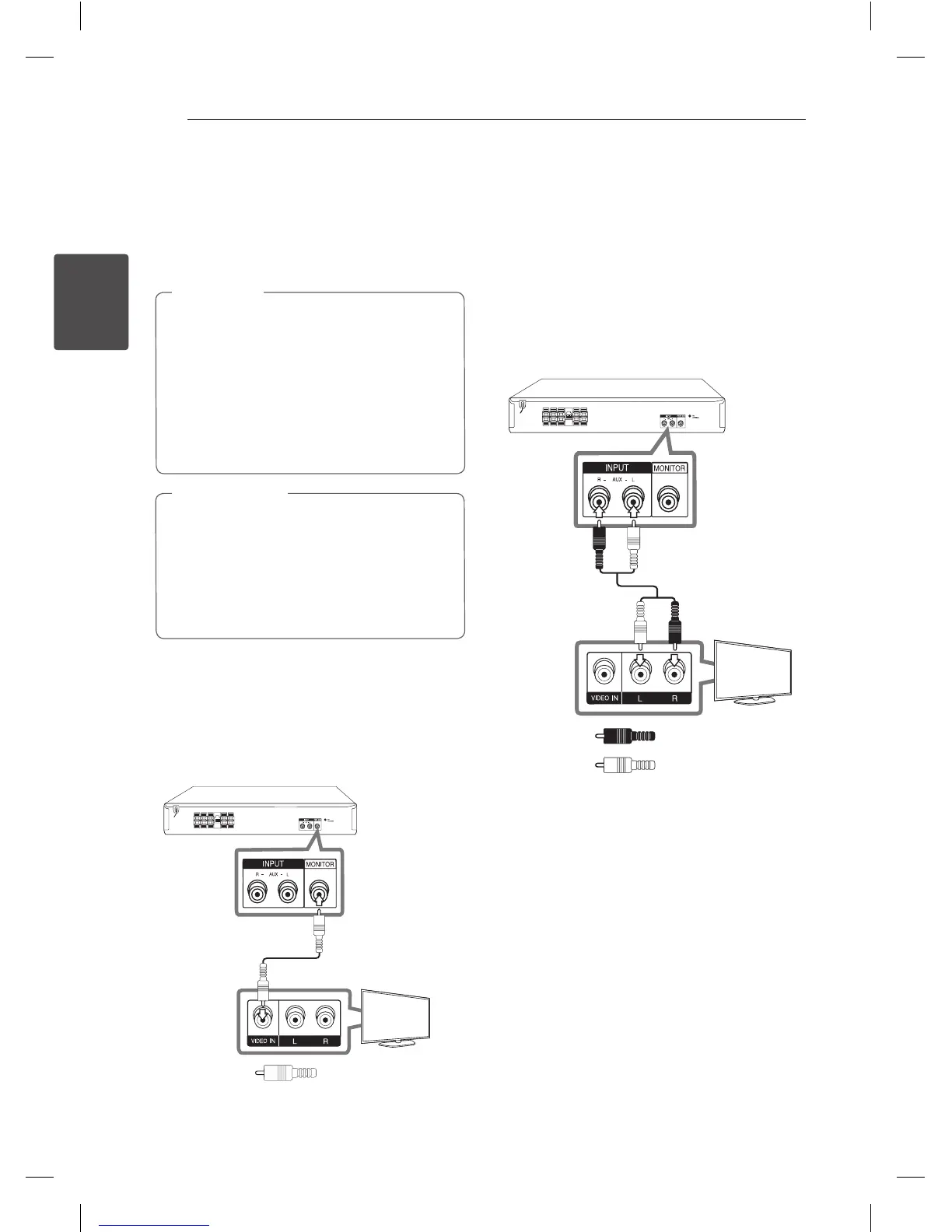

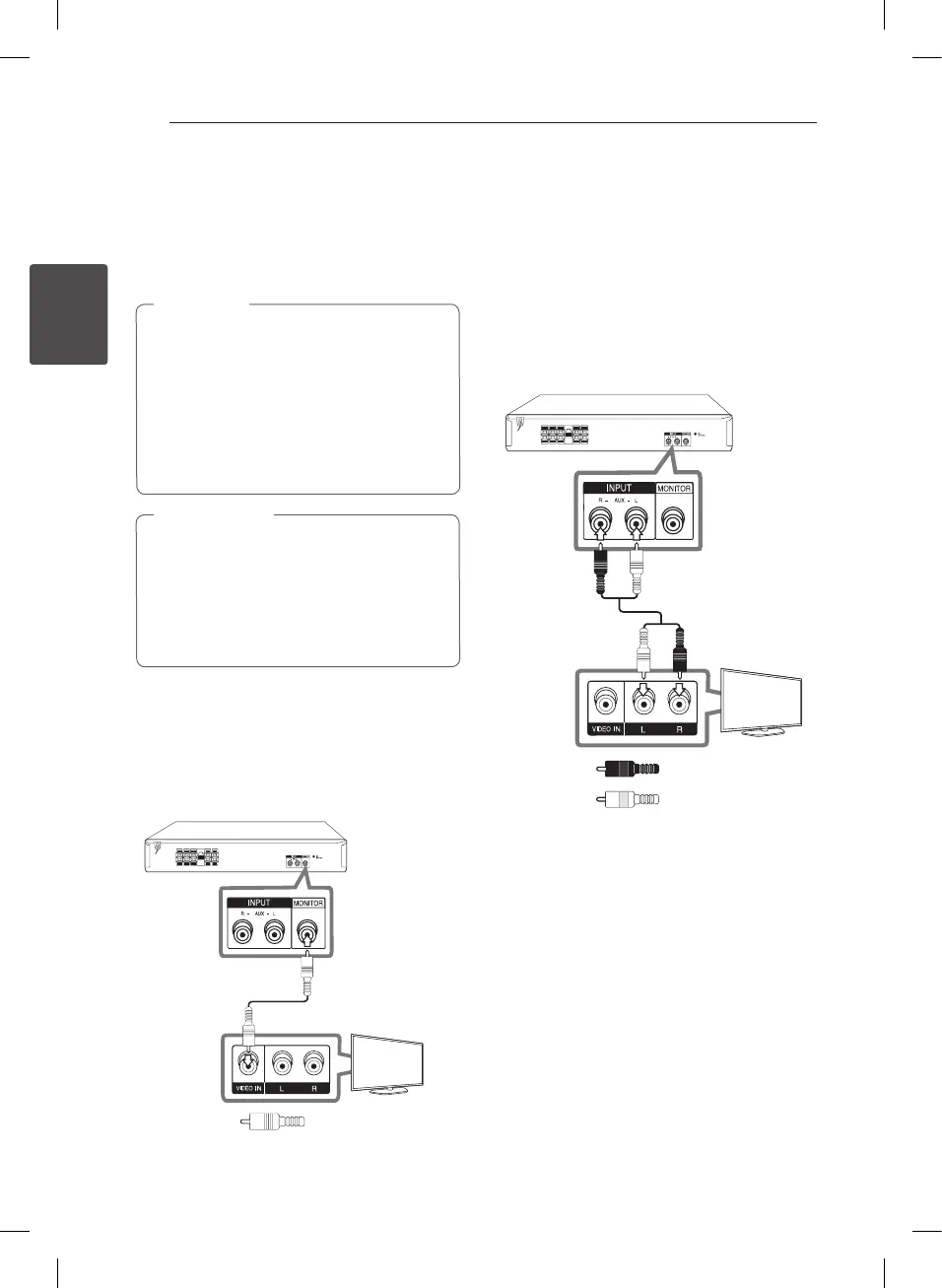

Video Connection
Connect the MONITOR jack on the unit to the video
in jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
Optional Equipment
Connection
AUX IN Connection
Connect an Output of auxiliary device to the AUX
(L/R) INPUT Connector.
If your TV has only one output for audio (mono),
connect it to the left (white) audio jack on the unit.
White
Red
Yellow
