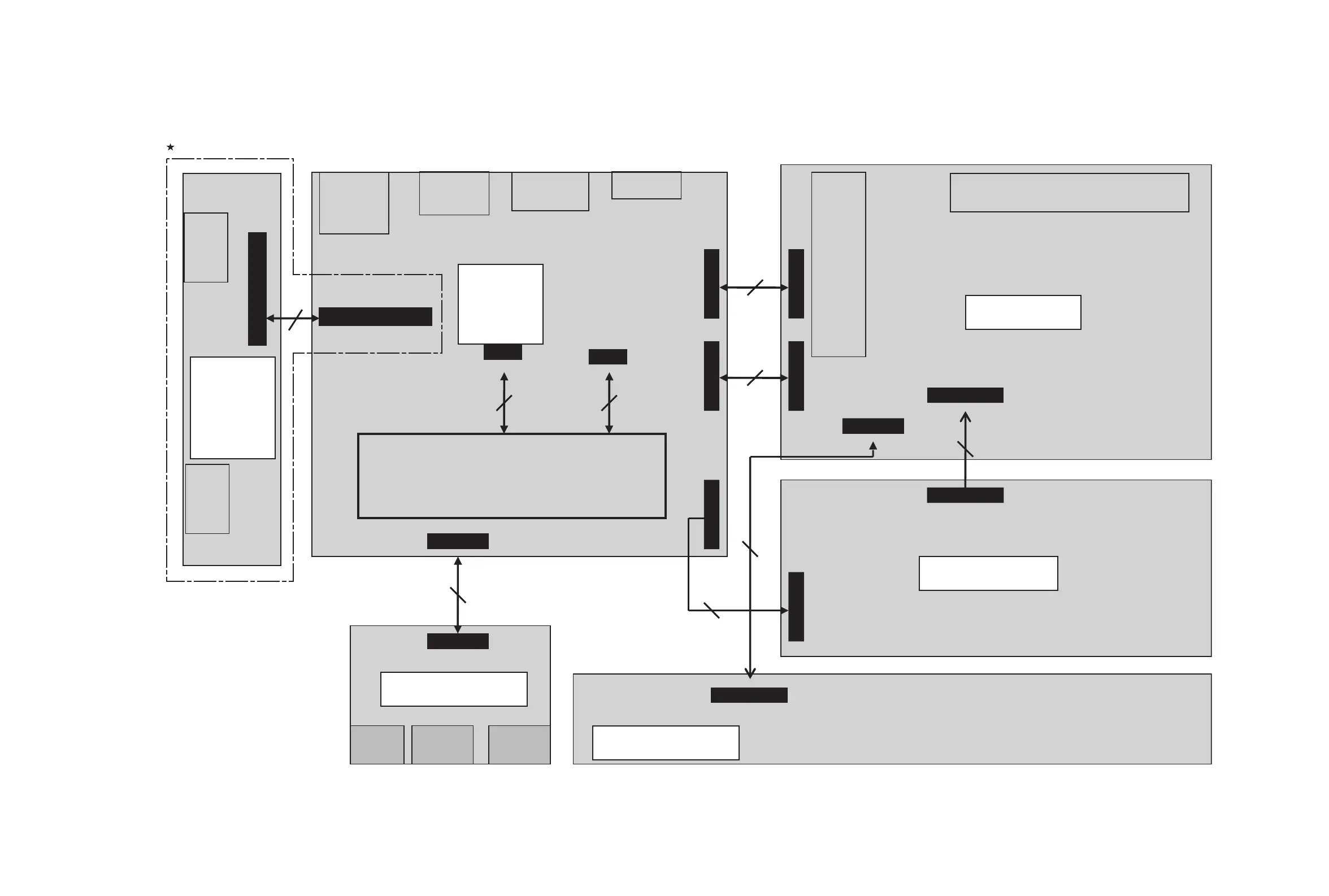

WIRING DIAGRAM
VIDEO
JACK
23P
15P
PN206
AMP PCB
5.1 CH SPK TERMINAL
AUX
JACK
TUNER
MODULE
MD
DVD
MAIN
PCB
FRONT PCB
SMPS PCB
Optical
JACK
9P
24P
CABLE
1
18P
CABLE
3
14P
MIC USB PTB
11P
CABLE
5
SCART
USB PCB
60P
CABLE4
HDMI
IN
&
OUT
HDMI
JACK
HDMI
JACK
24P
CABLE
2
CN805
CN503
P400
P401
PN204
PN202
PN301
CN902
CN602
PN103
PN206
PN202
PN601 PN602
PN203
2008. 01. 26
CN901
TU101
OPTIONAL PART
