4-4

Only for training and service purposes

LGE Internal Use Only

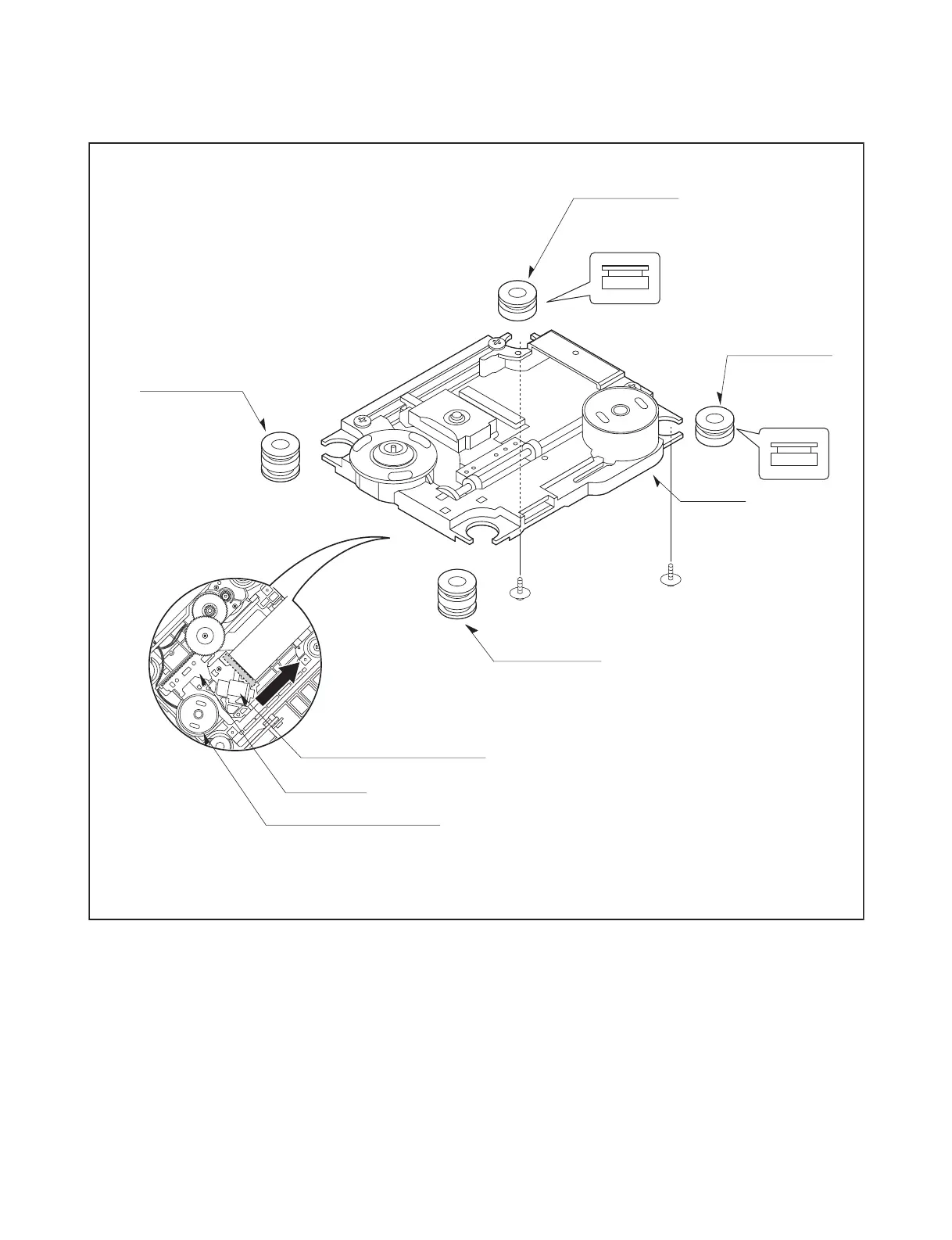

3. Base Assembly Sled (Fig. 4-3)

1) Release 4 Screw(S2).

2) Disconnect the FFC Connector(C1)

3-1. Gear Feed

3-2. Gear Middle

3-3. Gear Rack

1) Release the Scerw(S3)

4. Rubber Rear (Fig. 4-3)

BASE PU

RUBBER DAMPER

Distinguish upper and

lower sides

(Assemble with care)

Distinguish upper and

lower sides

(Assemble with care)

RUBBER DAMPER

GEAR RACK

GENERAL PICK UP ASSEMBLY

SPINDLE MOTOR ASSEMBLY

Fig. 4-3

(S2)
