LG HT552TH - Page 46

3-19

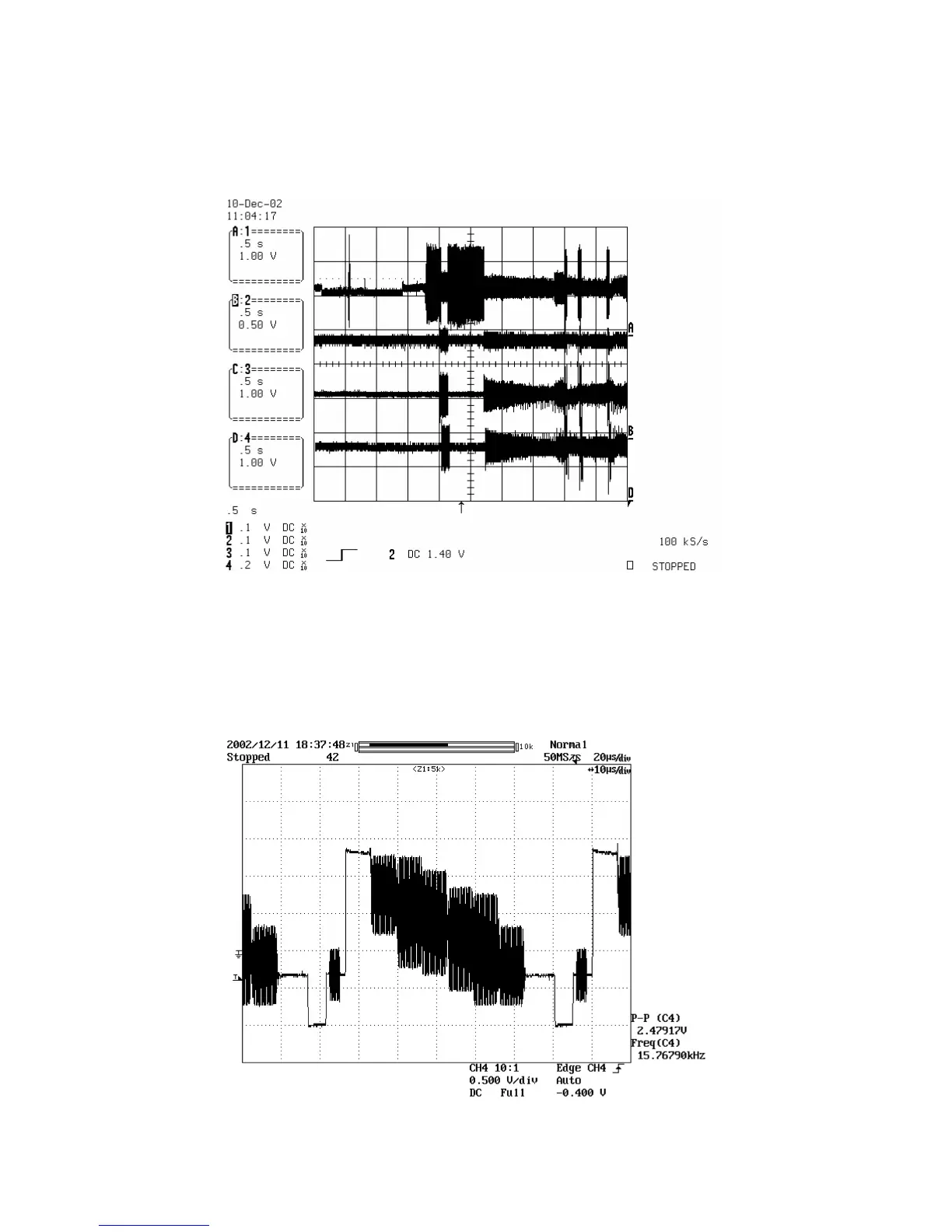

CD_DVDCT(IC501 PIN 169)
TRO(IC501 PIN 210)
TR-(IC401 PIN 12)
TR+(IC401 PIN 11)
FIG 10-2(CD)
11. ES6698FD VIDEO OUTPUT WAVEFORMS
1) Full colorbar signal(COMPOSIT)
(IC501 PIN 134)
FIG 11-1
