3-20

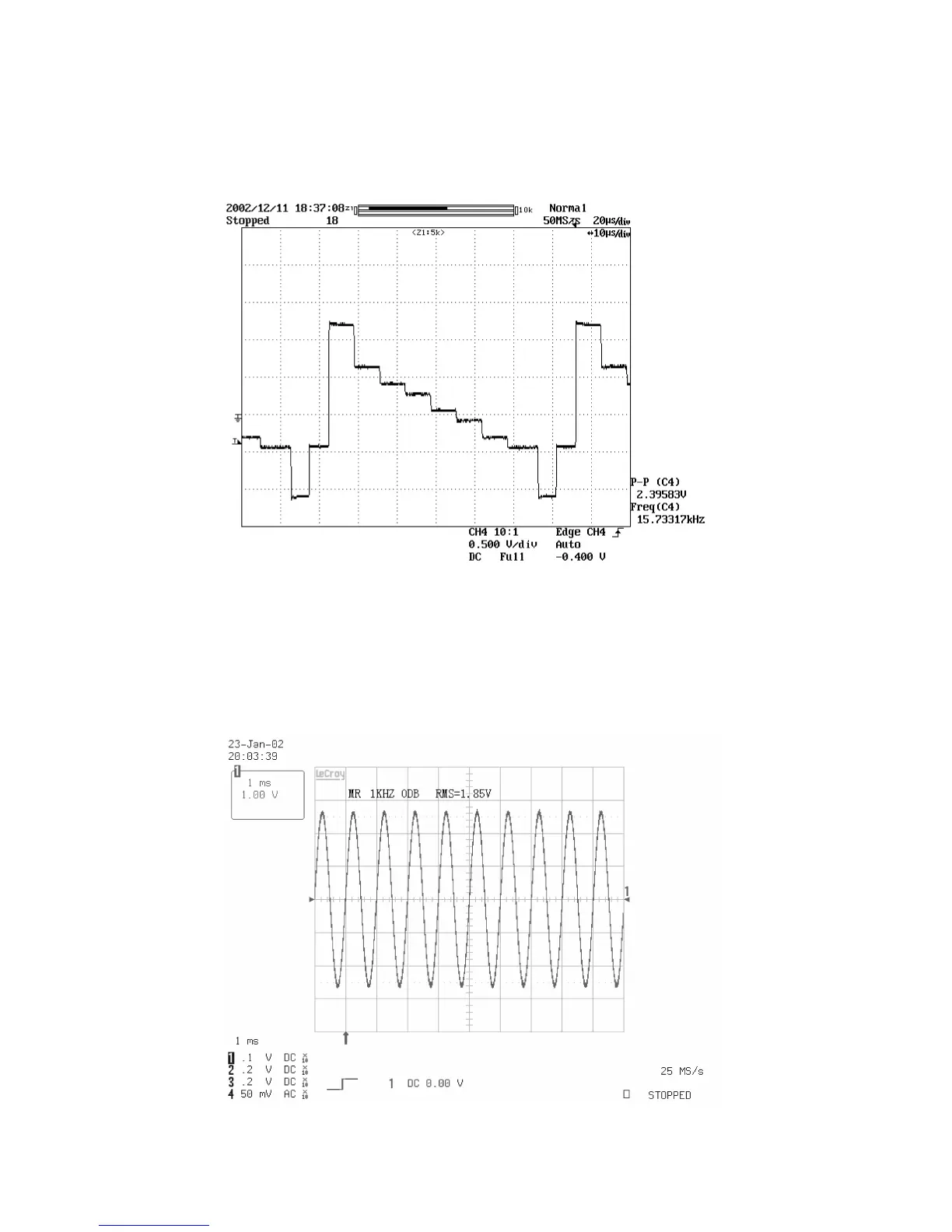

2) Y
(IC501 PIN 140)
FIG 11-2
1) Audio L/R
FIG 12-1
12. AUDIO OUTPUT FROM PWM IC
(IC602 PIN 1, 7)
