Setting up
Connect the black end of each wire to
the terminals marked -(minus) and the
other end to the terminals marked +
(plus).
cc
Connect the wires to the speakers.
Connect the other end of each wire to the correct speaker according to
the colour coding
:
To connect the cable to the speakers, press each plastic finger pad to open the
connection terminals on the base of each speaker. Insert the wire and release
the finger pad.
Be careful of the following
• Be careful to make sure children do not put their hands or any objects into
the *speaker duct.
*Speaker duct: A holl for plentiful bass sound on speaker cabinet(enclosure).
• Use the rear speaker at least 30 CM away from either TV screen or PC
monitor
Attaching the speakers to the DVD receiver
aa
You will have received six speaker cables.
Each one is colour-coded by a band near each end and connects one of
the six speakers to the DVD receiver.
bb
Connect the wires to the DVD receiver.
Match each wire’s coloured band to the same coloured connection
terminal on the rear of the DVD receiver. To connect the cable to the DVD
receiver, press each plastic finger pad to open the connection terminal.
Insert the wire and release the finger pad.
1 Attach the speakers to the speaker stands by rotating the screw.
2 If you want to arrange the speaker cable, draw the speaker cable
through the hole on the speaker.
3 Connect the speaker cable.
The speakers are detached from the speaker stands.

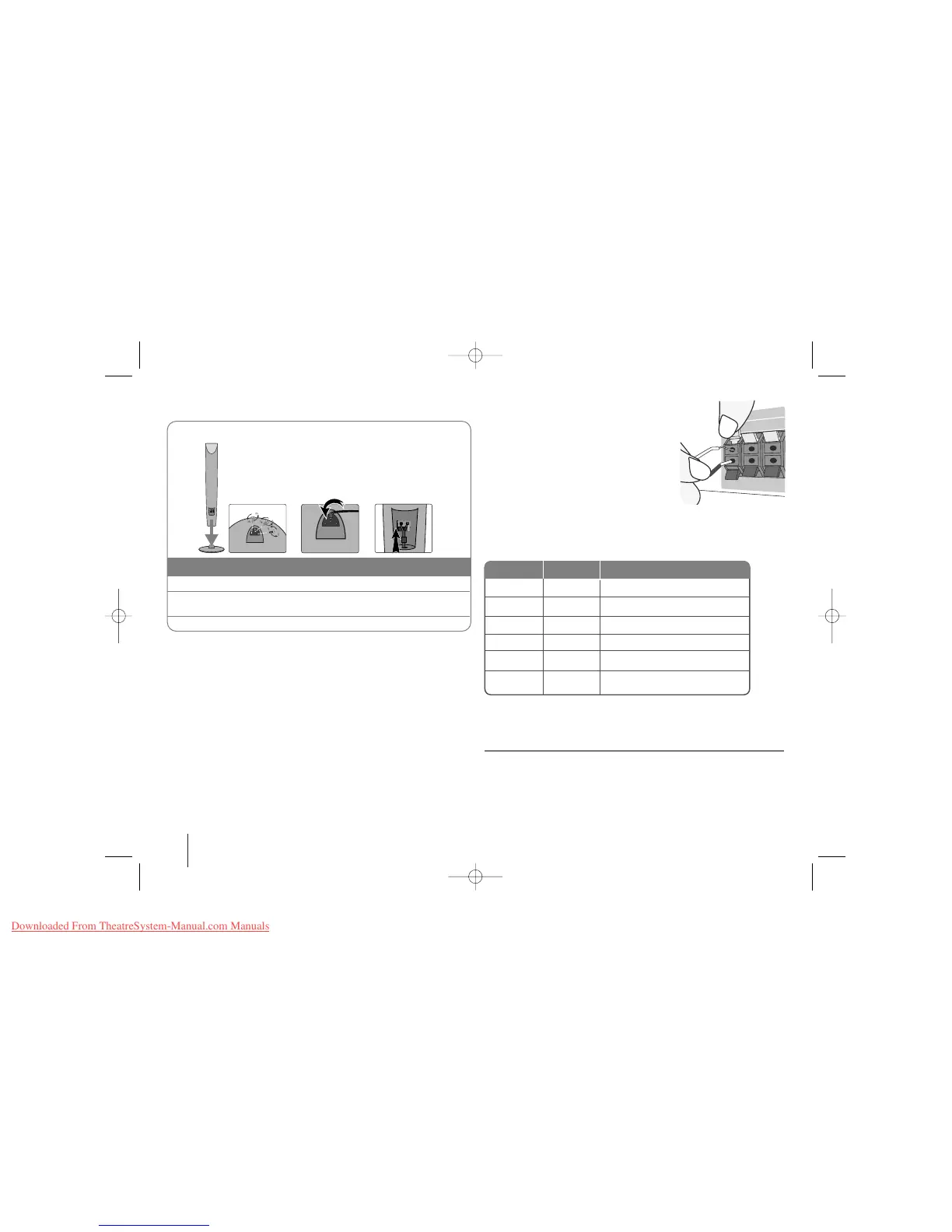

Assembling the Speakers (HT554TH, HT554PH)
aa
bb cc
Grey
Blue
Green
Orange
Red
White
Rear
Rear
Centre
Sub Woofer
Front
Front
Behind you and to your right.
Behind you and to your left.
Above screen, directly in front of you.
This can be placed in any front position.
In front of you, to the right of the screen.
In front of you, to the left of the screen.
POSITION
SPEAKER
COLOUR
