5
Introduction
OPEN/CLOSE button
TUNING(-/+)/SKIP/
SEARCH(
..
/
>>
)
Remote sensor
AUDIO IN connector
VOLUME controller
POWER
DISPLAY Window
DISC Tray
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent
damage to the unit.
USB port
Connect to a USB port of a memory
device (USB memory etc.)
FUNC.(-)/PLAY(B)
Press and hold down this button
about 3 seconds, then press
repeatedly to select other function.
PAUSE (
XX
)/
MONO/STEREO (ST.)
STOP (x)

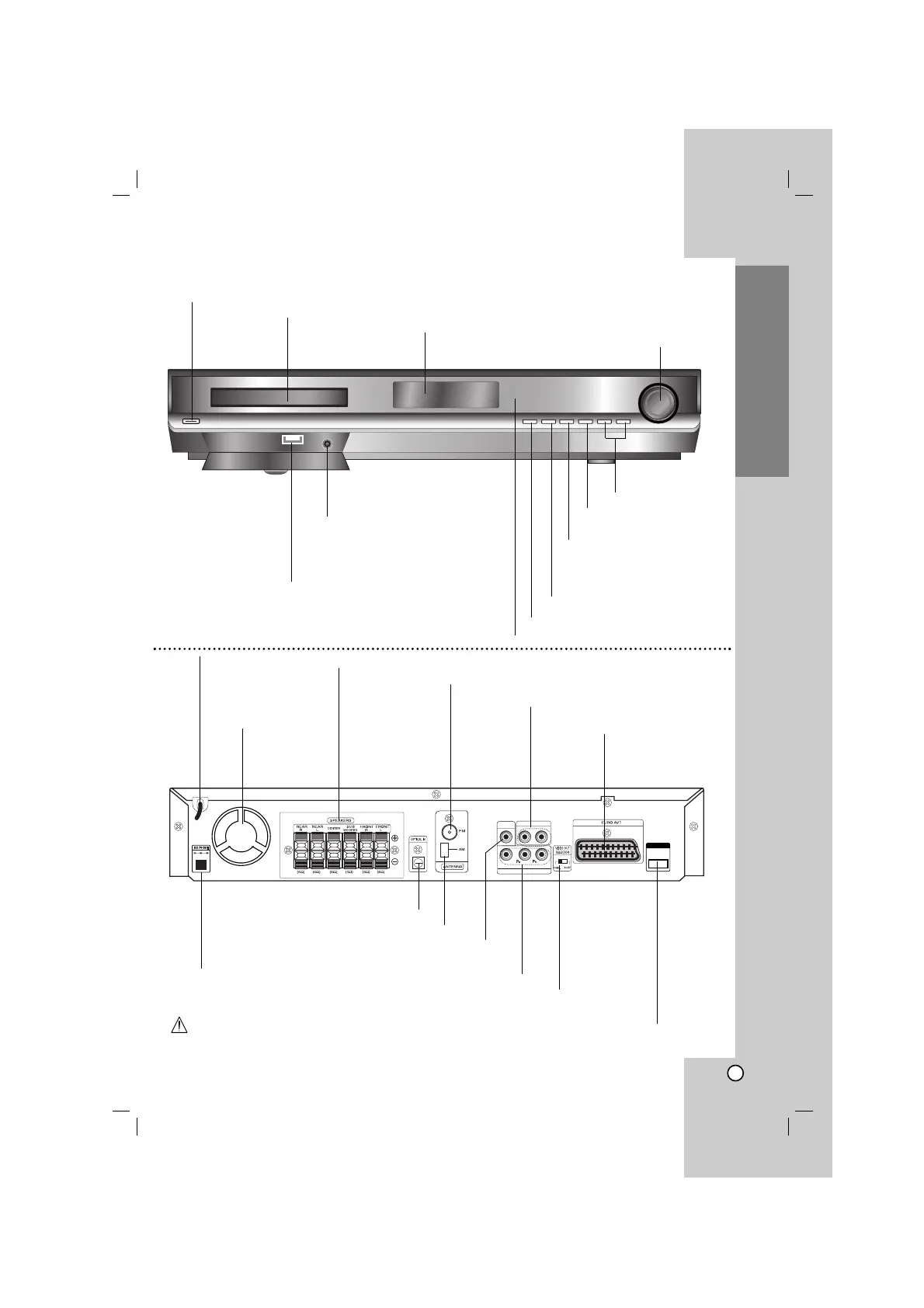

Front Panel/Rear Panel
Wireless
Transmitter (DC 7V
OUT) connector
HDMI OUTHDMI OUT
OUT PUT
INPUT
L - AUX - R
MONITOR
Y
COMPONENT VIDEO (PROGRESSIVE SCAN)
FM Antenna connector
AM Loop Antenna connectors
SPEAKER connectors
Power Cord
MONITOR OUT connector
COMPONENT VIDEO OUT terminals
Connect to a TV with Y PB PR inputs.
OUTPUT (TO TV)
EURO AV socket
Connect to a TV with
SCART jack.
Cooling fan
OPTICAL IN connector
AUX AUDIO Input
(L/R) connector
VIDEO OUT SELECTOR switch
HDMI OUT
HDMI output providing a high quality
interface for digital audio and video.
To Next Page
