LG KU950 - Bluetooth RF Block

4. TROUBLE SHOOTING
- 105 -
4.7 Bluetooth RF Block
TC-3000A (Bluetooth Tester)
1. Set phone to bluetooth test-mode
: Enter Test Mode(7973845#*#) → Module Test Set → BT DUT → BT DUT ON
2. Connect phone to bluetooth tester
3. Set channel to 39
4. Measure output-power
5. Check TP1 : output-power > -6 dBm

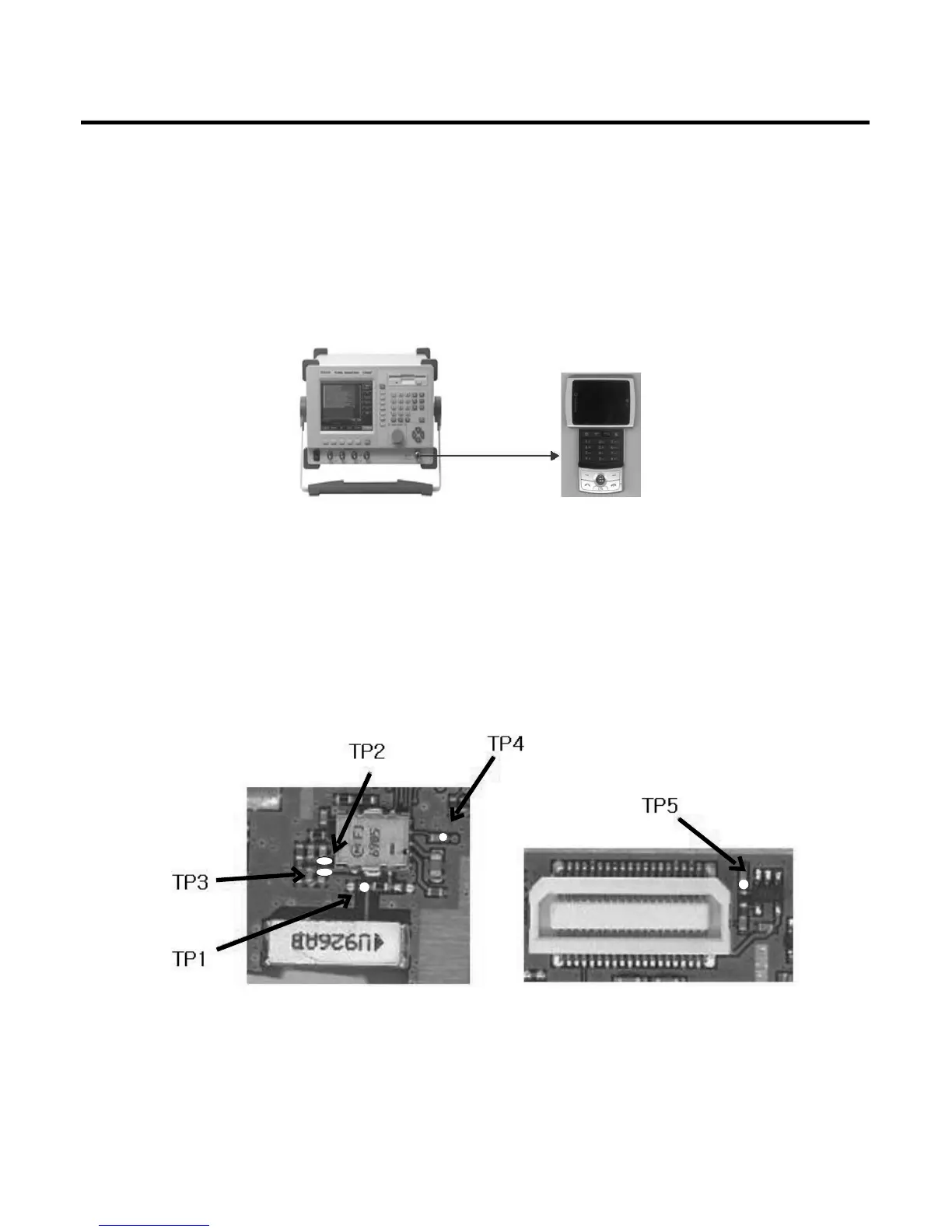

< KU950 Sub Key
Bluetooth Module >
< KU950 Main Board
Bluetooth Buffer >
